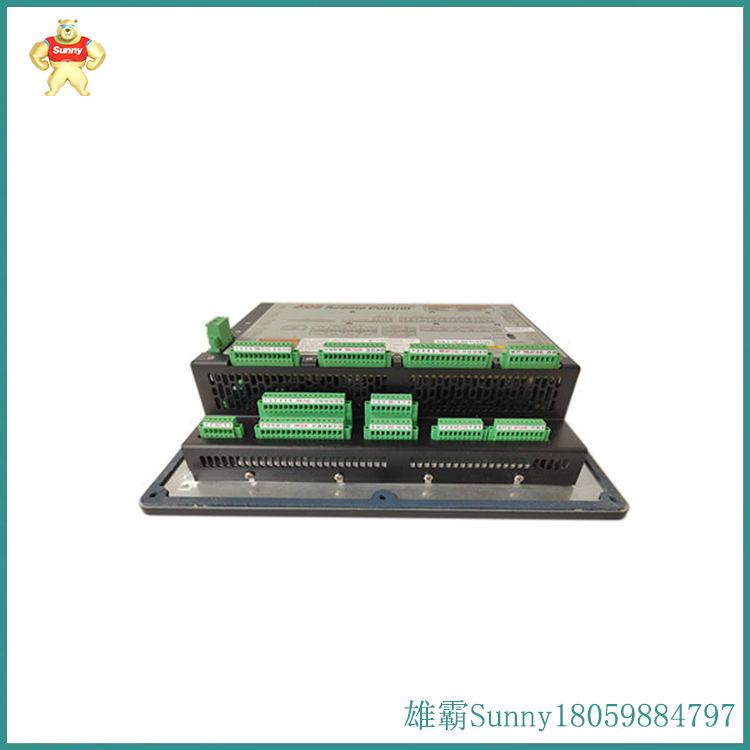

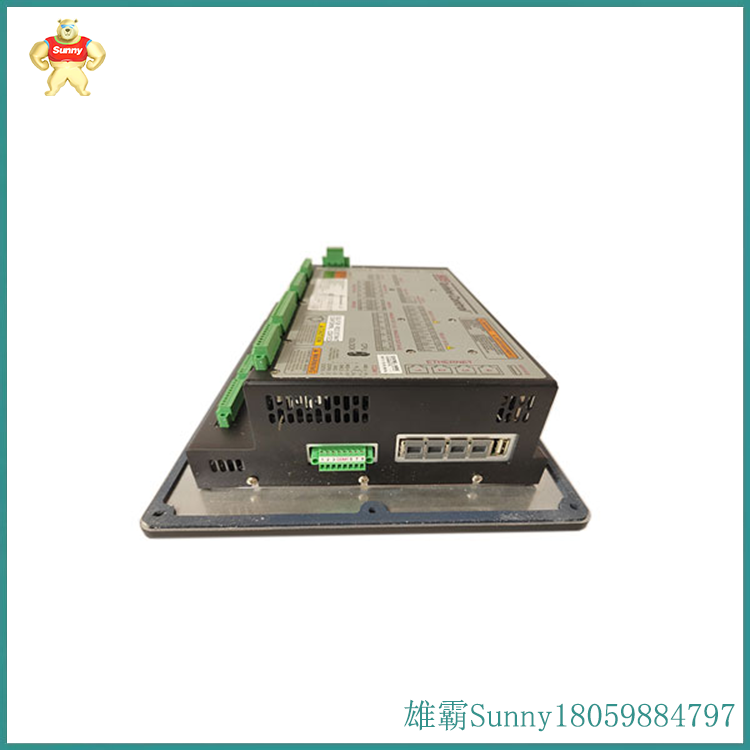

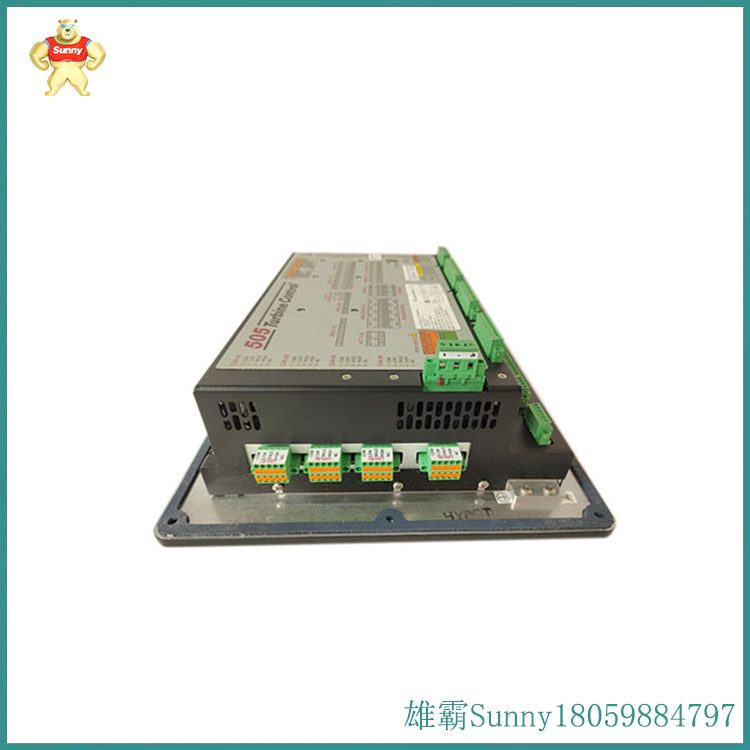

8200-1300 集成的图形前面板 HMI

伍德沃德的 8200-1300 为蒸汽轮机提供数字控制。它是 505 涡轮机控制系列中可用的几种数字调速器之一。本机使用符合标准的 LVDC（18-32 VDC）电源。

该装置可用于非危险场所。它也适用于 I 类 2 区 A/B/C/D 组位置。该装置通常安装有额定温度至少为 75 摄氏度的绞合铜现场布线。

8200-1300 可以控制单或双分式执行器蒸汽轮机。它可以配置为工厂DCS（分布式控制系统）的一部分，也可以用作独立单元。它设计有五个 PID 控制器，包括一个速度/负载 PID 控制器、一个级联 PID 控制器以及 AUX1 和 AUX2 PID 控制器。该装置提供带图形控制面板显示屏和键盘的操作员控制面板。该面板包括一个紧急停止按钮、开始、停止、ESC 和主页按钮、一个数字键盘、向上/向下切换按钮以及带有上/下和左/右按钮的回车键。该面板左侧还有四个 LED，包括 CPU 运行状况、IO 锁定、摘要警报和摘要跳闸。

在内部，8200-1300包括一个看门狗定时器和一个CPU故障电路，用于监控微处理器及其存储器的运行。

Woodward's 8200-1300 provides digital control for steam turbines. It is one of several digital governors available in the 505 turbine control series. This machine uses a standard LVDC (18-32 VDC) power supply.

This device can be used in non hazardous locations. It is also applicable to Class I, Zone 2, Group A/B/C/D locations. This device is typically installed with stranded copper field wiring with a rated temperature of at least 75 degrees Celsius.

The 8200-1300 can control single or dual actuator steam turbines. It can be configured as part of the factory DCS (Distributed Control System) or used as a standalone unit. It is designed with five PID controllers, including a speed/load PID controller, a cascaded PID controller, and AUX1 and AUX2 PID controllers. This device provides an operator control panel with a graphical control panel display screen and keyboard. This panel includes an emergency stop button, start, stop, ESC, and home buttons, a numeric keyboard, up/down toggle buttons, and an enter key with up/down and left/right buttons. There are also four LEDs on the left side of the panel, including CPU health, IO lock, summary alarm, and summary trip.

Internally, the 8200-1300 includes a watchdog timer and a CPU fault circuit to monitor the operation of the microprocessor and its memory.
