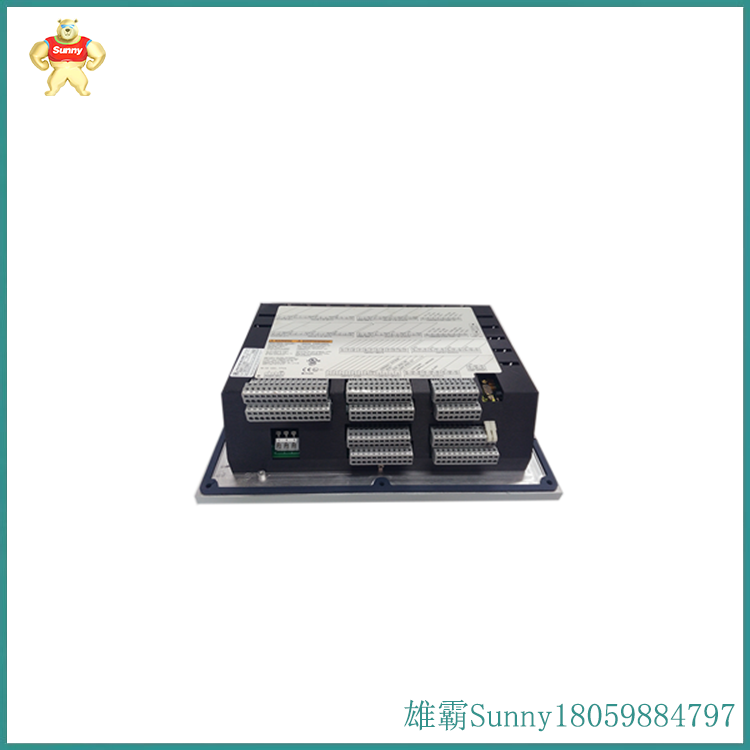

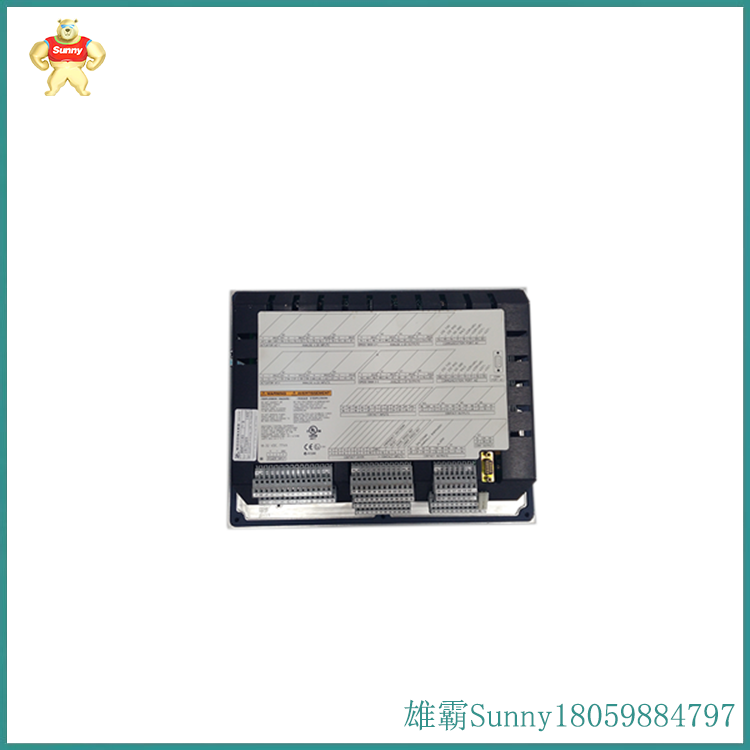

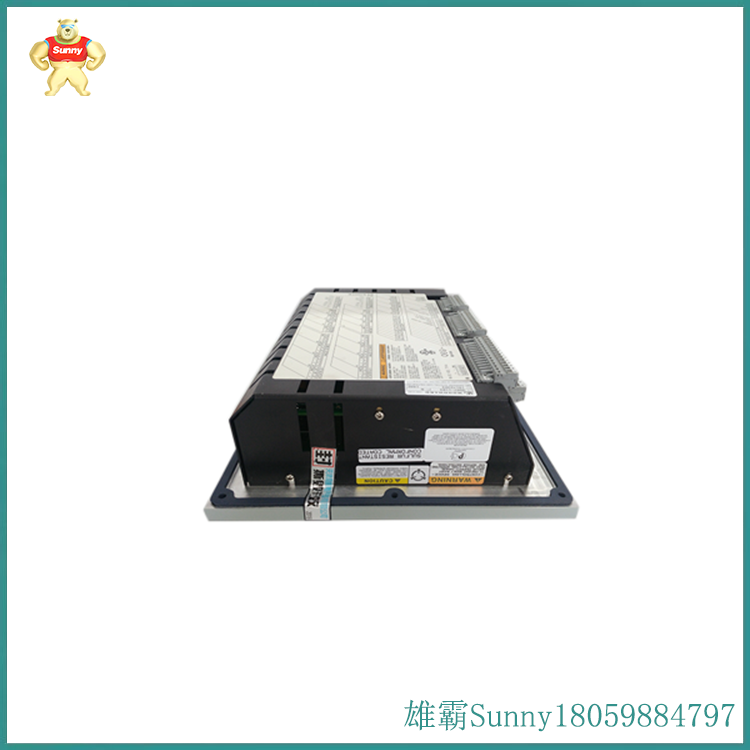

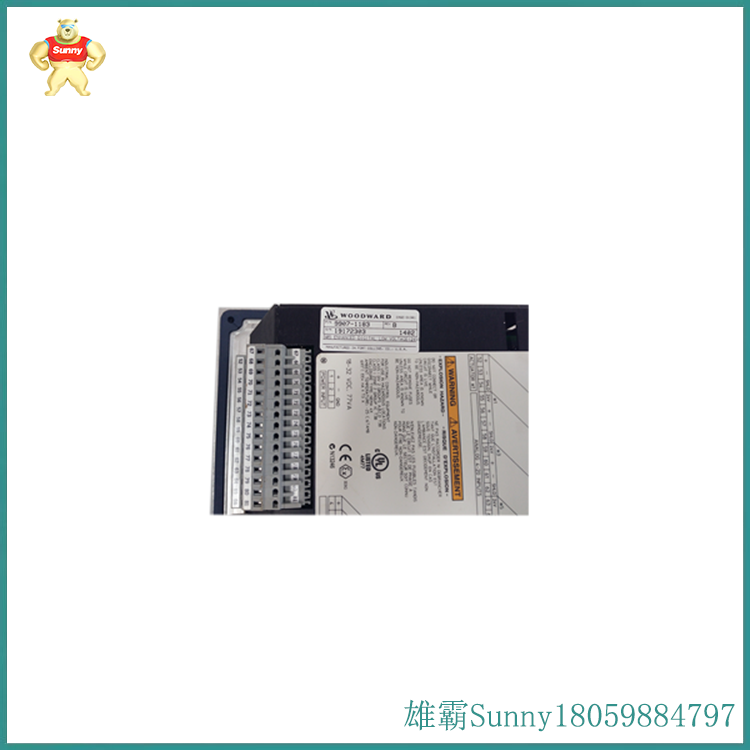

WOODWARD 9907-1183  控制器

伍德沃德的 9907-1183 人机界面可以配备 NEMA 4X 级保护外壳。虽然外壳是可选的，但建议使用它，因为它能够有效地保护机电组件免受任何永久性损坏。外壳防水、防尘，适用于恶劣的户外条件。

9907-1183 型号配备 32 位微控制器，可控制各种涡轮机，例如工业尺寸的标准蒸汽轮机、多功能涡轮发电机和透平膨胀机型号。 它能够配置为独立设备，也可以与工业工厂的DCS（分布式控制系统）协同运行。505E 控制器设计用于操作大多数蒸汽轮机系统的抽气和/或进气。

该伍德沃德 HMI 具有 PID 结构，非常适合需要监测和控制涡轮机速度、负载、入口压力、排气集管压力或提取/入场集管压力等参数的应用。通过 4–20 mA 传感器和 PID 以及比率/限幅器功能，9907-1183 可精确控制抽出/进料，同时防止涡轮机超出其参数运行。

Woodward's 9907-1183 human-machine interface can be equipped with a NEMA 4X level protective casing. Although the casing is optional, it is recommended to use it as it effectively protects the electromechanical components from any permanent damage. The shell is waterproof and dustproof, suitable for harsh outdoor conditions.

The 9907-1183 model is equipped with a 32-bit microcontroller that can control various turbines, such as industrial sized standard steam turbines, multi-functional turbine generators, and turbine expander models. It can be configured as an independent device and can also operate in collaboration with the DCS (Distributed Control System) of industrial factories. The 505E controller is designed to operate the extraction and/or intake of most steam turbine systems.

The Woodward HMI has a PID structure and is very suitable for applications that require monitoring and controlling parameters such as turbine speed, load, inlet pressure, exhaust header pressure, or extraction/entry header pressure. Through the 4-20 mA sensor and PID, as well as ratio/limiter functions, the 9907-1183 can accurately control extraction/feeding while preventing the turbine from operating beyond its parameters.
