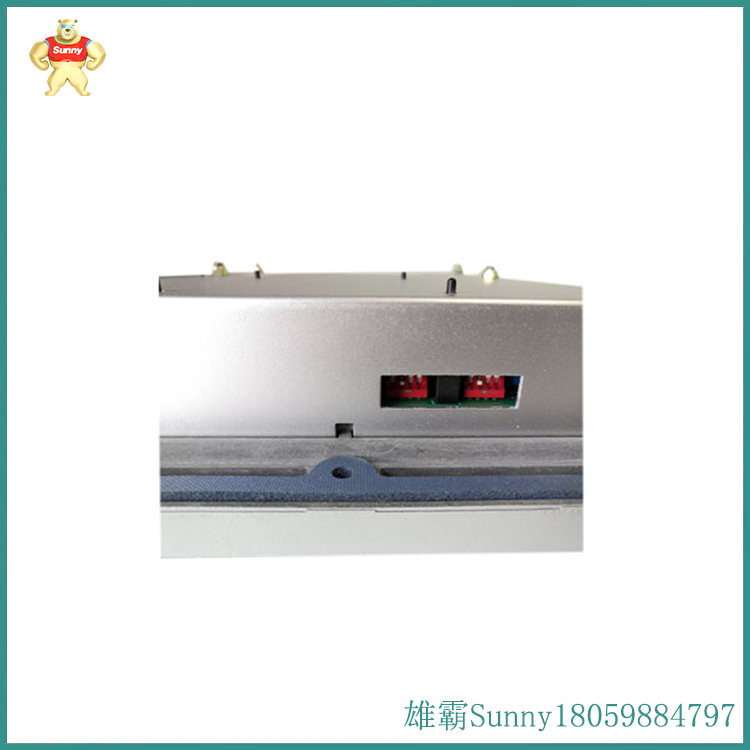

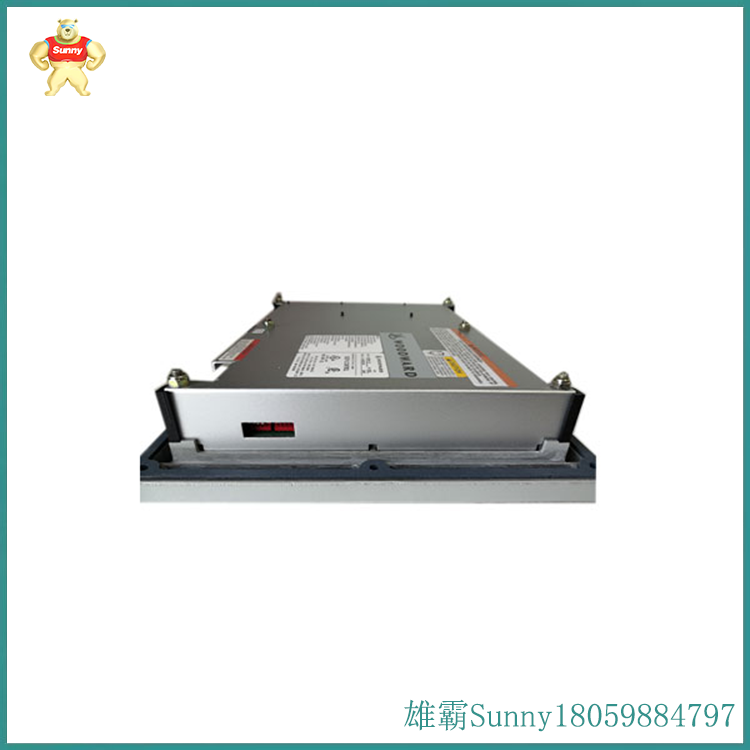

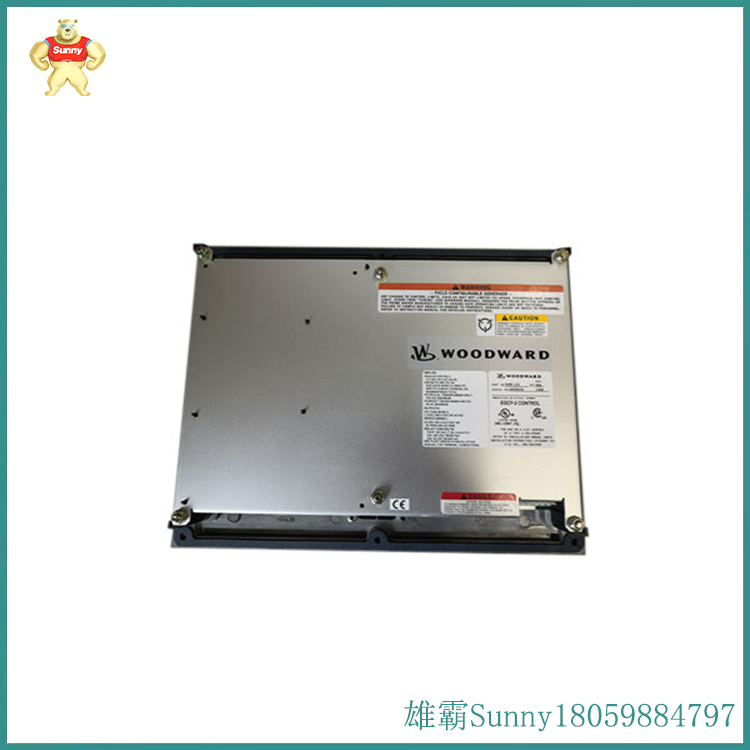

WOODWARD 8406-121 发电机控制

8406-121型是伍德沃德基于EGCP- 2微处理器的完整发电机控制和发动机管理包之一， 用于自动化和保护基于燃气或柴油发动机的发电机组。

8406-121的特性包括:

发动机控制

发电机组同步

实际(kW)负载控制

无功(无功)控制

自动发电机排序(多台机组)

Gen-Set保护功能

发动机保护功能

通信- PC接口(通信功能的完整细节可在线在通信手册26181中找到)

8406-121的输入电压额定值为150- -300 Vac PT输入, 9- -32 Vdc,工作温度额定值为- 20至+70°c。存储温度额定值为- 40至+ 105°c。该装置的

时为282 x 358 x 69 mm,包括-个带键盘的前面板和两个背光LCD显示屏。

这两个屏幕显示操作信息状态信息和调谐设定点。当发动机转速高于50转/分时，背景灯保持点亮。当发动机不运转时，不使用5分钟后，背景灯

将关闭。它还会在电源电压下降时关闭，以节省电能。显屏旁边是一个红色LED, 用于指示报警条件和停机条件。

8406-121不附带安装和远程通信所需的组件，必须单独订购。EGCP-2发动机发电机控制包手册26174可以在我们上面的标签中找到。

The 8406-121 model is one of Woodward's complete generator control and engine management packages based on the EGCP-2 microprocessor, used for automation and protection of gas or diesel engine based generator sets.

The characteristics of 8406-121 include:

Engine control

Generator set synchronization

Actual (kW) load control

Reactive power control

Automatic generator sequencing (multiple units)

Gen Set protection function

Engine protection function

Communication PC interface (complete details of communication functions can be found online in Communication Manual 26181)

The input voltage rating of 8406-121 is 150-300 Vac PT input, 9-32 Vdc, and the operating temperature rating is -20 to+70 ° C. The storage temperature rating is -40 to+105 ° C. The device's

It is 282 x 358 x 69 mm, including a front panel with a keyboard and two backlit LCD displays.

These two screens display operation information, status information, and tuning set points. When the engine speed is above 50 rpm, the background light remains on. When the engine is not running and not in use for 5 minutes, the backlight

Will close. It will also turn off when the power supply voltage drops to save electricity. Next to the display screen is a red LED used to indicate alarm and shutdown conditions.

8406-121 does not come with components required for installation and remote communication and must be ordered separately. The EGCP-2 engine generator control package manual 26174 can be found on the label above us.
