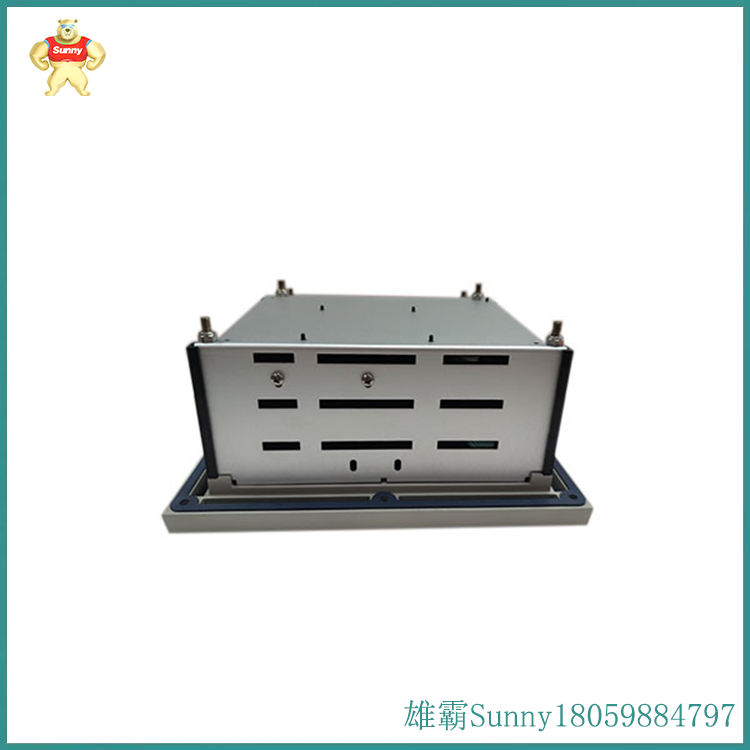

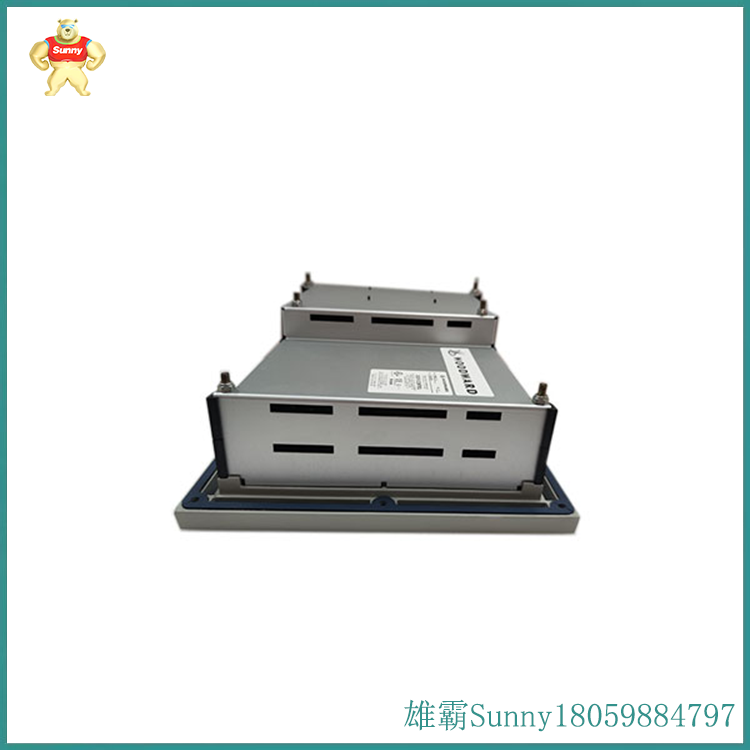

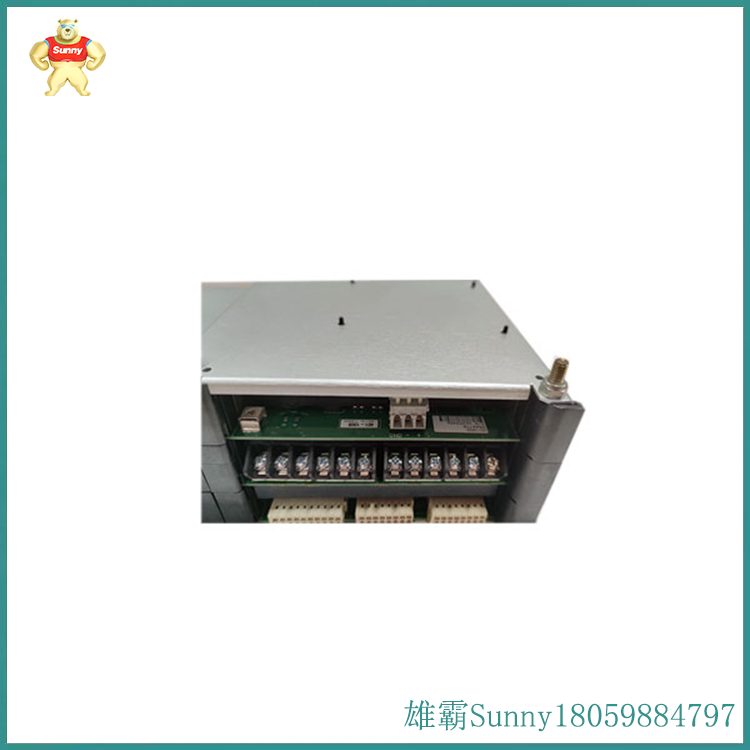

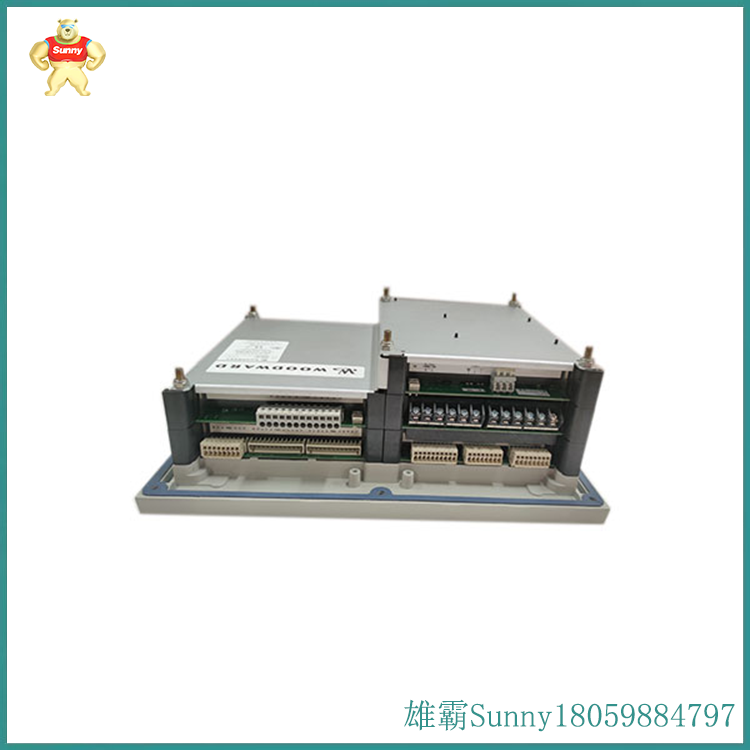

8406-113 发动机-发电机控制包

8406-113型属于Woodward EGCP-3发动机-发电机控制包负载共享（LS）型号系列。这种基于微处理器的装置设计用于与其他LS单元一起或一起使用。8406-113的额定输入电压为18-32 V de，额定工作温度范围为-20至+70°C。该LS型号具有键盘和显示屏接口，其中包括两个背光LCD屏幕，使用户能够同时监测和调整相关参数。这些屏幕显示八行状态信息，并可选择四行配置或报警日志信息。在使用之前，8406-113必须通过首次启动菜单进行配置；这些项目在引擎翻找时无法编辑。对于标准操作，8406-113配置点可从前面板显示器中获得。可以通过监视窗口软件访问其他配置点（以及标准配置点）ServLink通信串行链路。

此控制单元有九个状态菜单，便于监控和故障排除。这些菜单是System Status（系统状态）、Engine Status（发动机状态）、Generator Status（发电机状态）、Synchronizer Status（同步器状态）、KW负载状态、PF/KVAR状态、I/O状态、序列状态和ATS状态（请注意：LS型号不具有任何转换开关功能。如果装置设置为本地

连接到干线的系统总线，并且MC单元需要执行ATS功能）。

其他规格和说明可在EGCP-3发动机-发电机控制包LS（负载共享）8406-113型手册26194中在线找到。

The 8406-113 model belongs to the Woodward EGCP-3 engine generator control pack load sharing (LS) model series. This microprocessor based device is designed for use with or in conjunction with other LS units. The rated input voltage of 8406-113 is 18-32 V de, and the rated operating temperature range is -20 to+70 ° C. This LS model has a keyboard and display interface, including two backlit LCD screens, allowing users to simultaneously monitor and adjust related parameters. These screens display eight lines of status information and can select four lines of configuration or alarm log information. Before use, the 8406-113 must be configured through the first boot menu; These items cannot be edited while the engine is searching. For standard operation, the 8406-113 configuration points can be obtained from the front panel display. You can access other configuration points (as well as standard configuration points) via the monitoring window software for ServLink communication serial links.

This control unit has nine status menus for easy monitoring and troubleshooting. These menus are System Status, Engine Status, Generator Status, Synchronizer Status, KW Load Status, PF/KVAR Status, I/O Status, Sequence Status, and ATS Status (please note that the LS model does not have any transfer switch function. If the device is set to Local

Connect to the system bus of the main line, and the MC unit needs to perform ATS functions.

Other specifications and instructions can be found online in the EGCP-3 Engine Generator Control Package LS (Load Sharing) 8406-113 manual 26194.
