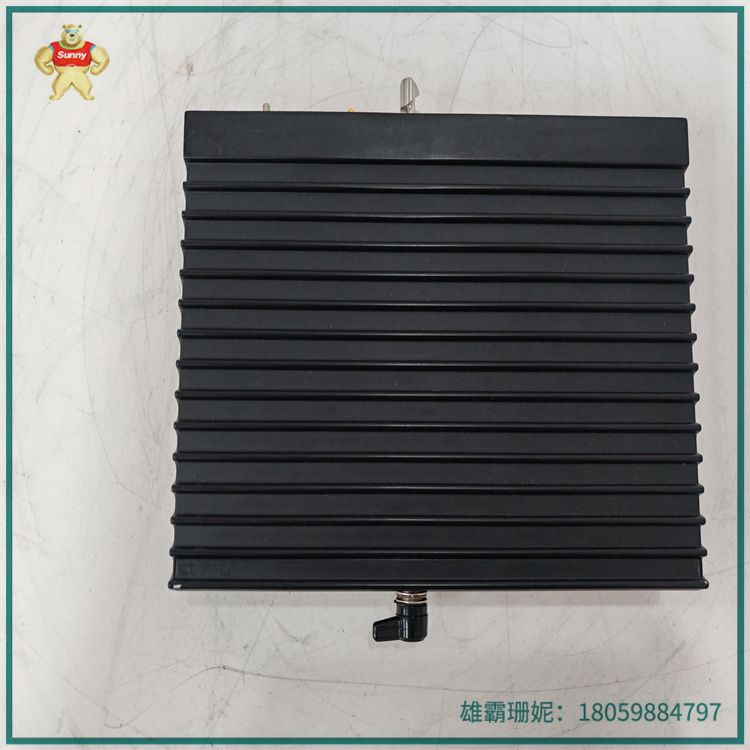

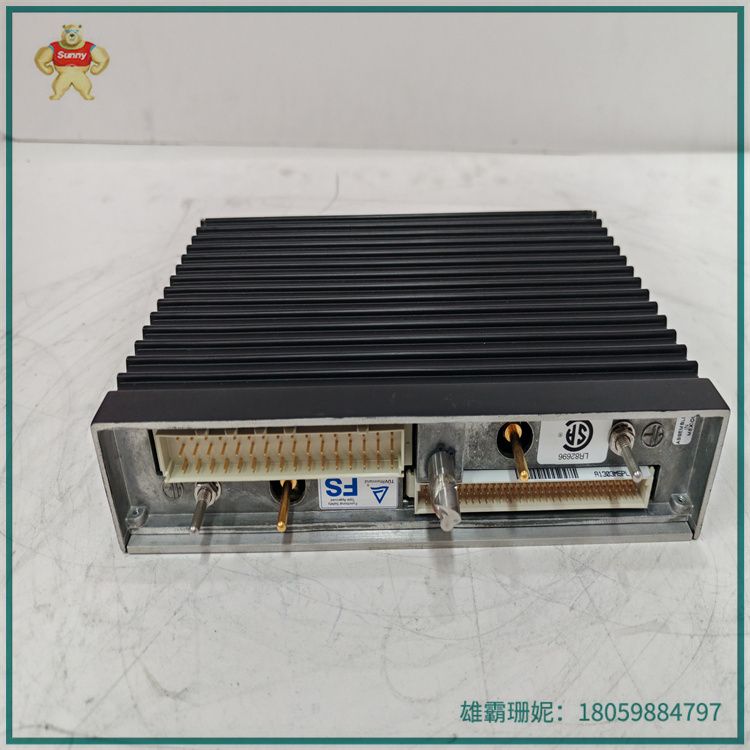

TRICONEX DI3301 | TRICONEX HCU3700/3703E 数字量输入模块

TRICONEX DI3301 是美国 TRICONEX（施耐德电气旗下品牌） 推出的一款 数字量输入模块，属于其 Tricon 系列安全控制系统 的组成部分，主要用于工业自动化领域的安全关键系统中，实现对数字量信号的采集和处理。以下是关于该模块的详细介绍：

一、模块基本信息

产品类型：数字量输入模块

应用场景：适用于石油、化工、电力、冶金等对安全性要求极高的工业环境，支持冗余配置，确保系统在故障情况下仍能可靠运行。

符合标准：遵循国际安全标准（如 IEC 61508、ISA 84.00.01 等），通过安全认证（如 TÜV 认证），可用于 SIL 3 级安全系统。

二、主要功能与特性

1. 信号处理能力

输入通道数：TRICONEX DI3301 通常为 32 路独立数字量输入通道（具体以型号规格为准）。

信号类型：支持多种直流（DC）输入信号，如 24V DC 开关量信号，可检测干接点（如继电器触点）或湿接点（如晶体管输出）。

抗干扰设计：具备高噪声抑制能力，适应工业现场复杂的电磁环境。

2. 安全与可靠性

三重化冗余架构（TMR，Triple Modular Redundancy）：

内部采用三通道冗余设计，每个通道独立处理信号，通过表决机制（多数表决或容错逻辑）确保信号的准确性和系统的容错能力，可在线更换（热插拔）而不影响系统运行。

自诊断功能：持续监测模块硬件状态（如电源、通道故障），支持故障报警和状态指示，诊断覆盖率（DC）高达 99% 以上。

3. 通信与集成

与控制器通信：通过 Tricon 系统的专用总线（如 PCI 总线）与主控制器（如 Tricon CPU）实时交换数据，传输速率快，延迟低。

状态指示：配备 LED 指示灯，直观显示各通道的输入状态（如信号通断）、模块运行状态（如电源、故障、通信正常）。

4. 电气特性

输入电压范围：典型值为 20-30V DC（具体以产品手册为准）。

输入阻抗：高输入阻抗设计，减少对现场信号源的负载影响。

隔离特性：通道间电气隔离，防止通道间串扰，提高抗干扰能力。

四、应用场景

安全仪表系统（SIS）：TRICONEX DI3301用于紧急停车系统（ESD）、火气监测系统（F&G）等，采集现场开关信号（如压力开关、温度开关、阀门状态等）。

过程控制系统（DCS）：TRICONEX DI3301作为冗余输入模块，提高系统的可靠性和可用性。

关键设备保护：如压缩机、泵组的安全联锁控制，确保设备在异常情况下及时响应。

TRICONEX DI3301 is a digital input module launched by TRICONEX (a brand under Schneider Electric) of the United States. It is a component of its Tricon series of safety control systems and is mainly used in safety-critical systems in the field of industrial automation to achieve the acquisition and processing of digital signals. The following is a detailed introduction about this module:

I. Basic Information of the Module

Product type: Digital input module

Application scenarios: It is suitable for industrial environments with extremely high safety requirements such as petroleum, chemical engineering, power, and metallurgy. It supports redundant configuration to ensure reliable operation of the system even in case of failure.

Conforming standards: Comply with international safety standards (such as IEC 61508, ISA 84.00.01, etc.), pass safety certifications (such as TUV certification), and can be used in SIL level 3 safety systems.

Ii. Main Functions and Features

1. Signal processing capability

Number of input channels: TRICONEX DI3301 usually has 32 independent digital input channels (specifically subject to model specifications).

Signal type: Supports multiple DC input signals, such as 24V DC switch quantity signals, and can detect dry contacts (such as relay contacts) or wet contacts (such as transistor output).

Anti-interference design: It has a high noise suppression capability and can adapt to the complex electromagnetic environment in industrial sites.

2. Safety and Reliability

Triple Modular Redundancy Architecture (TMR) :

The internal structure adopts a three-channel redundant design, with each channel independently processing signals. Through a voting mechanism (majority voting or fault-tolerant logic), the accuracy of the signals and the system's fault-tolerant capability are ensured. It can be replaced online (hot-swappable) without affecting the system operation.

Self-diagnostic function: Continuously monitor the hardware status of the module (such as power and channel faults), support fault alarm and status indication, with a diagnostic coverage rate (DC) of over 99%.

3. Communication and Integration

Communication with the controller: Real-time data exchange with the main controller (such as Tricon CPU) through the dedicated bus of the Tricon system (such as PCI bus), featuring fast transmission rate and low latency.

Status indication: Equipped with LED indicator lights, it visually displays the input status of each channel (such as signal on/off) and the operating status of the module (such as power supply, fault, normal communication).

4. Electrical characteristics

Input voltage range: The typical value is 20-30V DC (please refer to the product manual for details).

Input impedance: High input impedance design to reduce the load impact on the on-site signal source.

Isolation feature: Electrical isolation between channels to prevent crosstalk between channels and enhance anti-interference capability.

Iv. Application Scenarios

Safety Instrumentology System (SIS) : TRICONEX DI3301 is used in emergency shutdown systems (ESD), fire and gas monitoring systems (F&G), etc., to collect on-site switch signals (such as pressure switches, temperature switches, valve status, etc.).

Process Control System (DCS) : TRICONEX DI3301 is used as a redundant input module to enhance the reliability and availability of the system.

Critical equipment protection: Such as safety interlock control of compressors and pump sets to ensure timely response of the equipment in abnormal situations.
