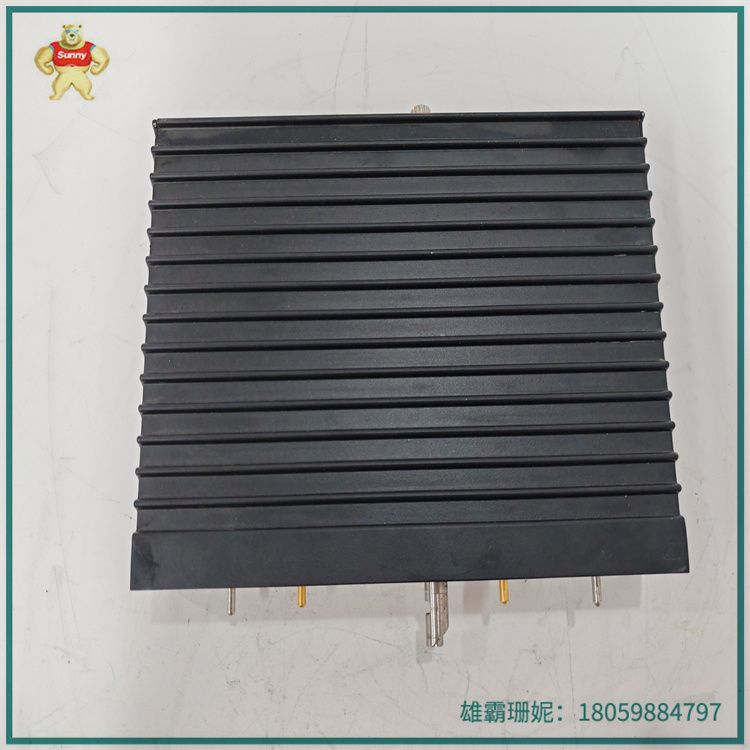

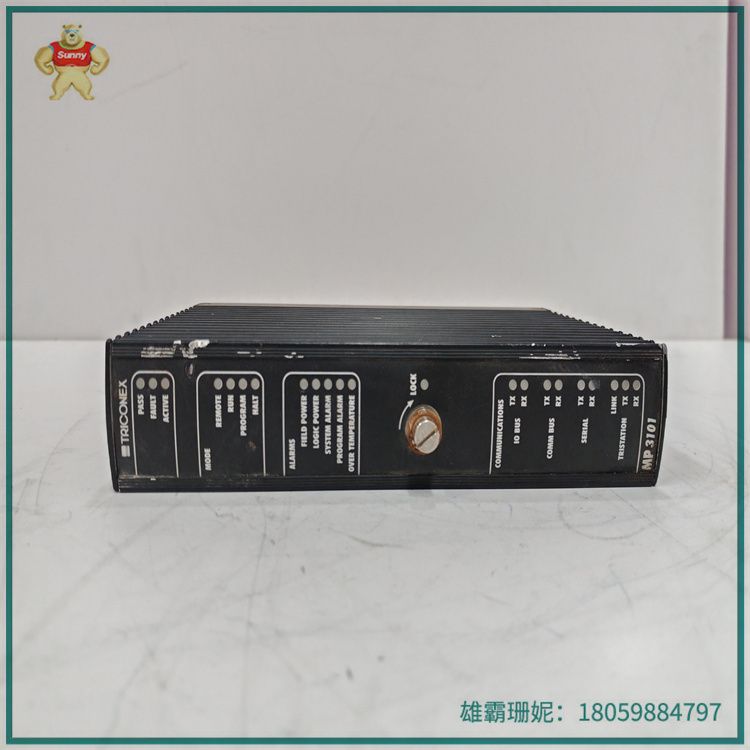

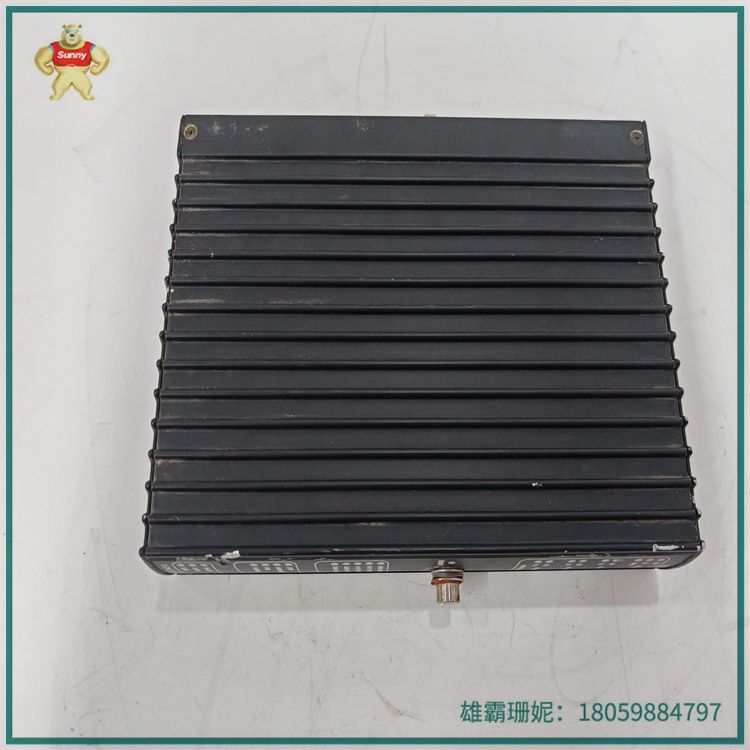

TRICONEX MP3101 | HCU3700/3703E 数字输入模件

TRICONEX MP3101 是一款应用广泛的数字输入模件，以下将从其基本信息、性能特点、应用领域等方面进行详细介绍：

基本信息

类型：数字输入模件。

电源要求：通常支持 48VAC/DC

点数：32 点。

特点：非公用，简易型。

性能特点

高可靠性：采用了 TMR（Triple Modular Redundancy）三模冗余技术，通过三个独立的处理器和通道对输入信号进行处理和比较，能够自动检测和纠正单个模块的故障，确保系统的连续稳定运行，减少因硬件故障导致的停机时间和生产损失。

快速响应：TRICONEX MP3101 在解算逻辑方面表现出快速的优点，能够在微秒量级完成逻辑解算，解算 1k 逻辑程序不到 1 毫秒，可及时准确地响应外部输入信号，满足对实时性要求较高的工业控制场景。

高抗干扰能力：具备良好的电磁兼容性，能够有效抵抗工业环境中的电磁干扰、射频干扰等，保证输入信号的准确性和稳定性，减少信号误判和波动的情况发生。

灵活配置：TRICONEX MP3101 可以根据不同的应用需求进行灵活配置，适应各种复杂的工业控制逻辑和系统架构，可与 TRICONEX 系列的其他模块配合使用，实现多样化的控制功能。

应用领域

电力行业：TRICONEX MP3101 用于发电厂、变电站等的监控和控制系统，对电力系统中的各种开关状态、保护信号等进行实时采集和处理，保障电力系统的安全稳定运行。

石油化工行业：在石油开采、炼油、化工生产等过程中，对各类泵、阀门、压缩机等设备的运行状态进行监测和控制，实现生产过程的自动化和安全联锁保护。

冶金行业：应用于钢铁厂、有色金属冶炼厂等，对冶金生产线上的各种设备进行控制和监测，如高炉、转炉、连铸机等，提高生产效率和产品质量。

TRICONEX MP3101 is a widely used digital input module. The following will provide a detailed introduction from aspects such as its basic information, performance characteristics, and application fields:

Basic information

Type: Digital input module.

Power supply requirements: Typically supports 48VAC/DC

Points: 32.

Features: Non-public, simple type.

Performance characteristics

High reliability The TMR (Triple Modular Redundancy) technology is adopted. Through three independent processors and channels to process and compare the input signals, it can automatically detect and correct the faults of individual modules, ensure the continuous and stable operation of the system, and reduce the downtime and production losses caused by hardware failures.

Fast response: TRICONEX MP3101 shows the advantage of being fast in solving logic. It can complete the logic solution at the microsecond level. It takes less than 1 millisecond to solve 1k logic programs and can respond to external input signals promptly and accurately, meeting the requirements of industrial control scenarios with high real-time performance.

High anti-interference capability: It has excellent electromagnetic compatibility and can effectively resist electromagnetic interference, radio frequency interference, etc. in industrial environments, ensuring the accuracy and stability of input signals and reducing the occurrence of signal misjudgment and fluctuations.

Flexible configuration: The TRICONEX MP3101 can be flexibly configured according to different application requirements, adapting to various complex industrial control logics and system architectures. It can be used in conjunction with other modules of the TRICONEX series to achieve diverse control functions.

Application field

Power industry: TRICONEX MP3101 is used in the monitoring and control systems of power plants, substations, etc. It collects and processes various switch states, protection signals, etc. in the power system in real time to ensure the safe and stable operation of the power system.

Petrochemical industry: In the processes of oil extraction, oil refining, and chemical production, the operating status of various pumps, valves, compressors and other equipment is monitored and controlled to achieve the automation of the production process and safety interlock protection.

Metallurgical industry: Applied in steel mills, non-ferrous metal smelters, etc., it controls and monitors various equipment on the metallurgical production line, such as blast furnaces, converters, continuous casting machines, etc., to improve production efficiency and product quality.
