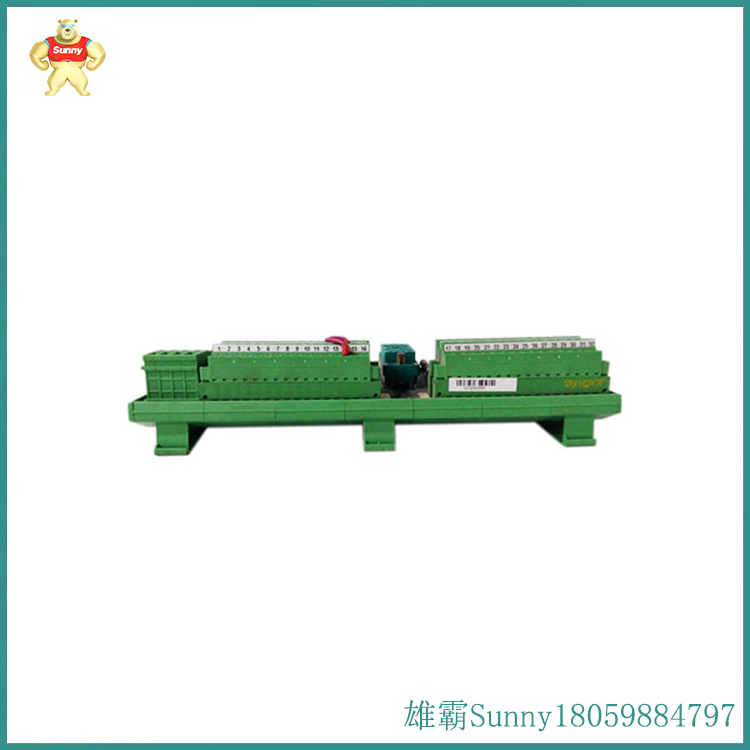

TRICONEX 9566-810 端子底座模块

Tricon控制系统的主要特点

Tricon是一种高容错的可编程和过程控制技术。

其特点如下:

A.提供三模冗余结构(TMR ),具有三个相同的子电路,每个子电路执行独立程度的控制。还有一个专用的硬件/软件架构,用于对输入和输出进行"表

能够忍受恶劣的工业环境。

C.它可以在现场安装，并组可以在不干扰现场布线的情况下在现场在线安装和修复模块级。

D.支持多达118个I/O模块(模拟和数字)和可选通信模块。通信模块可以

连接到Modbus主机和从属设备，或连接到Foxboro和Honeywell分布式控制系统(DCS),对等网络中的其他Tricons,以吸TCP/IP网络中的外部主

机。

E.可以支持距离大型机最远12公里的远程I/O模块。

F.使用基于Windows NT系统的编程软件开发和调试控制程序。

G.输入和输出模块中的智能功能可减少主处理器的工作负荷。每个I/O模块有三个微处理器。输入模块的微处理器过滤和修复输入，并诊断模块上的

硬件故障。输出模块微处理器为输出数据的表决提供信息，通过输出端的反馈回路电压检查输出状态的有效性，并能诊断场线问题。

H.提供全面的在线诊断和修复能力。

1. Tricon启动和运行时，可以进行日常维护，而不会中断控制过程。

J.为I/O模块提供“热备用”支持，可用于某些无法及时提供服务的紧急情况。

The main characteristics of the Tricon control system

Tricon is a highly error tolerant programmable and process control technology.

Its characteristics are as follows:

A. The third mock examination redundant structure (TMR) is provided, which has three identical sub circuits, and each sub circuit performs independent control. There is also a dedicated hardware/software architecture for "tabulating" inputs and outputs

Able to tolerate harsh industrial environments.

C. It can be installed on-site and can be installed and repaired at the module level online without interfering with on-site wiring.

D. Supports up to 118 I/O modules (analog and digital) and optional communication modules. The communication module can

Connect to Modbus hosts and slave devices, or connect to Foxboro and Honeywell distributed control systems (DCS), other Tricons in peer-to-peer networks, to attract external hosts in TCP/IP networks

Machine.

E. It can support remote I/O modules up to 12 kilometers away from the mainframe.

F. Develop and debug control programs using programming software based on the Windows NT system.

G. The intelligent functions in the input and output modules can reduce the workload of the main processor. Each I/O module has three microprocessors. The microprocessor of the input module filters and repairs inputs, and diagnoses faults on the module

Hardware failure. The output module microprocessor provides information for the voting of output data, checks the effectiveness of output status through the feedback circuit voltage at the output end, and can diagnose field line problems.

H. Provide comprehensive online diagnosis and repair capabilities.

When Tricon starts and runs, daily maintenance can be carried out without interrupting the control process.

J. Provide "hot standby" support for I/O modules, which can be used in emergency situations where services cannot be provided in a timely manner.
