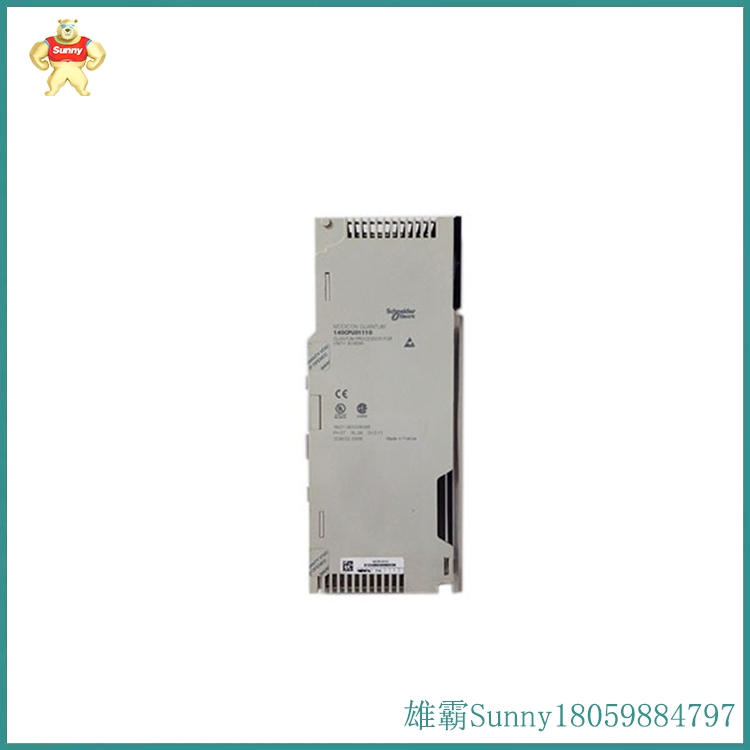

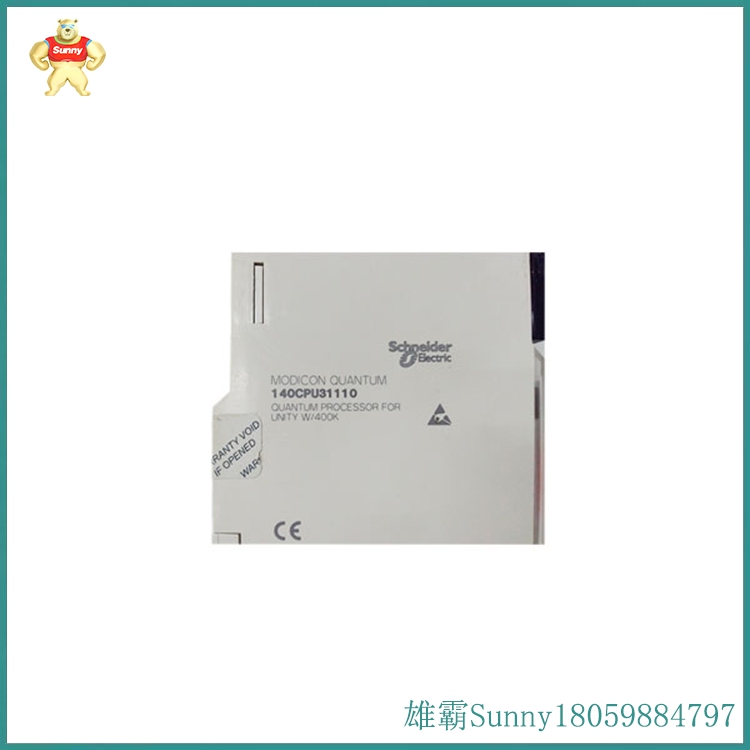

140CPU31110

你能从这个中央处理器期待什么?这个单元可以从你的I/O模块获取信息，然后使用这些信息来管理你的进程。它使用您为特定应用程序编写的信息

来实现这一点。 输出信息传递到您的流程，为您的流程提供所需的结果。该CPU的前面板由-一个带有7个led的显示块组成。这些发光二极管是什

么?七个led包括准备好的通电诊断测试成功时显示绿灯的LED。奔跑程序执行时变为绿色的LED。Modbus当Modbus端口. 上有活动时，LED变为

绿色。Modbus Plus当Modbus Plus端口.上有活动时，LED显示绿色。记忆产品当记忆保护开关被激活时，LED变为橙色。蝙蝠低当备用电池需要

更换或丢失时，LED将变为红色。最后-个LED是 错误A当Modbus Plus端口出现通信故障时，LED变为红色。备用电池槽也在前面板上，以吸于

选择Modbus端口通信参数和写保护存储器的滑动开关。它具有两个用于连接Modbus总线的9路SUB-D母连接器和一一个用于连接Modbus Plus网络的9路SUB-D母连接器。可拆卸铰链门上有一个可定制的识别标签。施耐德电气140CPU31110重1.698磅

What can you expect from this central processing unit? This unit can obtain information from your I/O module and use this information to manage your processes. It uses the information you write for a specific application

To achieve this. Output information to your process, providing the required results for your process. The front panel of the CPU consists of a display block with 7 LEDs. What are these light-emitting diodes

Is it? The seven LEDs include the LED that displays a green light when the prepared power on diagnostic test is successful. The LED that turns green during the execution of the running program. Modbus is the Modbus port When there is an activity on, the LED changes to

Green. When there is activity on the Modbus Plus port, the LED displays green. When the memory protection switch is activated, the LED of the memory product turns orange. Bat low battery backup required

When replaced or lost, the LED will turn red. The last LED is error A. When there is a communication failure on the Modbus Plus port, the LED turns red. The backup battery compartment is also located on the front panel for suction

Select the Modbus port communication parameters and the sliding switch for write protected memory. It has two 9-way SUB-D female connectors for connecting to the Modbus bus and one 9-way SUB-D female connector for connecting to the Modbus Plus network. There is a customizable identification label on the detachable hinge door. Schneider Electric 140CPU31110 weighs 1.698 pounds
