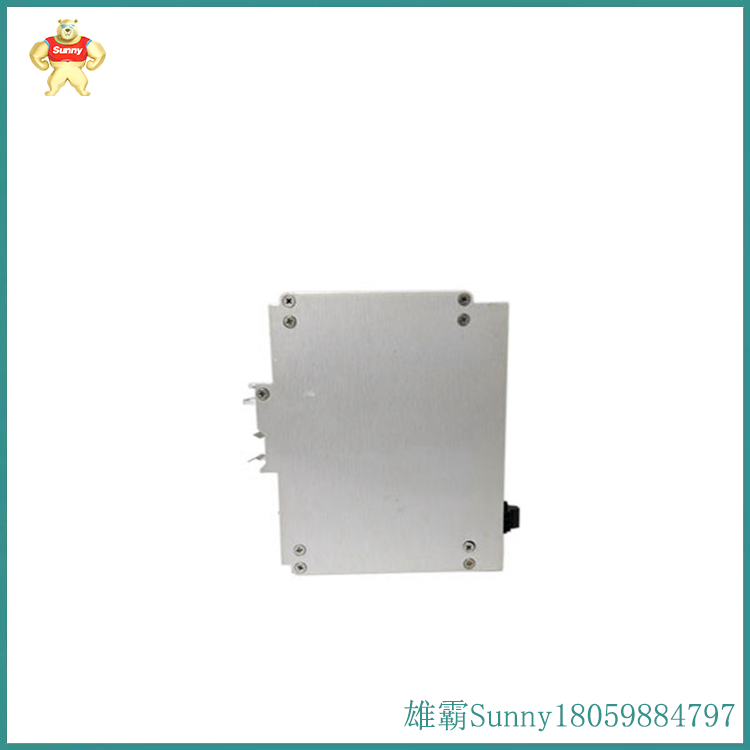

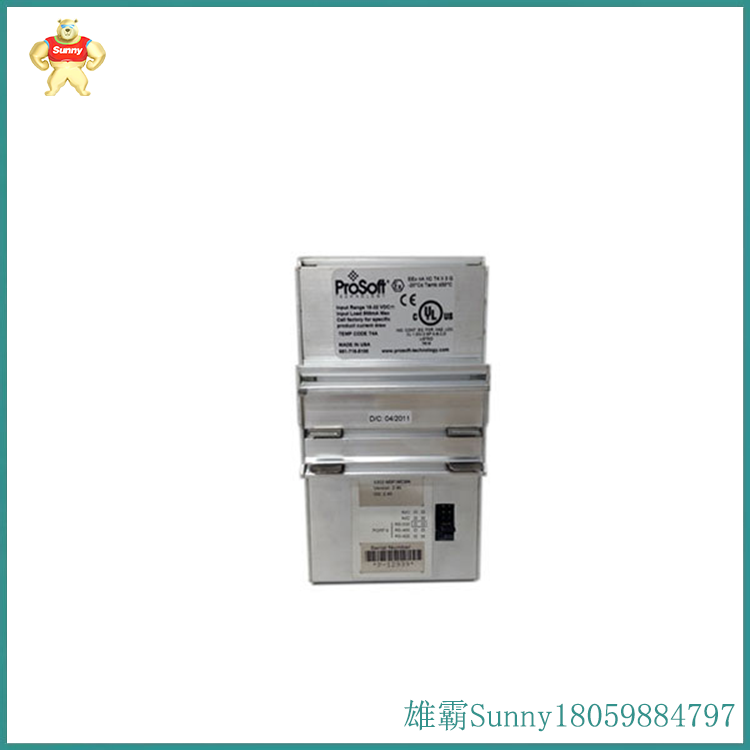

部件号5302-MBP-MCM4
型号: Modbus Plus到Modbus主从网关4端口
品牌: PROSOFT
ProLinx Modbus Plus to Modbus Master/Slave Gateway在Modbus Plus网络上的设备与Modbus设备之间建立了强大的连接。这款独立的DIN导轨安装协议网关提供-个Modbus Plus端口和多达四个支持Modbus的串行端口。Modbus Plus协议驱动程序支持DB9母ModbusPlus端口上协议的主站和从站实现。Modbus Plus端口是完全可配置的。Modbus 协议驱动程序支持协议的主站和从站实现。所有Modbus串行端口均可单独配置,提供非常强大且灵活的主机或设备接口解决方案。
特点与优势应用MBP-MCM模块是许多应用的理想解决方案,在这些应用中,Modbus Plus连接可用于将Modbus设备集成到系统中。Modbus Plus网关是一个功能强大的模块, 同时支持客户端和服务器,可轻松连接到罗克韦尔自动化PLC (CLX、 SLC、PLC、 CPLX 和类似设备)。结合Modbus设备支持,该模块为当今I业市场上使用的许多ASCII设备提供了非常强大的接口。该模块的应用在大多数行业中都有应用,特别是制造业、石油和天然气、电力和食品加工。规格内部数据库ProLinx模块包含一个内部数据库,该数据库由应用数据、状态信息和配置信息区域组成。内部数据库在模块 上的所有端口之间共享,并用作将信息从一个网络 上的设备传递到另-个网络上的一一个或多个设备的管道。应用程序数据区域数据区域用于通过协议驱动程序存储和检索数据以及协议之间的数据交换。该数据库用作向远程设备写入命令的源,并保存从远程设备收集的数据。配置文件中定义的命令(存储在配置数据区域中)控制在数据库中处理数据的方式。状态数据区域 此区域用于存储每个端口的错误代码、计数器和端口状态信息。配置数据区域 此区域包含模块配置信息,如端口配置、网络信息和命令配置。
Features and advantages: The MBP-MCM module is an ideal solution for many applications, where Modbus Plus connections can be used to integrate Modbus devices into the system. The Modbus Plus gateway is a powerful module that supports both clients and servers, making it easy to connect to Rockwell Automation PLCs (CLX, SLC, PLC, CPLX, and similar devices). Combined with Modbus device support, this module provides a very powerful interface for many ASCII devices used in today's I industry market. The application of this module has been applied in most industries, especially manufacturing, oil and gas, electricity, and food processing. The specification internal database ProLinx module contains an internal database consisting of application data, status information, and configuration information areas. The internal database is shared among all ports on the module and serves as a pipeline to transfer information from devices on one network to one or more devices on another network. The application data area data area is used to store and retrieve data through protocol drivers, as well as for data exchange between protocols. This database serves as the source for writing commands to remote devices and stores data collected from remote devices. The commands defined in the configuration file (stored in the configuration data area) control the way data is processed in the database. The status data area is used to store error codes, counters, and port status information for each port. Configuration Data Area This area contains module configuration information, such as port configuration, network information, and command configuration.
