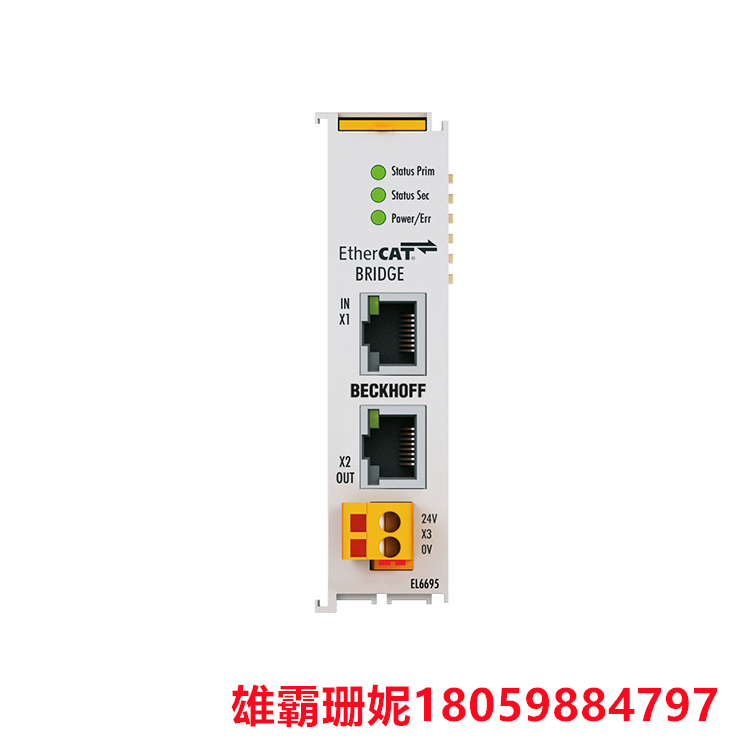

EL6695 端子模块 用于电气连接和信号传输的组件

型号：EL6695

住房数据 EL-24型

设计形式 带信号 LED 的紧凑型端子外壳

材料 聚碳酸酯

尺寸（宽 x 高 x 深） 24 毫米 x 100 毫米 x 52 毫米

安装 在 35 mm DIN 导轨上，符合 EN 60715 带锁

并排安装方式 双插槽和钥匙连接

EL6695系列 |EtherCAT端子模块，通信接口，EtherCAT桥接器，扩展功能

EL6695 EtherCAT 桥接模块可在 EtherCAT 端子模块与不同主站之间实现实时数据交换。还支持通过 AoE、FoE、EoE、NPI 等进行异步通信。分布式时钟可以在两个方向上同步。EL6695 与 EL6692（将继续提供）的不同之处在于灵活的 CoE 配置、器件仿真选项和数据吞吐量的显著提高。与 EL6692 一样，TwinCAT System Manager 中提供了方便的组态界面。次级侧 （RJ45） 的电源通过外部连接，初级侧通过 E-bus 供电。桥接端子还可用于将下属 PC 系统集成为 EtherCAT 从站。

倍福组件可以通过多种方式实现 EtherCAT 网络之间的数据交换，以满足不同的系统要求。因此，还应使用下面列出的“类似产品”、FCxxxx 现场总线卡或各种 CX 嵌入式 PC 上的 B110 接口来检查可能性。

端子模块（Terminal Module）是一种用于电气连接和信号传输的组件。它通常包括一组金属端子，用于连接电线、电缆或其他导体。

EL6695端子模块的主要作用是提供可靠的电气连接，并将电信号从一个设备传输到另一个设备。它可以用于各种电气系统中，例如电力分配、控制系统、通信网络等。

EL6695 端子模块通常由塑料或金属外壳保护，以防止触电和外界干扰。它可能具有不同数量和类型的端子，以适应不同的连接需求。常见的端子类型包括螺丝端子、插入式端子、弹簧端子等。

EL6695 端子模块还可以提供一些附加功能，如标识、绝缘、接地等。它们可以根据应用的要求进行定制和配置，以满足特定的电气连接和信号传输需求。

在电子设备和电气系统中，端子模块是常见的组成部分，用于实现可靠的连接和信号传输。它们通常易于安装和维护，并且可以提高系统的可靠性和可维护性。

EL6695 端子模块 用于电气连接和信号传输的组件

Model: EL6695

Housing data EL-24 type

Design form compact terminal housing with signal LED

Material polycarbonate

Dimensions (W x H x D) 24mm x 100mm x 52mm

Mounted on 35 mm DIN rail with lock in accordance with EN 60715

Side-by-side installation mode dual slot and key connection

EL6695 series |EtherCAT terminal module, communication interface, EtherCAT bridge, extended function

The EL6695 EtherCAT bridge module enables real-time data exchange between the EtherCAT terminal module and different master stations. It also supports asynchronous communication through AoE, FoE, EoE, NPI, etc. Distributed clocks can be synchronized in both directions. The EL6695 differs from the EL6692 (which will continue to be offered) in flexible CoE configurations, device simulation options, and significantly improved data throughput. Like the EL6692, a convenient configuration interface is available in TwinCAT System Manager. The secondary side (RJ45) is powered by an external connection, and the primary side is powered by an E-bus. Bridging terminals can also be used to integrate subordinate PC systems as EtherCAT slaves.

Beckhoff components can exchange data between EtherCAT networks in a variety of ways to meet different system requirements. Therefore, you should also use the "similar products" listed below, the FCxxxx fieldbus card, or the B110 interface on various CX embedded PCS to check the possibilities.

A Terminal Module is a component used for electrical connections and signal transmission. It usually includes a set of metal terminals for connecting wires, cables, or other conductors.

The main role of the EL6695 terminal module is to provide a reliable electrical connection and to transmit electrical signals from one device to another. It can be used in various electrical systems, such as power distribution, control systems, communication networks, etc.

EL6695 terminal modules are usually protected by a plastic or metal housing to prevent electric shock and outside interference. It may have different numbers and types of terminals to suit different connection needs. Common terminal types include screw terminals, insert terminals, and spring terminals.

The EL6695 terminal module can also provide some additional functions, such as identification, insulation, grounding, etc. They can be customized and configured according to the requirements of the application to meet specific electrical connection and signal transmission needs.

In electronic devices and electrical systems, terminal modules are a common component for reliable connections and signal transmission. They are generally easy to install and maintain, and can improve system reliability and maintainability.
