EL3121 模拟输入终端 具有一定的抗干扰能力

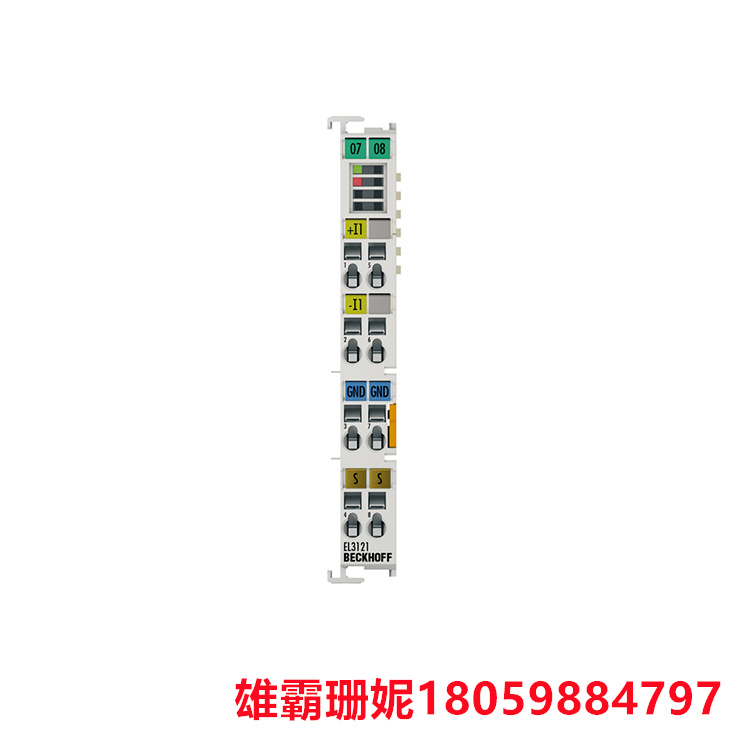

EL3121 | EtherCAT终端，1通道模拟输入，电流，4…20ma, 16位，差分1

EL3121模拟输入终端处理4到20ma范围内的信号。电流被数字化到16位的分辨率，并通过电隔离传输到更高级别的自动化设备。EtherCAT终端的输入通道具有差分输入，并具有共同的内部接地电位。EL3121是单通道版本，其特点是细粒度和电气隔离。检测到引线断路或过载。终端状态通过e总线传递给控制器。EtherCAT终端通过发光二极管显示其信号状态。错误led指示过载情况和断线。

EL3121模拟输入终端（Analog Input Terminal）是指用于接收和处理模拟信号的输入端口或接口。模拟信号是指连续变化的电信号，例如电压、电流、温度、压力等。

模拟输入终端通常用于连接传感器、测量仪器或其他模拟设备，将它们产生的模拟信号传输到计算机、数据采集系统或控制设备中进行处理和分析。

EL3121模拟输入终端一般具有以下特点：

1.  输入范围：EL3121模拟输入终端通常可以接受一定范围内的模拟信号，例如 0 到 10V、4 到 20mA 等。输入范围取决于终端的设计和应用需求。

2.  分辨率：EL3121模拟输入终端的分辨率指它能够分辨的最小模拟信号变化量。分辨率越高，终端能够检测到的信号细节越丰富。

3.  采样率：采样率是指模拟输入终端每秒采样模拟信号的次数。采样率越高，终端能够捕捉到的信号变化越快。

4.  抗干扰能力：模拟输入终端通常具有一定的抗干扰能力，以减少外部干扰对模拟信号的影响。

5.  接口类型：EL3121模拟输入终端可以通过不同的接口类型与外部设备连接，如 BNC、RCA、凤凰端子等。

模拟输入终端在工业控制、仪器仪表、科学研究、医疗设备等领域广泛应用，用于采集和处理各种模拟信号，实现对物理量的监测和控制。

EL3121 模拟输入终端 具有一定的抗干扰能力

EL3121 | EtherCAT terminal, 1 channel analog input, current, 4... 20ma, 16-bit, differential

1

The EL3121 analog input terminal handles signals in the 4 to 20ma range. The current is digitized to a 16-bit resolution and transmitted to a higher level of automation through electrical isolation. The input channel of the EtherCAT terminal has a differential input and a common internal ground potential. The EL3121 is a single-channel version that features fine granularity and electrical isolation. Lead break or overload detected. The terminal state is passed to the controller via the e bus. The EtherCAT terminal displays its signal status via a light-emitting diode. The error led indicates overload conditions and disconnection.

An Analog Input Terminal is an input port or interface used to receive and process analog signals. Analog signals are electrical signals that change continuously, such as voltage, current, temperature, pressure, etc.

Analog input terminals are typically used to connect sensors, measuring instruments, or other analog devices to transmit the analog signals they generate to a computer, data acquisition system, or control device for processing and analysis.

EL3121 analog input terminals generally have the following characteristics:

1. Input range: EL3121 Analog input terminals can usually accept analog signals within a certain range, such as 0 to 10V, 4 to 20mA, etc. The input range depends on the design and application requirements of the terminal.

2. Resolution: The resolution of the EL3121 analog input terminal refers to the minimum analog signal change that it can resolve. The higher the resolution, the richer the details of the signal that the terminal can detect.

3. Sampling rate: Sampling rate refers to the number of times per second that the analog input terminal samples the analog signal. The higher the sampling rate, the faster the signal that the terminal can capture changes.

4. Anti-interference ability: The analog input terminal usually has a certain anti-interference ability to reduce the impact of external interference on the analog signal.

5. Interface type: EL3121 Analog input terminals can be connected to external devices through different interface types, such as BNC, RCA, and Phoenix terminals.

Analog input terminals are widely used in industrial control, instrumentation, scientific research, medical equipment and other fields, which are used to collect and process various analog signals to realize the monitoring and control of physical quantities.
