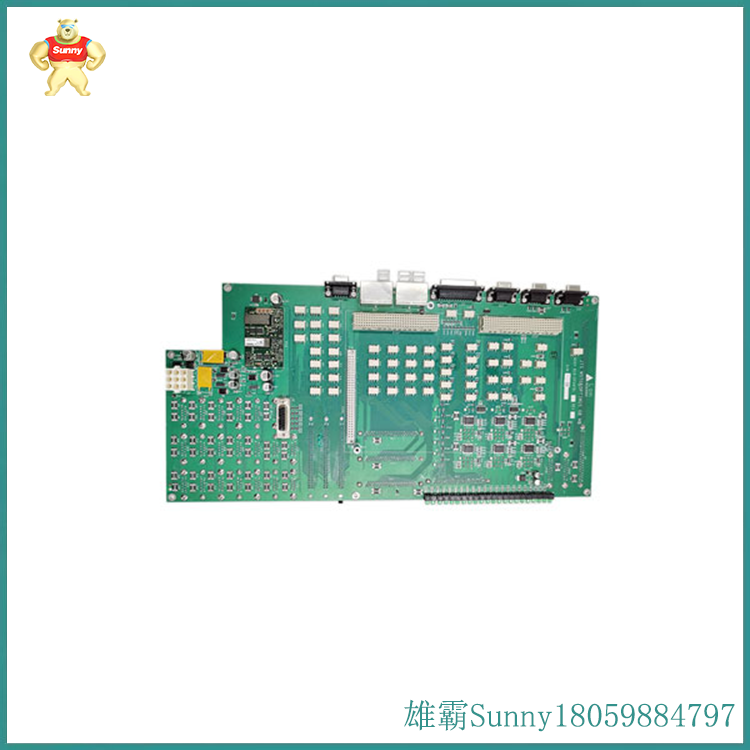

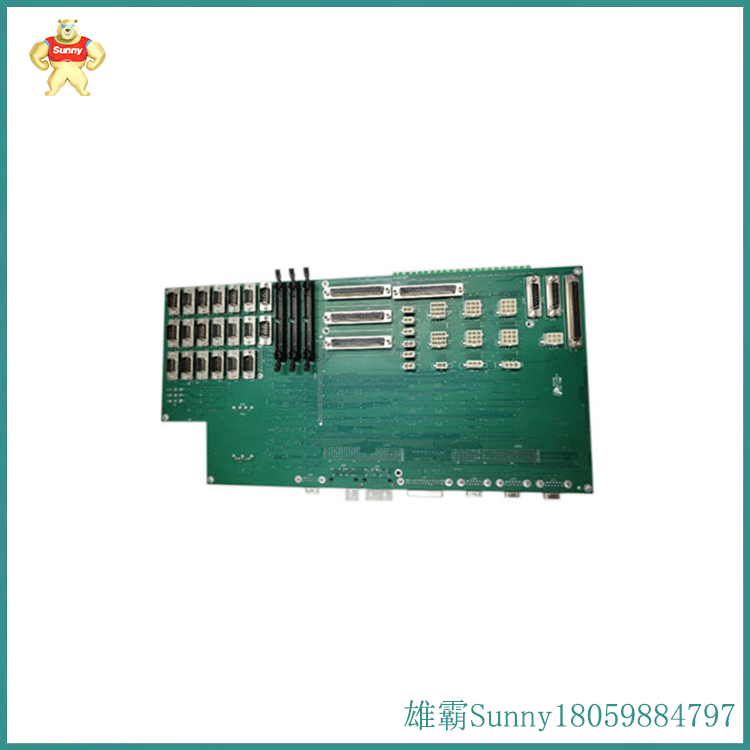

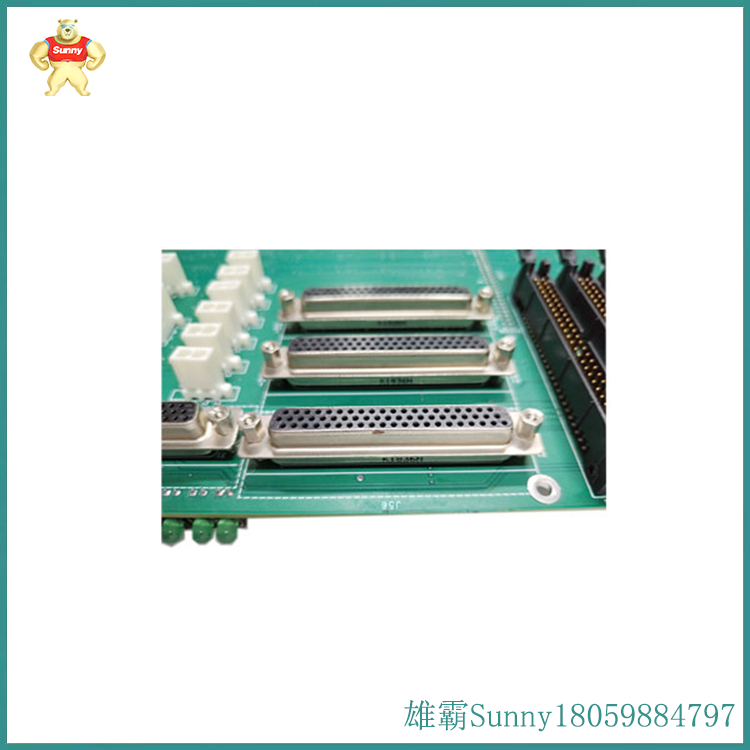

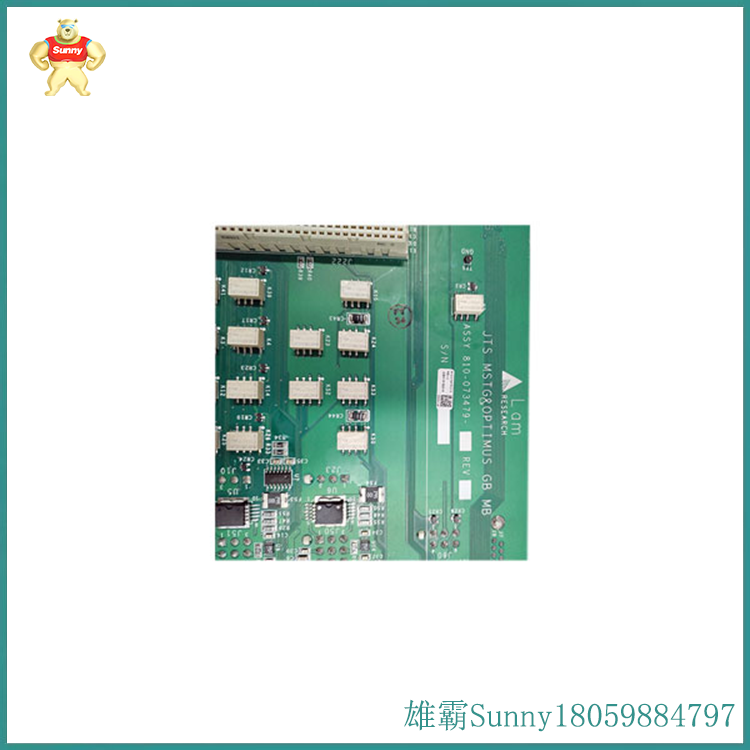

810-073479-215 电路板模块

线路板按层数来分的话分为单面板，双面板，和多层线路板三个大的分类。

首先是单面板，在最基本的PCB上，零件集中在其中- -面，导线则集中在另-面上。因为导线只出现在其中- -面,所以就称这种PCB叫作单面线路

板。单面板通常制作简单，造价低，但是缺点是无法应用于太复杂的产品上。

双面板是单面板的延伸，当单层布线不能满足电子产品的需要时，就要使用双面板了。双面都有覆铜有走线，并且可以通过过孔来导通两层之间的线

路，使之形成所需要的网络连接。

多层板是指具有三层以上的导电图形层与其间的绝缘材料以相隔层压而成，且其间导电图形按要求互连的印制板。多层线路板是电子信息技术向高速

度、多功能、大容量、小体积、薄型化、轻量化方向发展的产物。

线路板按特性来分的话分为软板(FPC),硬板(PCB),软硬结合板(FPCB)。

Circuit boards can be divided into three major categories based on the number of layers: single panel, double-sided board, and multi-layer circuit board.

Firstly, there is a single panel. On the most basic PCB, the parts are concentrated on one side and the wires are concentrated on the other side. Because wires only appear on one side, this type of PCB is called a single sided circuit

Board. Single panel production is usually simple and cost-effective, but the disadvantage is that it cannot be applied to products that are too complex.

Double panel is an extension of a single panel, and when single-layer wiring cannot meet the needs of electronic products, double-sided boards are used. Both sides are covered with copper and have wiring, and the wires between the two layers can be connected through vias

Road to form the required network connection.

Multilayer board refers to a printed board with three or more layers of conductive graphics and insulating materials between them, which are separated and laminated, and the conductive graphics between them are interconnected as required. Multilayer circuit boards are advancing towards high speed in electronic information technology

A product developed in the direction of high density, multifunctional, large capacity, small volume, thinness, and lightweight.

Circuit boards can be divided into soft board (FPC), hard board (PCB), and soft hard combination board (FPCB) based on their characteristics.
