超声波液位传感器 7ML5202-0EA0  于安装, 编程和维护

7ML5202-0EA0 超声波液位传感器,超声波液位计/物位计

7ML5202-0EA0 是一款小量程的一体式超声波物位计. 这款本安型变送器采用 2 线制的 4 到 20 mA 回路进行供电, 是高达 5 米(16.4 ft) 开放式/ 封闭容器内 液体, 浆料和散装物料测量的理想之选.

7ML5202-0EA0 显著优势

• 易于安装, 编程和维护

• 测量精确, 稳定可靠

• 提供有卫生型产品

• 采用已获专利的声智能回波处理技术

• 内置温度补偿功能

7ML5202-0EA0 应用范围

SITRANS LU180超声波液位传感器,7ML5202-0EA0超声波液位计/物位计基于声智能回波处理算法, 可有效确保物位测量数据的可靠性. 该技术通过滤波功能, 从声电噪音和搅拌器叶片运动所产生的虚假回波中准确地识别出物位的真实回波. 超声波脉冲传送到物料并返回的时间进行温度补偿后, 会转换为距离值进行显示和模拟输出。

• 主要应用领域: 化学品储罐, 滤池, 泥槽, 液体储罐, 食品应用。

SITRANS LU180主要参数

测量原理：超声波物位测量

量程：0.25 ... 5 m (0.8 ... 16.4 英尺)

频率：54 kHz

输出：mA 4 ... 20 mA

供电电压：12 ... 30 V DC, 0.1 A 浪涌

最大功耗0.75 W (25 mA, 24 V DC)

关于发货:默认顺丰，一般货物包邮，除特殊产品外。如有特别需求可按客户物流、快递发货。发货时间晚为当天下午17点之前!

关于产品:本公司所售商品均为库存/货期依据所需要的数量、询价时的库存情况!

店铺所有产品的标价均不是实价。具体以客服所做的为准!未与客服核实清楚的产品型号、拍下的，均不发货!

超声波液位传感器 7ML5202-0EA0  于安装, 编程和维护

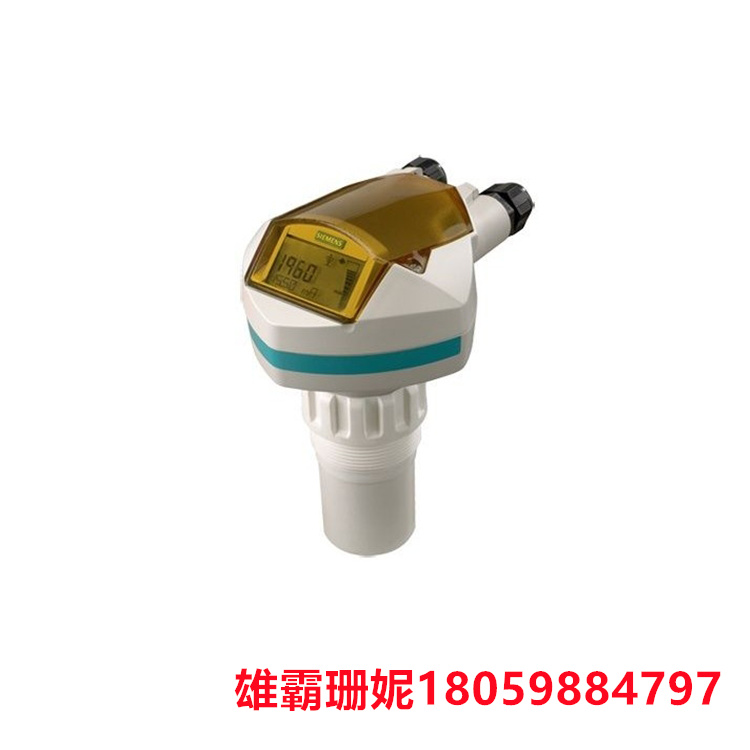

SITRANS LU180 ultrasonic level sensor,7ML5202-0EA0 ultrasonic level meter/level meter

SITRANS LU180 is an all-in-one ultrasonic level meter with a small range. Powered by a 2-wire 4 to 20 mA loop, this intrinsic safety transmitter is ideal for measuring liquids, slurries and bulk materials in open/closed containers up to 5 m (16.4 ft).

7ML5202-0EA0 Significant advantage

• Easy to install, program and maintain

• Accurate measurement, stable and reliable

• Provide hygienic products

• Adopt patented acoustic intelligent echo processing technology

• Built-in temperature compensation function

7ML5202-0EA0 Application range

SITRANS LU180 ultrasonic level sensor,7ML5202-0EA0 ultrasonic level meter/level meter based on acoustic intelligent echo processing algorithm, can effectively ensure the reliability of level measurement data. The technique can accurately identify the true echo of the object level from the false echo generated by the acoustic and electric noise and the movement of the agitator blade through the filtering function. After temperature compensation for the time of ultrasonic pulse transmission to the material and return, it will be converted to the distance value for display and analog output.

• Main application areas: chemical storage tank, filter, mud tank, liquid storage tank, food application.

SITRANS LU180 Specifies the main parameters

Measurement principle: ultrasonic level measurement

Range: 0.25... 5 m (0.8... 16.4 feet)

Frequency: 54 kHz

Output: mA 4... 20 mA

Supply voltage: 12... 30 V DC, 0.1 A surge

Maximum power consumption 0.75W (25 mA, 24 V DC)
