面板  PM2210 具有 128 x 128 像素的背光 LCD 显示屏

EasyLogic PM2210，功率和电能表，总谐波，LCD，脉冲，1级

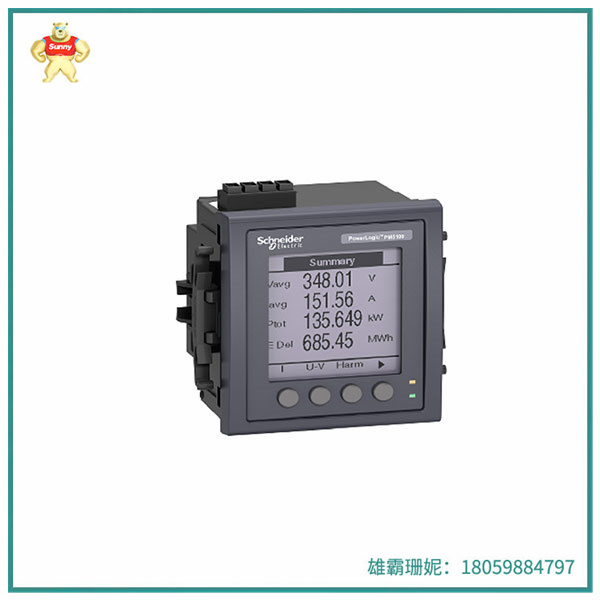

该器件是一款面板安装或嵌入式安装功率计，边框尺寸为 96mm x 96mm，具有 128 x 128 像素的背光 LCD 显示屏。该仪表按照符合 IEC 62053-21 标准的 1.0 级精度等级测量有功电能，采样率为每个周期 64 个样本。能够测量功率和能量的所有三个矢量，例如有功、视在和无功以及电压、电流、频率和功率因数。加上每相电流和电压的总谐波失真。该测量仪将在 50Hz 或 60Hz 网络频率下工作，并接受通用控制电源电压tage范围从 44 至 300 V 线路到中流或直流电压tage.该仪表的额定电流为 1A 或 5A 输入。它支持多达 13 种不同类型的布线方案，包括单相、两相或三相配置类型。相之间的测量电压范围为 35 至 480 V，线对线交流电为 45 至 65 Hz，而线与中性线之间的测量电压范围为 20 至 277 V。该仪表还具有一个数字脉冲输出，用于任何可根据不同能量缩放进行调节的能量参数。产品尺寸如下：宽 3.78 英寸（96 毫米）、深 2.16 英寸（54 毫米）、高 3.78 英寸（96 毫米），产品重量 10.58 盎司（300 克）。

PM2210"款面板安装"指的是将设备或组件安装在控制面板或其他面板上的过程。这种安装方式通常用于需要方便操作和控制的设备，例如电子设备、仪器仪表、工业控制系统等。

在款面板安装过程中，通常需要考虑以下几个方面：

1. 面板尺寸和布局：PM2210根据设备的尺寸和功能需求，选择合适的面板尺寸和布局。

2. 安装方式：根据设备的特点和面板的结构，选择合适的安装方式，例如螺丝固定、夹子固定、磁吸固定等。

3. 电气连接：根据设备的电气接口，选择合适的连接方式，例如插头连接、端子连接等。

4. 人机交互界面：PM2210根据设备的操作需求，设计合适的人机交互界面，例如按钮、显示屏、指示灯等。

5. 安全考虑：在安装过程中，需要考虑设备的安全性，例如电气绝缘、防静电等。

款面板安装可以提高设备的操作和控制便利性，同时也可以提高设备的美观度和集成度。

面板  PM2210 具有 128 x 128 像素的背光 LCD 显示屏

EasyLogic PM2210, Power and energy meter, total harmonics, LCD, Pulse, Level 1

The device is a panel mount or embedded mount power meter with a bezel size of 96mm x 96mm and a backlit LCD display of 128 x 128 pixels. The meter measures active energy in accordance with IEC 62053-21 Class 1.0 accuracy, with a sampling rate of 64 samples per cycle. Ability to measure all three vectors of power and energy, such as active, apparent, and reactive power as well as voltage, current, frequency, and power factor. Add the total harmonic distortion per phase of current and voltage. The meter will operate at 50Hz or 60Hz network frequencies and accept a universal control power supply voltage tage range from 44 to 300 V lines to mid-current or DC voltage tage. The meter is rated for 1A or 5A inputs. It supports up to 13 different types of cabling schemes, including single-phase, two-phase or three-phase configuration types. The measured voltage range between phases is 35 to 480 V, line-to-line AC is 45 to 65 Hz, and the measured voltage range between lines and neutral lines is 20 to 277 V. The meter also has a digital pulse output for any energy parameter that can be adjusted to different energy scales. Dimensions are as follows: width 3.78 inches (96 mm), depth 2.16 inches (54 mm), height 3.78 inches (96 mm), product weight 10.58 ounces (300 grams).

PM2210" Panel mounting "refers to the process of mounting a device or component on a control panel or other panel. This type of installation is usually used for equipment that requires easy operation and control, such as electronic equipment, instrumentation, industrial control systems, etc.

In the process of panel installation, the following aspects usually need to be considered:

1. Panel size and layout: PM2210 selects the appropriate panel size and layout according to the size and functional requirements of the device.

2. Installation method: According to the characteristics of the equipment and the structure of the panel, choose the appropriate installation method, such as screw fixing, clamp fixing, magnetic fixing, etc.

3. Electrical connection: Select the appropriate connection method according to the electrical interface of the device, such as plug connection and terminal connection.

4. Human-machine interface: PM2210 designs appropriate human-machine interface according to the operation requirements of the device, such as buttons, displays, and indicators.

5. Safety considerations: During the installation, you need to consider the security of the device, such as electrical insulation and anti-static electricity.

The panel installation can improve the operation and control convenience of the equipment, but also improve the aesthetics and integration of the equipment.
