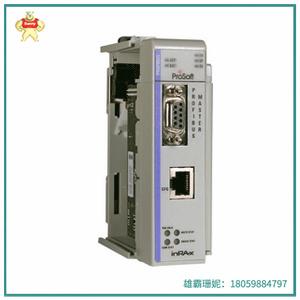

通信模块 MVI69-PDPS 用于连接PC机和MVI69模块进行配置

PROSOFT MVI69-PDPS PLC模块为广泛的应用提供无缝连接和数据交换功能。 它采用先进的技术，确保在苛刻的工业环境中高性能可靠地运行。 产品参数

—型号:MVI69-PDPS

—通信协议:Profibus DP、DP-v1—电源:5V DC

—工作温度:-40°℃~70℃

-尺寸:4.88"x 2.87" x 1.77"-重量:0.33磅

PROFIBUS DP slave通信模块

MVI69-PDPS

MVI69 PROFIBUS DP从站

通信模块允许CompactLogix lOcompatible处理器轻松地与profibus DP主设备接口。

特点和优点

PROFIBUS DP Slave协议驱动程序支持PROFIBUS vo Slave实现，在模块和之间提供强大的数据传输能力

CompactLogix处理器。用户可配置的数据映射和dport操作使界面易于使用和强大的数据传输工具。

在MVI69模块配置/调试串口用于连接PC机和MVI69模块进行配置、状态、监控和故障排除(随设备发货)。在PC上编辑完成后配置文件被下载并保存在mvi69模块上。

PROFIBUS DP Slave提供了多达244个字节的输入和输出数据访问单元的输入和输出图像，总共最多400个字节。这些输入和输出数据块由用户在模块的数据内存允许内映射最大的灵活性和数据传输与其他协议。

通信模块 MVI69-PDPS 用于连接PC机和MVI69模块进行配置

PROSOFT MVI69-PDPS PLC modules provide seamless connectivity and data exchange for a wide range of applications. It uses advanced technology to ensure high performance and reliable operation in demanding industrial environments. Product parameter

- Model :MVI69-PDPS

- Communication protocol :Profibus DP, DP-V1 - Power supply :5V DC

- Operating temperature :-40° C to 70 ° C

- Size :4.88"x 2.87" x 1.77"

- Weight :0.33 LBS

PROFIBUS DP slave communication module

MVI69-PDPS

MVI69 PROFIBUS DP Secondary station

The communication module allows the CompactLogix lOcompatible processor to interface easily with the profibus DP host device.

Features and advantages

The PROFIBUS DP Slave protocol driver supports the PROFIBUS vo Slave implementation, providing powerful data transmission capabilities between modules and

CompactLogix processor. User-configurable data mapping and dport operations make the interface easy to use and powerful data transfer tools.

in

MVI69 Module Configuration/Debugging serial port Connects a PC to the MVI69 module for configuration, status, monitoring, and troubleshooting (delivered with the device). After editing on PC

The configuration file is downloaded and saved on the mvi69 module.

PROFIBUS DP Slave provides up to 244 bytes of input and output data access to the input and output images of the unit, for a total of up to 400 bytes. These input and output data blocks are mapped by the user within the module's data memory allowed

Maximum flexibility and data transfer with other protocols.
