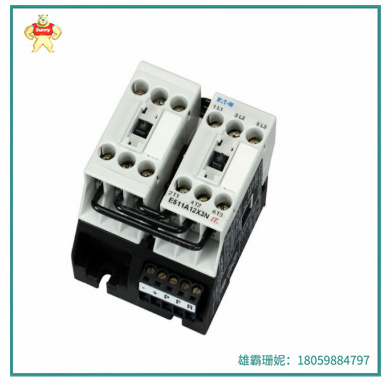

电子控制器件 E511A09X3N  用于自动控制电路中

产品介绍

EATON E511A09X3N 是一款高性能的电子继电器，广泛应用于各种电气控制系统中。它采用先进的电子技术，具有可靠性高、响应速度快、使用寿命长等优点，为用户提供了高质量的继电器解决方案。

技术说明

输入电压：24VDC

控制电压：250VAC

联系电阻：30mΩ

最大负载电流：10A

工作温度范围：-40°C 至 +85°C

E511A09X3N 电子继电器是一种电子控制器件，它具有控制系统（又称输入回路）和被控制系统（又称输出回路），通常应用于自动控制电路中，它实际上是用较小的电流去控制较大电流的一种“自动开关”。故在电路中起着自动调节、安全保护、转换电路等作用。

E511A09X3N 电子继电器的工作原理是：当输入量（如电压、电流、温度等）达到规定值时，使被控制的输出电路导通或断开的电器。具有动作快、工作稳定、使用寿命长、体积小等优点。广泛应用于电力保护、自动化、运动、遥控、测量和通信等装置中。

在使用电子继电器时，需要根据实际情况选择合适的输入电压和控制电压，并注意其最大负载电流和工作温度范围，以确保其正常工作和长期稳定性。

电子控制器件 E511A09X3N  用于自动控制电路中

Product introduction

The EATON E511A09X3N is a high-performance electronic relay used in a wide range of electrical control systems. It uses advanced electronic technology, has the advantages of high reliability, fast response, long service life, etc., to provide users with high-quality relay solutions.

Technical specification

Input voltage: 24VDC

Control voltage: 250VAC

Contact resistance: 30mΩ

Maximum load current: 10A

Operating temperature range: -40°C to +85°C

E511A09X3N electronic relay is an electronic control device, it has a control system (also known as the input loop) and the controlled system (also known as the output loop), usually used in automatic control circuit, it is actually a small current to control the larger current of an "automatic switch". Therefore, it plays the role of automatic regulation, safety protection and conversion circuit in the circuit.

The working principle of E511A09X3N electronic relay is: when the input amount (such as voltage, current, temperature, etc.) reaches the specified value, the controlled output circuit is switched on or disconnected. It has the advantages of fast action, stable operation, long service life and small size. Widely used in power protection, automation, motion, remote control, measurement and communication devices.

When using electronic relays, it is necessary to select the appropriate input voltage and control voltage according to the actual situation, and pay attention to its maximum load current and operating temperature range to ensure its normal operation and long-term stability.
