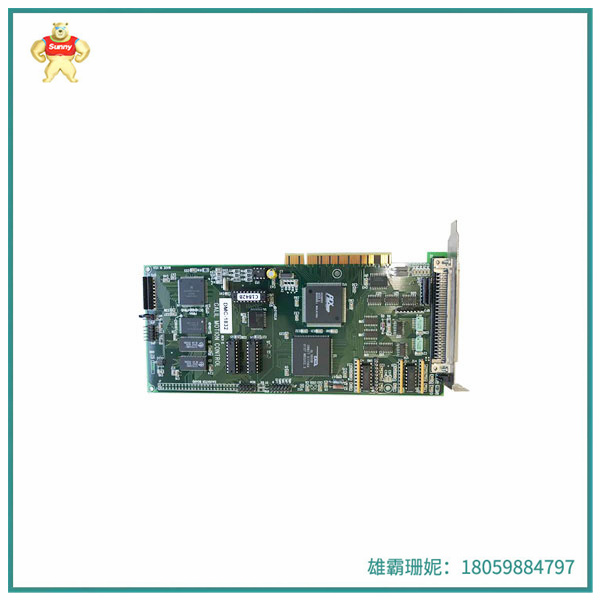

总线运动控制器 DMC-1832  可以对任何运动模式进行编程

DMC-18x2 系列是 PCI 总线运动控制器，专为成本最敏感的应用而设计。DMC-18x2 控制器支持 1 至 4 轴格式，并允许控制任意轴组合上的步进电机或伺服电机。可以对任何运动模式进行编程，包括线性和圆弧插补、轮廓、电子齿轮和 ecam。为了最大限度地降低成本，DMC-18x2 不提供以下功能：5 到 8 轴控制、输入上的光学隔离、双编码器输入以及辅助 FIFO 和 DPRAM 通信通道。如果您需要这些功能，请选择 DMC-18x6 Accelera PCI 控制器。与所有 Galil 控制器一样，DMC-18x2 的编程通过两个字母的直观命令和一整套软件工具（如用于伺服调整和分析的 GDK）进行了简化。

特征

1 至 4 轴版本的 PCI 卡：DMC-18x2，其中 x=1、2、3、4 轴

用户可针对任意轴组合上的步进电机或伺服电机进行配置

伺服系统接受高达 12 MHz 的编码器频率，步进器输出高达 3 MHz 的脉冲

PID补偿，包括速度和加速度前馈、积分限制、陷波滤波器和低通滤波器。每轴 62.5 微秒的采样时间

运动模式包括点动、点对点定位、轮廓、线性和圆弧插补、电子齿轮和 ECAM。椭圆缩放、拐角处减速、无限段进给和进给率覆盖

多任务处理，可同时执行多达 8 个应用程序

用于应用程序、变量和数组的非易失性存储器

每个轴都接受原点输入以及正向和反向限制

8 个非专用输入和 8 个输出

可扩展 64 个 I/O，可选配 DB-14064

高速位置锁存器和输出比较

高密度屏蔽电缆将 EMI 降至最低

直接连接到 AMP-19540 4 轴驱动器，提供经济高效的多轴控制器/驱动器解决方案。驱动有刷或无刷舵机，每个舵机的功率高达 500 瓦。或者，使用 ICM-2900 互连模块连接到任何功率范围的外部驱动器

适用于 Windows、QNX 和 Linux 的通信驱动程序

提供自定义硬件和固件选项

总线运动控制器 DMC-1832  可以对任何运动模式进行编程

The DMC-18x2 series is a PCI bus motion controller designed for the most cost-sensitive applications. The DMC-18x2 controller supports 1 to 4 axis formats and allows control of stepper or servo motors on any axis combination. Any motion mode can be programmed, including linear and circular interpolation, contour, electronic gear, and ecam. To minimize costs, the DMC-18x2 does not offer the following features: 5 to 8 axis control, optical isolation on inputs, dual encoder inputs, and auxiliary FIFO and DPRAM communication channels. If you need these features, choose the DMC-18x6 Accelera PCI controller. As with all Galil controllers, programming for the DMC-18x2 is simplified with two-letter intuitive commands and a full suite of software tools such as GDK for servo tuning and analysis.

trait

1 to 4-axis versions of PCI cards: DMC-18x2, where x=1, 2, 3, 4 axes

Users can configure stepper or servo motors on any combination of axes

The servo system accepts encoder frequencies up to 12 MHz, and the stepper outputs pulses up to 3 MHz

PID compensation, including speed and acceleration feedforward, integral restriction, notch filter and low-pass filter. Sampling time of 62.5 microseconds per axis

Motion modes include point-to-point positioning, contour, linear and circular interpolation, electronic gear, and ECAM. Ellipse scaling, corner deceleration, infinite feed and feed rate coverage

Multitasking, can run up to 8 applications at the same time

Nonvolatile memory for applications, variables, and arrays

Each axis accepts origin inputs and forward and reverse limits

8 non-dedicated inputs and 8 outputs

Expandable up to 64 I/ OS, optional DB-14064

High-speed position latches and output comparison

High density shielded cable minimizes EMI

Direct connection to the AMP-19540 4-axis driver provides a cost-effective multi-axis controller/driver solution. Drive brushed or brushless servos with power up to 500 watts each. Alternatively, use the ICM-2900 interconnect module to connect to external drives in any power range

Communication drivers for Windows, QNX and Linux

Provides custom hardware and firmware options
