0-60031-5  旋转变压器  该组件有一个附带的窄面板

产品描述

0-60031-5 I/O 旋转变压器驱动 PMI 模块

0-60031-5 是 Reliance 制造的电路板，作为其各种驱动系统的组件，最常见的是 Automate 系列驱动器。 0-60031-5 被认为是停产部件，不再处于生产状态。它通常被标记为 Reliance 部件。然而，公司结构的变化将信实电气的这一部分与其他制造商合并。

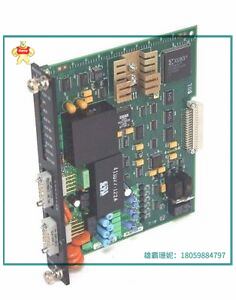

0-60031-5是一款旋转变压器和驱动I/O PMI模块。该组件有一个附带的窄面板，其下半部分有两个母插头连接器。它们被标记为“旋转变压器反馈”和“驱动 I/O”。 该板还具有 9 个 LED 指示灯（以 2 个绿色、1 个红色、5 个绿色、1 个红色的模式安装）。它们被标记为 fdbk ok、rpi、mcr、aux in1、aux in2、auxin3、aux in4、auxin5 和 aux out。

0-60031-5 板组件包括一个位于后边缘中心的多针直角接口连接器。它有三个继电器、一个电感线圈、一个变压器、盘式电容器、高压电容器、晶体管、电阻器和二极管。该板有一个安装在散热器内的 3000uV 双极运算放大器。它位于电路板的左侧边缘。它还拥有超过 35 个集成电路，包括现场可编程门阵列。

0-60031-5电路板（Printed Circuit Board，PCB）是一种用于电子设备的平面电路板，它是由导电材料（通常是铜箔）和绝缘材料（通常是玻璃纤维）组成的。电路板上的导电线路连接了各种电子元件，如集成电路、电阻、电容、电感等，以实现电子设备的功能。

0-60031-5电路板的制作过程通常包括设计、制版、蚀刻、钻孔、插件、焊接、测试等环节。在设计阶段，工程师使用电路设计软件设计电路板的导电线路和元件布局。制版是将设计好的电路板图形转移到电路板上的过程，通常使用光刻技术。蚀刻是将未被覆盖的铜箔蚀刻掉，留下所需的导电线路。钻孔是在电路板上钻出用于安装元件的小孔。插件是将元件插入电路板上的小孔中。焊接是将元件与电路板上的导电线路连接起来。测试是检查电路板是否符合设计要求。

电路板广泛应用于各种电子设备，如计算机、手机、电视、家用电器、工业控制设备等。它们在电子设备中起到了连接和支撑电子元件的作用，同时也提供了电子元件之间的信号传输路径。

Product description

0-60031-5 I/O rotary transformer drives the PMI module

The 0-60031-5 is a circuit board manufactured by Reliance as a component in its various drive systems, most commonly the Automate series drives. 0-60031-5 is considered discontinued and is no longer in production. It is often labeled as a Reliance component. However, a change in the corporate structure merged this part of Reliance Electric with other manufacturers. The part you are replacing may have originally been shipped from Baldor-Reliance or Asea Brown Boveri.

The 0-60031-5 is a rotary transformer and drive I/O PMI module. The assembly has an attached narrow panel with two female plug connectors in its lower half. They are labeled "Rotary transformer Feedback" and "Drive I/O." The board also features nine LED indicators (installed in two green, one red, five green, and one red modes). They are labeled fdbk ok, rpi, mcr, aux in1, aux in2, auxin3, aux in4, auxin5, and aux out.

The 0-60031-5 board assembly includes a multi-pin right Angle interface connector located in the center of the back edge. It has three relays, an inductor coil, a transformer, disk capacitors, high-voltage capacitors, transistors, resistors, and diodes. The board has a 3000uV bipolar operational amplifier mounted in a radiator. It is located on the left edge of the board. It also has more than 35 integrated circuits, including field programmable gate arrays.

The 0-60031-5 Printed Circuit Board (PCB) is a flat circuit board for electronic devices, which is composed of a conductive material (usually copper foil) and an insulating material (usually glass fiber). The conductive circuit on the circuit board connects various electronic components, such as integrated circuits, resistors, capacitors, inductors, etc., to achieve the functions of electronic devices.

0-60031-5 The production process of the circuit board usually includes design, plate making, etching, drilling, plug-in, welding, testing and other links. During the design phase, engineers use circuit design software to design the circuit board's conductive wiring and component layout. Plate making is the process of transferring a designed circuit board pattern onto a circuit board, usually using lithography. Etching is the etching away of the copper foil that is not covered, leaving the required conductive lines. Drilling is the process of drilling small holes in the circuit board for mounting components. Plugins insert components into small holes in the circuit board. Welding is the connection of components to conductive lines on the circuit board. The test is to check whether the circuit board meets the design requirements.

Circuit boards are widely used in various electronic equipment, such as computers, mobile phones, televisions, household appliances, industrial control equipment and so on. They play a role in connecting and supporting electronic components in electronic devices, and also provide a signal transmission path between electronic components.
