0-60029-1 电源变换器 控制电子元件的开关状态来实现电源的转换

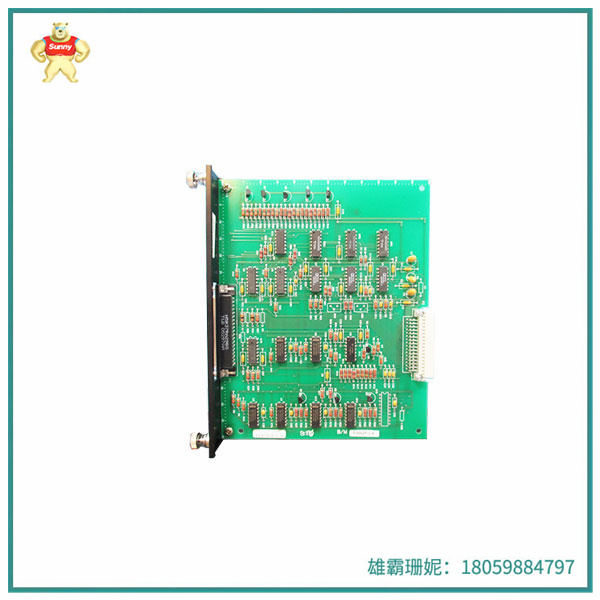

0-60029-1 RELIANCE ELECTRIC电源变换器

产品参数

品牌: RELIANCE ELECTRIC

型号: 0-60029-1

产品规格

输入电压: 120V

输出电压: 240V

最大输出功率: 10 kW

频率: 50/60 Hz

尺寸: 10 x 6 x 4 英寸

重量: 5 磅

应用领域

该产品广泛应用于工业自动化、机器人、数控机床、电力、矿山、石油化工等领域。

电源变换器的工作原理根据不同类型的变换器而有所不同。以下是一些常见电源变换器的工作原理：

1. 交流-直流变换器（AC-DC 变换器）：0-60029-1交流-直流变换器将交流电转换为直流电。它通常包括变压器、整流器和滤波器等组件。变压器将输入的交流电降压，整流器将交流电转换为脉动直流电，而滤波器则用于平滑输出的直流电。

2. 直流-交流变换器（DC-AC 变换器）：0-60029-1直流-交流变换器将直流电转换为交流电。它通常包括逆变器和滤波器等组件。逆变器将直流电转换为交流电，而滤波器则用于平滑输出的交流电。

3. 直流-直流变换器（DC-DC 变换器）：直流-直流变换器将一种直流电电压转换为另一种直流电电压。它通常包括开关管、电感、电容和控制电路等组件。通过控制开关管的开关频率和占空比，可以调整输出电压的大小。

4. 交流-交流变换器（AC-AC 变换器）0-60029-1交流-交流变换器将一种交流电电压和频率转换为另一种交流电电压和频率。它通常包括变压器、整流器、逆变器和滤波器等组件。变压器将输入的交流电降压，整流器将交流电转换为脉动直流电，逆变器将直流电转换为交流电，而滤波器则用于平滑输出的交流电。

0-60029-1电源变换器的工作原理基于电磁学和电子学的基本原理，通过控制电子元件的开关状态来实现电源的转换。具体的工作原理和设计会因不同类型的变换器而有所差异。

0-60029-1 电源变换器 控制电子元件的开关状态来实现电源的转换

0-60029-1 RELIANCE ELECTRIC Power converter

Product parameter

Brand: RELIANCE ELECTRIC

Model: 0-60029-1

Product specification

Input voltage: 120V

Output voltage: 240V

Maximum output power: 10 kW

Frequency: 50/60 Hz

Size: 10 x 6 x 4 inches

Weight: 5 pounds

Application field

The products are widely used in industrial automation, robots, CNC machine tools, electric power, mining, petrochemical and other fields.

The working principle of power converters varies according to different types of converters. Here's how some common power converters work:

1. AC-DC converter (AC-DC converter) : 0-60029-1 AC-DC converter converts alternating current to direct current. It usually includes components such as transformers, rectifiers, and filters. The transformer depressurizes the input AC, the rectifier converts the AC to pulsating DC, and the filter is used to smooth the output DC.

2. DC-AC converter (DC-AC converter) : 0-60029-1 DC-AC converter converts direct current into alternating current. It usually includes components such as inverters and filters. The inverter converts direct current to alternating current, while the filter is used to smooth the output alternating current.

3. DC-DC converter (DC-DC converter) : The DC-DC converter converts a direct current voltage into another direct current voltage. It usually includes components such as switching tubes, inductors, capacitors and control circuits. By controlling the switching frequency and duty cycle of the switching tube, the output voltage can be adjusted.

4. Ac-ac converter (AC-AC converter) 0-60029-1 AC-AC converter converts one AC voltage and frequency to another AC voltage and frequency. It usually includes components such as transformers, rectifiers, inverters and filters. The transformer depressurizes the input AC, the rectifier converts the AC to pulsating DC, the inverter converts the DC to AC, and the filter is used to smooth the output AC.

The working principle of the 0-60029-1 power converter is based on the basic principles of electromagnetism and electronics, and the power is converted by controlling the switching state of the electronic components. The specific working principle and design will vary depending on the type of converter.
