P70360-SDN  步进驱动器 用于与外部设备进行连接和通信

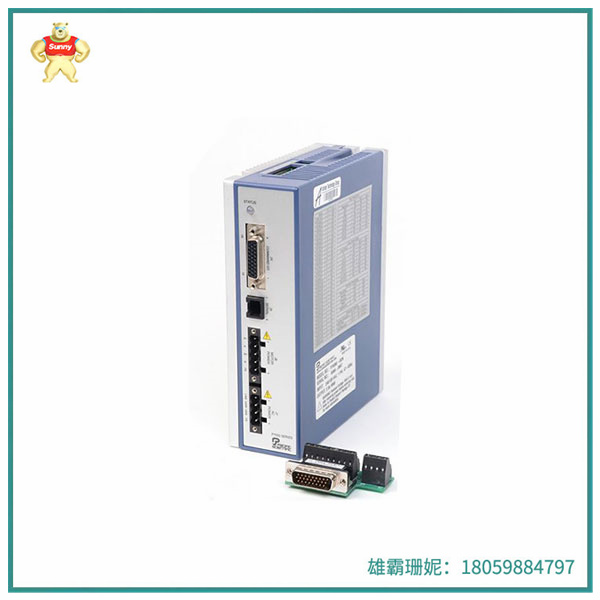

科尔摩根 / Pacific Scientific P70360-SDN 高性能微步进驱动器

配置： P7： P7000 系列

• 03：

2.5 A有效值连续，3.5 A有效值峰值

• 6：120/240 VAC

• 0：无电气选项

• SD：仅

步进/方向 N：无反馈

P7000 系列是雷赛智能的步进驱动器，可为客户提供高性价比且稳定可靠的

步进驱动器是一种用于控制步进电机运行的电子设备。它可以将电信号转换为电机的运动，从而实现精确的位置控制和速度控制。

P70360-SDN步进驱动器通常由电源模块、控制模块、驱动模块和接口模块组成。电源模块为驱动器提供电力，控制模块接收外部控制信号并将其转换为电机的运动指令，驱动模块将控制信号转换为电机的实际运动，接口模块用于与外部设备进行连接和通信。

步进驱动器的优点包括高精度、高效率、低噪音、低成本等，因此在自动化设备、机器人、医疗设备、印刷设备等领域得到了广泛应用。

解决方案。该系列驱动器具有以下特点：

1. 采用最新 32 位 DSP 技术；

2. 供电电压范围：AC110V～220V；

3. 多种细分可选（128 细分）；

4. 输入输出信号光电隔离；

5. 具有过压、欠压、短路、过热等保护功能；

6. 可驱动 42、57 及 86 系列两相混合式步进电机。

P7000 系列驱动器广泛应用于雕刻机、激光打标机、纺织机械、剥线机、包装机械、广告设备、医疗设备、舞台灯光、电子设备、机器人等自动化设备。

P70360-SDN  步进驱动器 用于与外部设备进行连接和通信

Kollmorgen/Pacific Scientific P70360-SDN High performance microstepper driver

Configuration: P7: P7000 series

• 03:

2.5A continuous RMS and 3.5A peak RMS

• 6:120/240 VAC

• 0: No electrical option

• SD: Only

Step/direction N: no feedback is provided

The P7000 series is an intelligent stepper drive from Leiser that provides customers with cost-effective, stable and reliable performance

A stepper driver is an electronic device used to control the operation of a stepper motor. It can convert the electrical signal into the movement of the motor, thus achieving precise position control and speed control.

The P70360-SDN stepper driver usually consists of a power module, a control module, a drive module and an interface module. The power module provides power to the driver, the control module receives the external control signal and converts it into the motor's motion instructions, the drive module converts the control signal into the actual motion of the motor, and the interface module is used to connect and communicate with external devices.

The advantages of stepper drivers include high precision, high efficiency, low noise, low cost, etc., so they are widely used in automation equipment, robots, medical equipment, printing equipment and other fields.

The solution. This series of drives has the following features:

1. Adopt the latest 32-bit DSP technology;

2. Supply voltage range: AC110V ~ 220V;

3. Multiple subdivisions can be selected (128 subdivisions);

4. Photoelectric isolation of input and output signals;

5. With over voltage, under voltage, short circuit, overheating and other protection functions;

6. It can drive 42, 57 and 86 series two-phase hybrid stepping motors.

P7000 series drivers are widely used in engraving machine, laser marking machine, textile machinery, wire stripping machine, packaging machinery, advertising equipment, medical equipment, stage lighting, electronic equipment, robots and other automation equipment.
