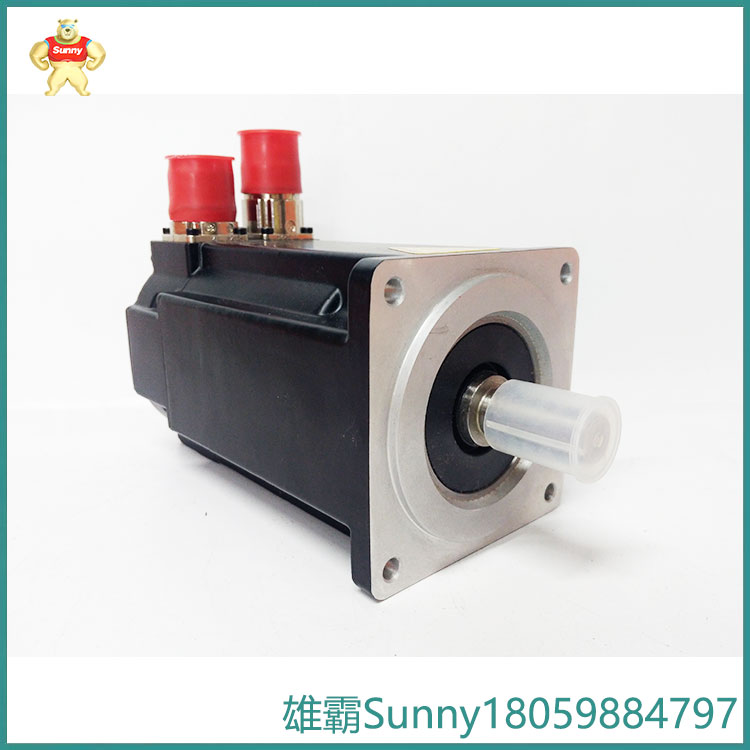

AKM42E-EKGNR-01 KOLLMORGEN 直流无刷伺服电机

产品技术要求：

AKM42E-EKGNR-01 直流无刷伺服电机预装分辨率。(16位;2-pin;空心轴)+ 31.75mm高开键槽轴+轴密封+ 2个轴套。-绕组型E - Kollmorgen (AKM系列)- 640Vdc最大母线电压-额定输出1.14kW / 1.53HP -失速扭矩3.42Nm / 30.3lb-in -公称扭矩2.72Nm -转速4000rpm - 2 x直M23连接器- IP67 - 84x84mm法兰-相当于AKM42EEKGNR01

额定电流2.74手臂连续(100°C绕组ΔT)在失速

额定有功功率(kW)0.59kW (320Vdc母线电压)

1.03kW (560Vdc母线电压)

1.14kW (640Vdc母线电压)

额定功率(HP)0.79HP (320Vdc母线电压)

1.38HP (560Vdc母线电压)

1.53HP (640Vdc母线电压)

AKM42E-EKGNR-01 is a motor - AC server motor series produced by Koermmorgan Company akm series motor frame size 84mm rotor pile length 2 E-type winding mount and shaft nema mount, open keyway straight mounted motor IP65 connector without brake feedback device analyzer custom, Seal standard motor with Teflon shaft seal.
