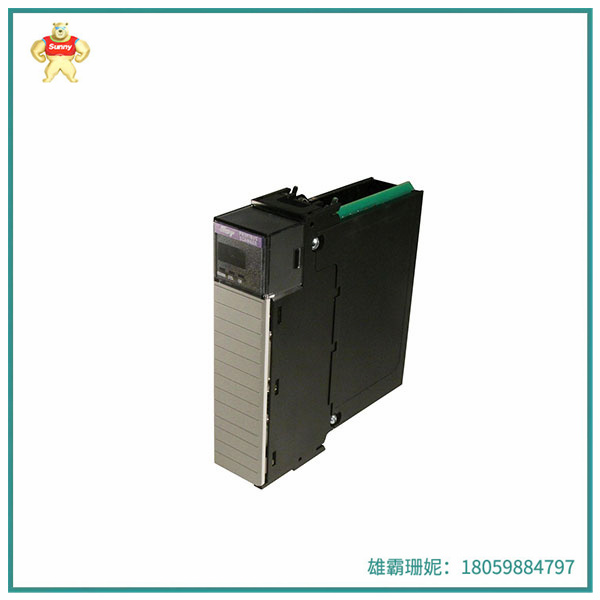

SST-PB3-CLX-RLL 通信模块  进行远程配置和监控

SST-PB3-CLX-RLL用于罗克韦尔ControlLogix的SSTTM通信模块可最大限度增强网络灵活性，实现在PROFIBUS网络和罗克韦尔ControlLogix之间的快速连接。

特性和优点

把罗克韦尔的ControlLogix连接到PROFIBUS网络

完全融入罗克韦尔自动化环境

一通过罗克韦尔RSLinxTM进行远程配置和监控

—提供罗克韦尔RSLogix5000附加配置文件进行输入输出的直接映射，无需使用梯形逻辑图来描绘配置以及描述模块和CLX处理器之间的数据传输

保形涂层版本:

一保护电路板,使其免受潮湿和污染物侵害

CLXT模块是抗恶劣环境的重型组件,它能适应更大的温度范围并涂有保形涂层.可与罗克韦尔XT系列PLC配套使用

CLXT模块:

除了具备SST-PB3-CLX-RLL的性能，

还具有:

保形涂层eXTreme器件

工作环境温度-25至70摄氏度

产品规格说明

高速确定性通信易于诊断:

内置LED指示灯和4字符显示同时管理DP主站和从站模式

允许在运行模式下用PLC更改PROFIBUS配置

在扫描列表中动态添加/删除PROFIBUS从站

CommDTM驱动程序,用于FDT框架工程设计软件(PACTware软件TM、FieldCare软件TM、FieldMateTM等)

自动启动（配置保存在闪存中)工程设计工具:

—配置控制台—测试和诊断工具

兼容协议

主站DP-V0 1和2类主站DP-V1 1和2类从站DP-Vo

应用场合

汽车组装线物料搬运

供水和废水处理农产食品业石油和天然气医药

机器制造业海事

采矿业

SST-PB3-CLX-RLL 通信模块  进行远程配置和监控

The SST-PB3-CLX-RLL SSTTM communication module for Rockwell ControlLogix maximizes network flexibility and enables fast connections between PROFIBUS networks and Rockwell ControlLogix.

Features and benefits

Connect Rockwell's ControlLogix to the PROFIBUS network

Fully integrated into the Rockwell Automation environment

Remote configuration and monitoring via Rockwell RSLinxTM

- Provides the Rockwell RSLogix5000 additional configuration file for direct mapping of inputs and outputs, eliminating the need for ladder logic diagrams to depict configurations and describe data transfers between modules and CLX processors

Conformal coating version:

One protects the circuit board from moisture and contaminants

The CLXT module is a heavy-duty component that resists harsh environments, ADAPTS to a wider temperature range and is coated with a conformal coating. Can be used with Rockwell XT series PLC

CLXT Module:

In addition to the performance of SST-PB3-CLX-RLL,

Also has:

Conformal coated eXTreme devices

Operating ambient temperature -25 to 70 degrees Celsius

Product specification

High-speed deterministic communication is easy to diagnose:

Built-in LED indicator and 4-character display manage DP master and slave modes simultaneously

Allows you to change the PROFIBUS configuration with a PLC in run mode

Dynamically add/remove PROFIBUS slaves from the scan list

CommDTM driver for FDT framework engineering design software (PACTware Software TM, FieldCare Software TM, FieldMateTM, etc.)

Auto start (configuration saved in flash) Engineering design tools:

- Configuration Console - Test and diagnostic tools

Compatible protocol

Master DP-V0 Class 1 and 2 Master DP-V1 Class 1 and 2 Slave DP-Vo

Application situation

Automotive assembly line material handling

Water supply and wastewater treatment Agriculture Food industry Oil and Gas Medicine

Machine building Maritime

Mining industry
