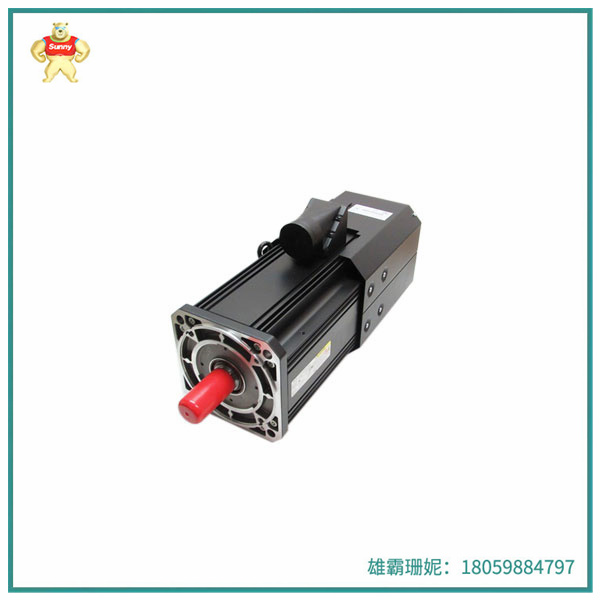

MSK101E-0200-NN-M1-AG2-NNNN 伺服电机  具有128个增量

MSK101E-0200-NN-M1-AG2-NNNN MSK系列大功率电机具有200的绕组代码和一个光学编码器

博世英德拉马特力士乐公司生产的MSK101E-0200-NN-M1-AG2-NNNN是MSK系列中的一款大功率电机。MSK101E-0200-NN-M1-AG2-NNNN具有200的绕组代码和一个光学编码器，多匝绝对Hiperface，具有128个增量。这种伺服电机具有自然对流的冷却模式和带轴密封环的平轴(标准)。

伺服电机是指在伺服系统中控制机械元件运转的发动机，是一种补助马达间接变速装置。

MSK101E-0200-NN-M1-AG2-NNNN伺服电机可以控制速度，位置精度非常准确，可以将电压信号转化为转矩和转速以驱动控制对象。伺服电机转子转速受输入信号控制，并能快速反应，在自动控制系统中，用作执行元件，且具有机电时间常数小、线性度高等特性，可把所收到的电信号转换成电动机轴上的角位移或角速度输出。分为直流和交流伺服电动机两大类，其主要特点是，当信号电压为零时无自转现象，转速随着转矩的增加而匀速下降。

伺服电机的主要零件包括：

机座：MSK101E-0200-NN-M1-AG2-NNNN机座结构随电动机冷却方式、防护型式、安装方式和用途而异。按其材料分类，有铸铁、铸铝和钢板结构等几种。

铁心：铁心包括定子铁心和转子铁心，作用与三相异步电动机一样，是用来构成电动机的磁路。

绕组：MSK101E-0200-NN-M1-AG2-NNNN绕组是电动机的电路部分，用以通过电流而产生磁场。

端盖：端盖套在电动机的定子铁心上，将电动机的转子铁心、轴等内部零件封闭起来，同时与机座配合，构成电动机的总体造型。

轴承：轴承装在支承端盖与转子轴伸之间，使转子轴与端盖轴承孔配合。

MSK101E-0200-NN-M1-AG2-NNNN 伺服电机  具有128个增量

MSK101E-0200-NN-M1-AG2-NNNN MSK series High power motors have a 200 winding code and an optical encoder

The MSK101E-0200-NN-M1-AG2-NNNN produced by Bosch Indra Matrex is a high-power motor in the MSK series. The MSK101E-0200-NN-M1-AG2-NNNN has a winding code of 200 and an optical encoder with a multi-turn absolute Hiperface with 128 increments. This servo motor has a natural convection cooling mode and a flat shaft with a shaft seal ring (standard).

Servo motor refers to the engine that controls the operation of mechanical components in the servo system, which is a supplementary motor indirect transmission device.

The MSK101E-0200-NN-M1-AG2-NNNN servo motor can control the speed, position accuracy is very accurate, can convert the voltage signal into torque and speed to drive the control object. Servo motor rotor speed is controlled by the input signal, and can react quickly, in the automatic control system, used as an executive component, and has a small electromechanical time constant, high linearity characteristics, the received electrical signal can be converted into the angular displacement or angular speed output on the motor shaft. Divided into DC and AC servomotor two categories, its main feature is that when the signal voltage is zero, there is no rotation phenomenon, and the speed decreases with the increase of torque.

The main parts of the servo motor include:

Frame: MSK101E-0200-NN-M1-AG2-NNNN frame structure varies with the cooling method, protection type, installation method and use of the motor. According to its material classification, there are cast iron, cast aluminum and steel plate structure.

Core: The core includes the stator core and the rotor core, and the role is the same as the three-phase asynchronous motor, is used to form the magnetic circuit of the motor.

Winding: MSK101E-0200-NN-M1-AG2-NNNN winding is the circuit part of the motor, which is used to generate a magnetic field through current.

End cover: The end cover is covered on the stator core of the motor, the rotor core, shaft and other internal parts of the motor are closed, and at the same time, it is matched with the frame to form the overall shape of the motor.

Bearing: The bearing is installed between the supporting end cover and the rotor shaft extension, so that the rotor shaft is matched with the bearing hole of the end cover.
