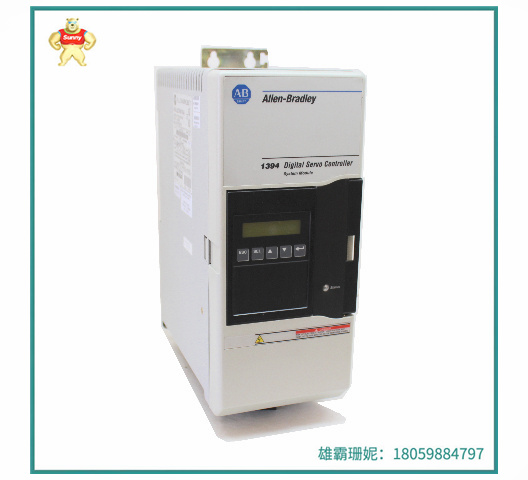

1394C-SJT22-A  伺服控制器 具有模拟模块功能和10伏DC模拟接口

型号:1394C-SJT22-A

描述:Allen-Bradley 伺服控制器1394C-SJT22-A是一个具有终端、滤波(EMI)和智能电源系列增强功能、模拟输入(10 VDC)、22千瓦额定功率和360-480AC伏输入电压的系统。

1394C-SJT22-A是一个艾伦-布拉德利伺服控制器，具有模拟模块功能和10伏DC模拟接口。它是一个C系列系统模块，具有智能电源、EMI滤波和改进的终端等特性。此外，这个系统可以支持多达四个轴，并作为速度或扭矩控制器工作。它还配有Bulletin 1201人机界面模块，允许自动调谐和快速启动。

伺服控制器是用来控制伺服电机的一种控制器，其作用类似于变频器作用于普通交流马达，属于伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的高端产品。

1394C-SJT22-A伺服控制器由速度控制单元、速度监测单元、模拟量输入单元、位置监测单元、脉冲发生器单元和驱动单元等组成。

伺服电机的工作原理可以简单概括为：输入控制信号→伺服控制器→伺服电机→输出运动。

1394C-SJT22-A伺服系统由伺服电机、伺服控制器和反馈装置组成。伺服电机电动机负责产生机械输出力和扭矩，编码器则用于测量电机的位置和转速，并将测量结果反馈给伺服控制器。通过不断比较编码器的测量值和控制信号，伺服控制器可以实时调整电机的输出，以保持所需的位置和速度。

1394C-SJT22-A  伺服控制器 具有模拟模块功能和10伏DC模拟接口

Model :1394C-SJT22-A

Description :Allen-Bradley Servo Controller 1394C-SJT22-A is a system with terminal, filter (EMI) and smart power family enhancements, analog input (10 VDC), 22 kW rated power, and 360-480AC volts input voltage.

The 1394C-SJT22-A is an Allen-Bradley servo controller with analog module functionality and a 10-volt DC analog interface. It is a C Series system module with features such as intelligent power supply, EMI filtering and improved terminal. In addition, this system can support up to four axes and work as a speed or torque controller. It also comes with a Bulletin 1201 human-machine interface module that allows for automatic tuning and fast startup.

Servo controller is a controller used to control the servo motor, its role is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.

1394C-SJT22-A servo controller is composed of speed control unit, speed monitoring unit, analog input unit, position monitoring unit, pulse generator unit and drive unit.

The working principle of the servo motor can be simply summarized as: input control signal → servo controller → servo motor → output motion.

1394C-SJT22-A servo system is composed of servo motor, servo controller and feedback device. The motor is responsible for generating the mechanical output force and torque, while the encoder measures the position and speed of the motor and feeds the measurement results back to the servo controller. By constantly comparing the encoder's measurements and control signals, the servo controller can adjust the output of the motor in real time to maintain the desired position and speed.
