1336-BDB-SP39D  栅极驱动板 为驱动器的主板和隔离板供电

产品描述

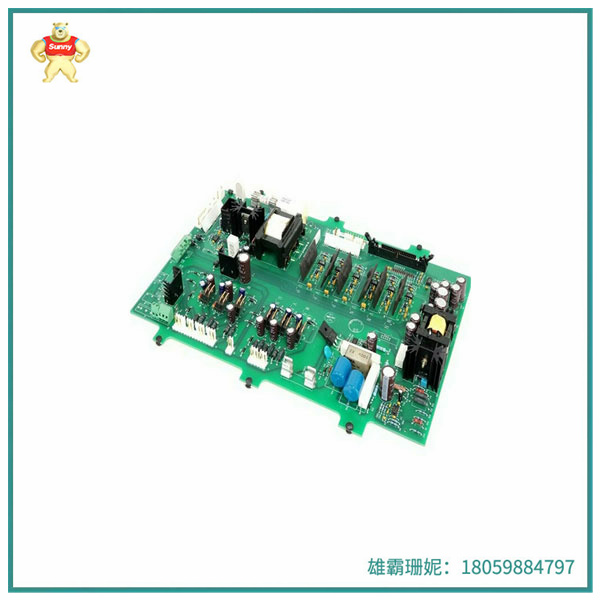

Allen-Bradley 1336-BDB-SP39D是Bulletin 1336驱动器的组件。该装置是一款保形涂层PCB栅极驱动器，工作电压类别为460VAC.200HP，兼容1336 Plus、Plus ll、Impact和Force驱动器。

特征

高效，稳定

精度高，噪音低

耐用性强

1336-BDB-SP39D A-B栅极驱动PC板是一款高性能，高稳定性的驱动PC板，能够提供稳定和可靠的电力供应，以满足各种电子设备的需求.

Allen-Bradley 1336-BDB-SP39D是罗克韦尔自动化制造的栅极驱动PC板，也称为74101-169-82部件。该特定PC板具有460V交流输入电压以及250HP额定值。它可与具有E机架尺寸和25OHP输出的1336驱动器—起使用。

Alen-Bradley 1336-BDB-SP39D是由罗克韦尔自动化制造的栅极驱动PC板，也称为74101-169-82部件。该特定PC板具有46IV交流输入电压，以及250HP额定值。它可以与具有E机架大小和250HP输出的1336驱动器一起使用。每个136驱动器上只能安装一个1336-BDB-SP39D印刷电路板套件。1336系列有五种通用类型的驱动器，分别是FORCE、PLUS、PLUSII、CLASSIC和IMPACT驱动器。这些变频器与HP额定值范围为3至800HP的交流变频器兼容，其中PLUS、 PlLUSl和CLASSIC变频器用于需要一般性能的应用，而MPACT和FORCE变频器则用于高性能操作。这些驱动器(包括1336-BDB-SP39D印刷电路板)具有NEMA1、4型、12型典型外壳额定值。为了保护驱动器，它配备了各种安全功能，例效P欠压和过压、输出短路、输出接地故障和电机过载。它们还带有驱动器满子30上的硬件使能，这是一个不可编程的输入。打开此输入将导致133-8DB-SP39D驱动器中断，并经历滑行停止，而不是遵循所选的停止模式。它们还具有UL面板识别，以及各种通信端口，例伽如增强型DeviceNets端口、DeviceNet端口、RS22422485端口、模拟ⅣO和单点RIO。可用于1336驱动器的人机接口模块(HIM)包括模以、数字、编程器和空白HIM.

1336-BDB-SP39D是Allen-Bradley元件，主要称为PCD栅极驱动板。这是一个1级主要组件组件，主要用于为驱动器的主板和隔离板供电。

该电子元件还通过接线端子TB1提供驱动器谎接。该接战钱端子接受46OVAC的电源输入，然后通过PCB驱动器专为带状和跨接电缆设计的开槽车接在内部分配。这些电缆与其他电子板建立端到端连接，包括主板、隔离板甚至绝缘栅双极晶体管(IGBT)电路。

1336-BDB-SP39D  栅极驱动板 为驱动器的主板和隔离板供电

Product description

Allen-Bradley 1336-BDB-SP39D is a component of Bulletin 1336 driver. The unit is a conform-coated PCB gate driver with an operating voltage class of 460VAC.200HP and is compatible with 1336 Plus, Plus ll, Impact and Force drivers.

trait

Efficient and stable

High precision, low noise

Strong durability

The 1336-BDB-SP39D A-B Gate Drive PC board is A high-performance, highly stable drive PC board capable of providing a stable and reliable power supply to meet the needs of various electronic devices.

Allen-Bradley 1336-BDB-SP39D is a grid-driven PC board manufactured by Rockwell Automation, also known as the 74101-169-82 part. This particular PC board has a 460V AC input voltage and a 250HP rating. It can be used with a 1336 driver - with E rack size and 25OHP output.

The Alen-Bradley 1336-BDB-SP39D is a grid-driven PC board manufactured by Rockwell Automation, also known as the 74101-169-82 part. This particular PC board has a 46IV AC input voltage and a 250HP rating. It can be used with a 1336 drive with E rack size and 250HP output. Only one 1336-BDB-SP39D printed circuit board kit can be installed on each 136 driver. The 1336 series has five common types of drives: FORCE, PLUS, PLUSII, CLASSIC, and IMPACT drives. These drives are compatible with AC drives with HP ratings ranging from 3 to 800HP, where the PLUS, PlLUSl and CLASSIC drives are used for applications requiring general performance, while the MPACT and FORCE drives are used for high-performance operations. These drivers, including 1336-BDB-SP39D printed circuit boards, have typical housing ratings for NEMA Type 1, Type 4, and Type 12. To protect the driver, it is equipped with a variety of safety features such as P-under and overvoltage, output short circuit, output ground fault and motor overload. They also come with hardware enable on the drive's full child 30, which is a non-programmable input. Opening this input will cause the 133-8DB-SP39D drive to break and experience a coasting stop instead of following the selected stop mode. They also feature UL panel recognition, as well as various communication ports such as enhanced DeviceNets port, DeviceNet port, RS22422485 port, analog IV O, and single point RIO. The human Machine interface module (HIM) available for the 1336 drive includes a modular, digital, programmer, and blank HIM.

The 1336-BDB-SP39D is an Allen-Bradley element primarily known as a PCD gate driver plate. This is a Level 1 primary component assembly that is primarily used to power the driver's motherboard and isolation board.

The electronic component also provides a driver lie connection via terminal TB1. The connector accepts power input from the 46OVAC and is then internally distributed via a slot car connected to a PCB driver designed for ribbon and jumper cables. These cables create end-to-end connections with other electronic boards, including motherboards, isolation boards, and even insulated-gate bipolar transistor (IGBT) circuits.
