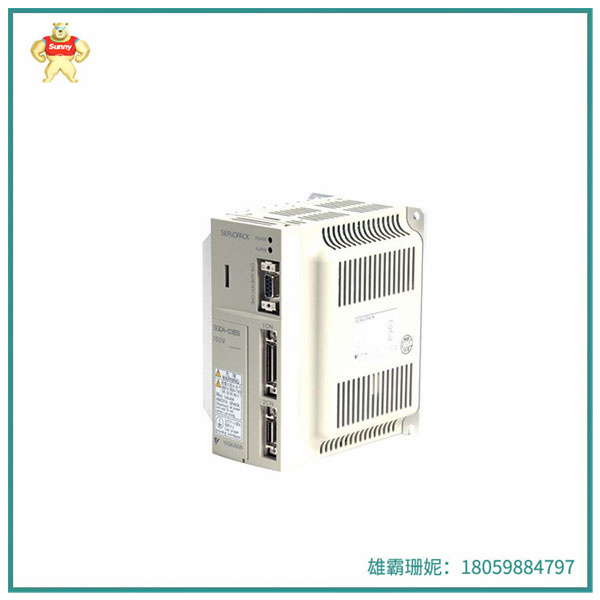

SGDA-03BS 伺服放大器 实现高精度的传动系统定位

安川电机SGDA-03BS伺服包，带速度/扭矩控制

SGDA-03BS：

• 200 W 额定容量

• 200-230 VAC，60 Hz 输入

• 速度/扭矩控制

• 与 SGM 伺服电机配合使用

SGDA-03BS低压通用变频输出电压为380～650V，输出功率为0.75～400kW，工作频率为0～400Hz，它的主电路都采用交—直—交电路。其控制方式经历了以下四代：

SGDA-03BS正弦脉宽调制（SPWM）控制方式。其特点是控制电路结构简单、成本较低、机械特性硬度也较好，能够满足一般传动的平滑调速要求，已在产业的各个领域得到广泛应用。

矢量控制（VC）控制方式。其特点是能进行精确的速度控制，调速范围宽、动态响应快、抗过载能力强。

SGDA-03BS直接转矩控制（DTC）控制方式。其特点是控制简单、直观、易实现，并且在理论上具有等同于直流电机的动态性能极限。

矩阵式变换控制方式

伺服放大器是用来控制伺服电机的一种控制器，其作用类似于变频器作用于普通交流马达，属于伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的高端产品。

SGDA-03BS伺服放大器具备防液能力，但不能完全防液且防腐蚀，所以需要做好电机的防护措施。

请随时与我们联系

新的好价格!

如果您有任何问题或需要任何帮助,请直接与我联系。我会尽我所能帮助你。

我们相信我们的产品是优秀的。我们相信您会对您的购买感到满意。

当您对我们的产品和服务感到满意时,请给我们积极的反馈。

如有问题,请立即我们联系。

SGDA-03BS 伺服放大器 实现高精度的传动系统定位

Yaskawa Motor SGDA-03BS servo package with speed/torque control

SGDA-03BS:

• 200 W rated capacity

• 200-230 VAC, 60 Hz input

• Speed/torque control

• Use with SGM servo motor

SGDA-03BS low voltage general frequency conversion output voltage is 380 ~ 650V, output power is 0.75 ~ 400kW, working frequency is 0 ~ 400Hz, its main circuit is AC-DC-AC circuit. Its control mode has experienced the following four generations:

SGDA-03BS Sinusoidal Pulse Width modulation (SPWM) control mode. It is characterized by simple control circuit structure, low cost, mechanical characteristics hardness is also good, can meet the general transmission smooth speed requirements, has been widely used in various fields of the industry.

Vector control (VC) control mode. It is characterized by accurate speed control, wide speed range, fast dynamic response and strong anti-overload ability.

SGDA-03BS Direct Torque Control (DTC) control mode. It is characterized by simple control, intuitive, easy to implement, and theoretically has the same dynamic performance limit as DC motor.

Matrix transform control mode

Servo amplifier is a controller used to control the servo motor, its role is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.

SGDA-03BS servo amplifier has liquid resistance, but it cannot be completely liquid and corrosion resistant, so it is necessary to do a good job of motor protection measures.
