SGDA-01BP 伺服放大器 控制简单、直观、易实现

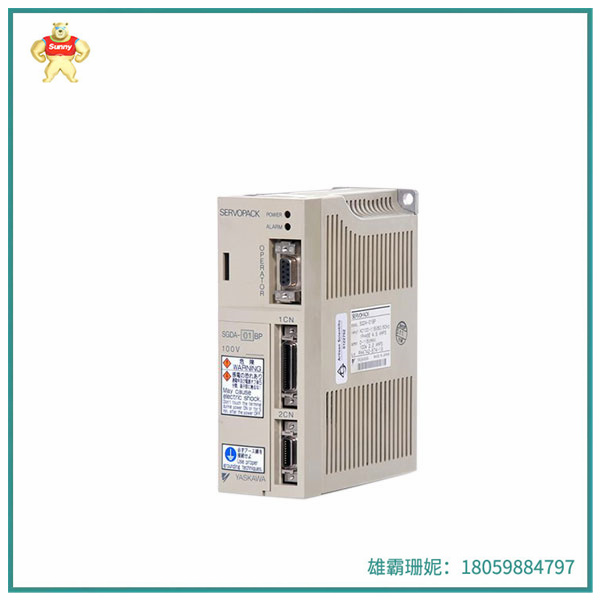

安川电机SGDA-01BP伺服放大器

绝对值编码器电池单独出售。

SGDA-01BS • 100 W （.13HP） 额定容量

• 100-115 V 交流输入 • 115 V 最大输出

• 速度/转矩控制（模拟输入）

• 速度控制范围 1：5000

SGDA-01BP低压通用变频输出电压为380～650V，输出功率为0.75～400kW，工作频率为0～400Hz，它的主电路都采用交—直—交电路。其控制方式经历了以下四代：

SGDA-01BP正弦脉宽调制（SPWM）控制方式。其特点是控制电路结构简单、成本较低、机械特性硬度也较好，能够满足一般传动的平滑调速要求，已在产业的各个领域得到广泛应用。

矢量控制（VC）控制方式。其特点是能进行精确的速度控制，调速范围宽、动态响应快、抗过载能力强。

SGDA-01BP直接转矩控制（DTC）控制方式。其特点是控制简单、直观、易实现，并且在理论上具有等同于直流电机的动态性能极限。

矩阵式变换控制方式。其特点是可实现电动机的最优控制。

伺服放大器是用来控制伺服电机的一种控制器，其作用类似于变频器作用于普通交流马达，属于伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的高端产品。

SGDA-01BP伺服放大器具备防液能力，但不能完全防液且防腐蚀，所以需要做好电机的防护措施。

常问问题

问:保修怎么样?

答:所有物品均提供—年保修。问:发货怎么样?

答:我们提供包邮，比如顺丰，德邦。包装细节:原包装厂密封

交货细节:付款后3-5天内发货

SGDA-01BP 伺服放大器 控制简单、直观、易实现

Yaskawa Motor SGDA-01BP servo amplifier

Absolute value encoder batteries sold separately.

SGDA-01BS • 100 W (.13HP) rated capacity

• 100-115 V AC input • 115 V Max output

• Speed/torque control (analog input)

• Speed control range 1:500

SGDA-01BP County low voltage general frequency conversion output voltage is 380 ~ 650V, the output power is 0.75 ~ 400kW, the working frequency is 0 ~ 400Hz, its main circuit is AC-DC-AC circuit. Its control mode has experienced the following four generations:

SGDA-01BP Sinusoidal Pulse Width modulation (SPWM) control mode. It is characterized by simple control circuit structure, low cost, mechanical characteristics hardness is also good, can meet the general transmission smooth speed requirements, has been widely used in various fields of the industry.

Vector control (VC) control mode. It is characterized by accurate speed control, wide speed range, fast dynamic response and strong anti-overload ability.

SGDA-01BP Direct Torque Control (DTC) control mode. It is characterized by simple control, intuitive, easy to implement, and theoretically has the same dynamic performance limit as DC motor.

Matrix transform control mode. It is characterized by the optimal control of the motor.

Servo amplifier is a controller used to control the servo motor, its role is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.

The SGDA-01BP servo amplifier has the capability of liquid resistance, but it cannot be completely liquid resistance and corrosion resistance, so it is necessary to take good protection measures for the motor.

Frequently asked question

Q: What about the warranty?

A: All items are covered by a - year warranty. Q: How was the delivery?

A: We offer free shipping, such as SF Express, Deppon. Packing details: Sealed by the original packing factory

Delivery details: Delivery within 3-5 days after payment
