SGDA-01AS   伺服控制器  速度监测单元

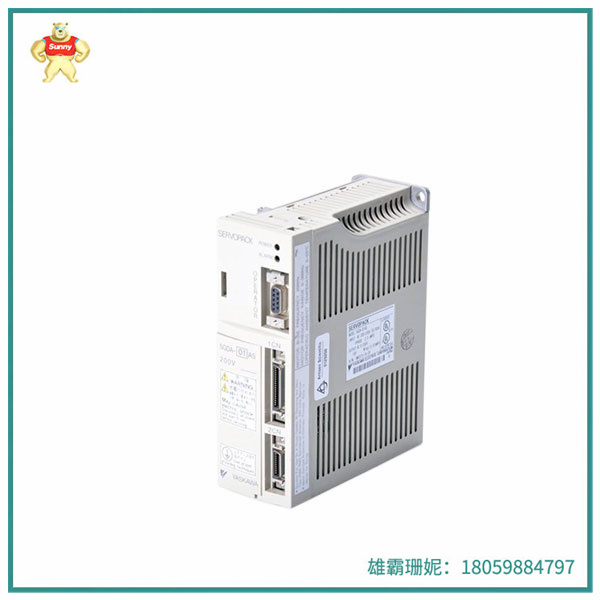

安川电机SGDA-01AS 伺服放大器

SGDA-01AP • 100 W （0.13HP） 额定容量

• 200-230 V 交流输入 • 230 V 最大输出

• 位置控制（数字输入）

• 速度控制范围 1：5000

SGDA-01AS是安川伺服驱动器的一个型号，属于伺服系统的一部分，用来控制伺服电机的运行。

SGDA-01AS伺服驱动器应远离强干扰源，如电焊机、大功率硅整流装置和大型动力设备，不能与高压电器安装在同一个开关柜内。在柜内SGDA-01AP应远离动力线（二者之间距离应大于200mm）。与SGDA-01AP装在同一个柜子内的电感性负载，如功率较大的继电器、接触器的线圈，应并联RC消弧电路。

SGDA-01AS 伺服控制器是用来控制伺服电机的一种控制器，其作用类似于变频器作用于普通交流马达，属于伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的高端产品。

SGDA-01AS 伺服控制器由速度控制单元、速度监测单元、电动机等组成。它具有调速范围宽、调速精度高、动态响应快、抗过载能力强、稳定性好、可靠性高等优点。

SGDA-01AS 伺服电机的安装步骤如下：

确认电机参数。

确认电机安装方向。

确认电机与负载的连接。

确认电机的固定方式。

确认电机的防护。

伺服电机具备防液能力，但不能完全防液且防腐蚀，所以需要做好电机的防护措施。

SGDA-01AS   伺服控制器  速度监测单元

Yaskawa Motor SGDA-01AS servo amplifier

SGDA-01AP • 100 W (0.13HP) rated capacity

• 200-230 V AC input • 230 V Max output

• Position control (digital input)

• Speed control range 1:500

SGDA-01AS is a model of Yaskawa servo drive that is part of the servo system and is used to control the operation of the servo motor.

SGDA-01AS servo drivers should be away from strong sources of interference, such as welding machines, high-power silicon rectifier devices and large power equipment, and cannot be installed in the same switch cabinet as high-voltage electrical appliances. In the cabinet, SGDA-01AP should be far away from the power line (the distance between the two should be greater than 200mm). Inductive loads installed in the same cabinet as SGDA-01AP, such as high-power relays and contactor coils, should be connected to the RC arc suppression circuit.

SGDA-01AS servo controller is a kind of controller used to control servo motor, its function is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.

The SGDA-01AS servo controller consists of a speed control unit, a speed monitoring unit, and a motor. It has the advantages of wide speed range, high precision, fast dynamic response, strong anti-overload ability, good stability and high reliability.

The installation steps of SGDA-01AS servo motor are as follows:

Confirm motor parameters.

Confirm the motor installation direction.

Verify motor connection to load.

Confirm how the motor is fixed.

Verify motor protection.

The servo motor has the ability to prevent liquid, but it can not be completely anti-liquid and anti-corrosion, so it is necessary to do a good job of motor protection measures.
