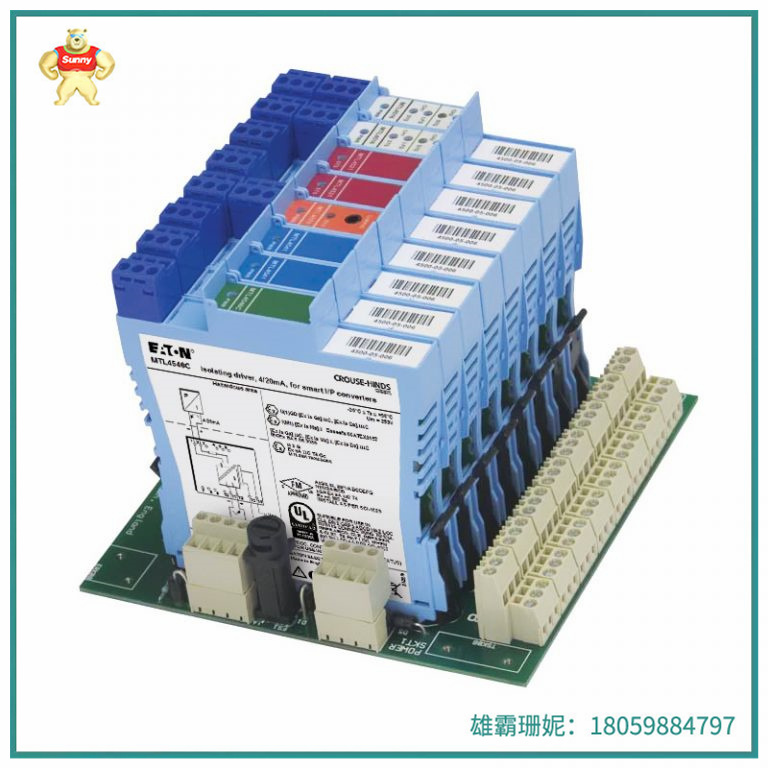

MTL4549Y Eaton 智能隔离驱动器 将输入信号进行隔离和放大

MTL4549Y是Eaton工业备品智能隔离驱动器，MTL4549Y工业自动化DCS/PLC控制系统欧美进口库存备件。

MTL4549Y隔离驱动器是一种将输入和输出电路进行物理隔离的驱动器，其工作原理是将输入信号进行隔离和放大，然后再输出到负载中。由于输入和输出电路之间存在物理隔离，因此可以防止电磁干扰和浪涌电流的干扰，并且可以保护设备。隔离驱动器广泛应用于自动化控制、仪器仪表、电力电子等领域中。

MTL4549Y信号隔离器的工作原理是将变送器或仪表的信号，通过半导体器件调制转化，然后通过光感或是磁感器件实现隔离转换，然后再实行解调转换回隔离前原信号，同时对隔离后信号的供电电源实行隔离处理，保证转换后的信号、电源、地之间绝对独立。

MTL4549Y信号隔离器的主要功能有以下几点：

保护下级的控制回路。

消弱环境噪声对测试电路的影响。

抑制公共接地、变频器、电磁阀及不明脉冲对设备的干扰。

对下级设备具有限压、额流的功能。

是变送器、仪表、变频器、电磁阀、PLC/DCS输入输出及通讯接口的忠实防护。

MTL4549Y隔离继电器的作用是隔离输入电路和输出电路，防止它们之间的相互影响。

在实际应用中，MTL4549Y输入电路和输出电路往往工作在不同的电压等级下，而且输入电路中可能存在干扰信号。如果没有隔离继电器的保护，这些干扰信号可能会传递到输出电路中，导致输出信号的失真或干扰。而隔离继电器可以有效地将输入电路和输出电路隔离开来，使它们互不干扰。

MTL4549Y Eaton 智能隔离驱动器 将输入信号进行隔离和放大

MTL4549Y is Eaton industrial spare intelligent isolation driver, MTL4549Y industrial automation DCS/PLC control system imported from Europe and the United States stock spare parts.

The MTL4549Y isolated driver is a driver that physically isolates the input and output circuits by isolating and amplifying the input signal before it is output to the load. Because there is physical isolation between the input and output circuits, electromagnetic interference and inrush current interference can be prevented, and the device can be protected. Isolated drivers are widely used in automation control, instrumentation, power electronics and other fields.

The working principle of the MTL4549Y signal isolator is to convert the signal of the transmitter or instrument through the semiconductor device, and then realize the isolation conversion through the light or magnetic sensing device, and then implement the demodulation conversion back to the original signal before isolation, and at the same time isolate the power supply of the isolated signal to ensure that the converted signal, power supply, and ground are absolutely independent.

The main functions of the MTL4549Y signal isolator are as follows:

Protect the subordinate control loop.

Reduce the influence of ambient noise on the test circuit.

Suppress the interference of common ground, frequency converter, solenoid valve and unknown pulse to the equipment.

It has the functions of limiting voltage and foreflow to the lower-level equipment.

It is the faithful protection of transmitter, instrument, frequency converter, solenoid valve, PLC/DCS input and output and communication interface.

The function of the MTL4549Y isolation relay is to isolate the input circuit and the output circuit to prevent their mutual influence.

In practical applications, the input circuit and output circuit of MTL4549Y often work at different voltage levels, and there may be interference signals in the input circuit. Without the protection of the isolation relay, these interference signals may be transmitted to the output circuit, resulting in distortion or interference of the output signal. The isolation relay can effectively isolate the input circuit and the output circuit, so that they do not interfere with each other.
