M-3422C-LN-16D TEKNIC 伺服电机 用于自动化控制

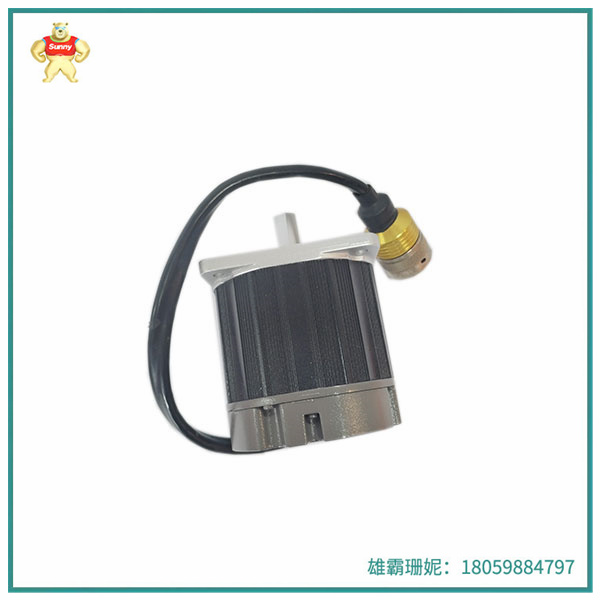

M-3422C-LN-16D TEKNIC 无刷DC伺服电机

型号：M-3422C-LN-16D

品牌:TEKNIC

Teknic M-3422C-LN-16D是一款高性能的步进电机控制器，广泛应用于自动化控制、数控机床、机器人等领域。它采用全数字化控制技术，具有精度高、性能稳定等优点。

规格

·电源电压:24-80VDC·最大输出电流:6.2A

·步进分辨率:1/512、1/1024、1/2048、1/4096

技术说明

Tek ic M!-342C-LN-16D提供了多种控制模式，包括PWM、脉冲+方向、CWICCW等，可以满足不同场合的需求。它还支持多种保护功能，如过流保护、过热保护、欠压保护等，保证了设备的安全运行。

M-3422C-LN-16D伺服电机控制器是一种能够控制伺服电机按照设定轨迹运行的控制器。它可以通过接收脉冲信号，控制电机的转速和位置，从而实现高精度的运动控制。伺服电机控制器通常由脉冲发生器、控制电路和伺服电机等组成。

伺服电机控制器的作用是控制电机的运动，实现高精度的位置、速度和加速度控制，完成各种运动控制任务。

M-3422C-LN-16D伺服电机控制器通常采用闭环控制方式，即通过电机编码器或位置传感器的反馈信号与期望的控制信号进行比较，从而调整输出信号来控制电机。

M-3422C-LN-16D伺服电机控制器广泛应用于各种自动化设备和工业机械，如数控机床、印刷机、机器人、纺织机械、包装机械等。在这些设备中，伺服电机控制器可以实现高精度的位置控制、速度控制、力控制和扭矩控制等运动控制任务，从而提高生产效率、减少生产成本、提高产品质量和稳定性。

M-3422C-LN-16D TEKNIC 伺服电机 用于自动化控制

M-3422C-LN-16D TEKNIC brushless DC servo motor

Model: M-3422C-LN-16D

Brand :TEKNIC

Teknic M-3422C-LN-16D is a high-performance stepper motor controller, widely used in automation control, CNC machine tools, robots and other fields. It adopts full digital control technology and has the advantages of high precision and stable performance.

specification

· Supply voltage :24-80VDC· Maximum output current :6.2A

· Step resolution :1/512, 1/1024, 1/2048, 1/4096

Technical specification

Tek ic M! The -342C-LN-16D provides a variety of control modes, including PWM, pulse + direction, CWICCW, etc., to meet the needs of different occasions. It also supports a variety of protection functions, such as overcurrent protection, overheat protection, undervoltage protection, etc., to ensure the safe operation of the equipment.

M-3422C-LN-16D servo motor controller is a controller that can control the servo motor to run according to a set trajectory. It can control the speed and position of the motor by receiving the pulse signal, so as to achieve high-precision motion control. Servo motor controller is usually composed of pulse generator, control circuit and servo motor.

The function of the servo motor controller is to control the motion of the motor, achieve high-precision position, speed and acceleration control, and complete various motion control tasks.

The M-3422C-LN-16D servo motor controller usually adopts a closed-loop control mode, that is, the feedback signal of the motor encoder or position sensor is compared with the desired control signal, so as to adjust the output signal to control the motor.

M-3422C-LN-16D servo motor controller is widely used in various automation equipment and industrial machinery, such as CNC machine tools, printing presses, robots, textile machinery, packaging machinery, etc. In these devices, the servo motor controller can achieve high-precision motion control tasks such as position control, speed control, force control and torque control, thereby improving production efficiency, reducing production costs, and improving product quality and stability.
