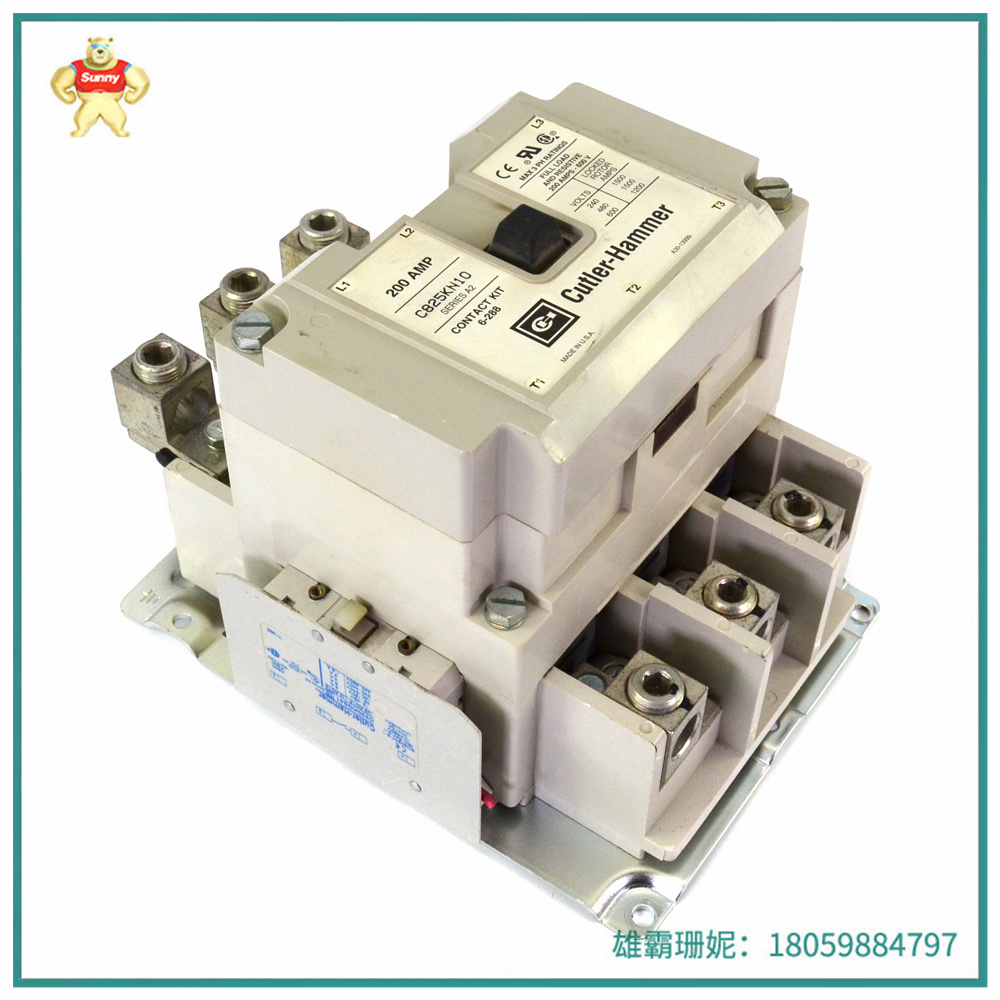

C825KN10 EATON 接触器 用于控制电路的开关

C825KN10 200A 600V接触器Cutler-Hammer

制造商:Cutler-Hammer

型号:C825KN10 200A 600V

附加信息:contactor

预计装运尺寸尺寸: 263× 58 × 28mm

重量:.4.3 kg

原产地:美国

C825KN10接触器是一种用于控制电路的开关，可远程控制，也可手动操作。它由触头、操作机构、灭弧装置等组成，按操作频率可分为：90次、4000次、6000次。

接触器的安装方法如下：

C825KN10接触器安装前应先检查线圈的额定电压等技术数据是否与实际使用相符。

接触器安装时，一般应安装在垂直面上，其倾斜度不得超过5°。

安装有散热孔的接触器时，应将散热孔放于向下位置，以利于散热和降低线圈的温度。

安装接线时，C825KN10应注意勿使螺钉、垫圈、接线头等零件失落，以免落入接触器内部造成卡住或短路现象，并将螺钉拧紧，以免振动松脱。

检查接线正确无误后，应在主触点不带电的情况下，先使吸引线圈通电分合数次，检查其动作是否可靠，然后才能投入使用。

C825KN10正确连接接触器的方法如下：

将电源线连接到接触器的电源输入端口。

将控制信号线连接到接触器的控制信号输入端口。

将负载（如电机或灯）连接到接触器的常开或常闭端口。

接线时应注意插头插入的位置和方向，避免接触不良或短路。

为了保证电路的可靠性，接线时应注意不要拧紧过度或过松，以免导致接触不良或接线松动。

在接线完成后，应仔细检查每个接触器端子是否接触良好，是否存在短路或接触不良等情况。

C825KN10 EATON 接触器 用于控制电路的开关

C825KN10 200A 600V contactor Cutler Hammer

Manufacturer :Cutler-Hammer

Model :C825KN10 200A 600V

Additional information :contactor

Estimated shipping size Size: 263× 58 × 28mm

Weight:.4.3kg

Country of Origin: USA

The C825KN10 contactor is a switch used to control the circuit, which can be controlled remotely or manually. It is composed of contact, operating mechanism, arc extinguishing device, etc., which can be divided into 90 times, 4000 times, 6000 times according to the operating frequency.

The installation method of contactor is as follows:

Before installing the C825KN10 contactor, check whether the rated voltage and other technical data of the coil are consistent with the actual use.

When the contactor is installed, it should generally be installed on the vertical surface, and its inclination should not exceed 5°.

When installing a contactor with a heat dissipation hole, the heat dissipation hole should be placed in a downward position to facilitate heat dissipation and reduce the temperature of the coil.

When installing the wiring, C825KN10 should pay attention not to lose screws, washers, wiring and other parts, so as not to fall into the contactor and cause jamming or short circuit phenomenon, and tighten the screws to avoid vibration loose.

After checking that the wiring is correct, the suction coil should be energized several times to check whether its action is reliable before it can be put into use when the main contact is not charged.

The C825KN10 correctly connects the contactor as follows:

Connect the power cable to the power input port of the contactor.

Connect the control signal line to the control signal input port of the contactor.

Connect a load, such as a motor or lamp, to the normally open or normally closed port of the contactor.

When wiring, pay attention to the position and direction of plug insertion to avoid poor contact or short circuit.

In order to ensure the reliability of the circuit, pay attention not to tighten too much or too loose when wiring, so as not to cause poor contact or loose wiring.

After the wiring is completed, you should carefully check whether each contactor terminal is in good contact, whether there is short circuit or poor contact.
