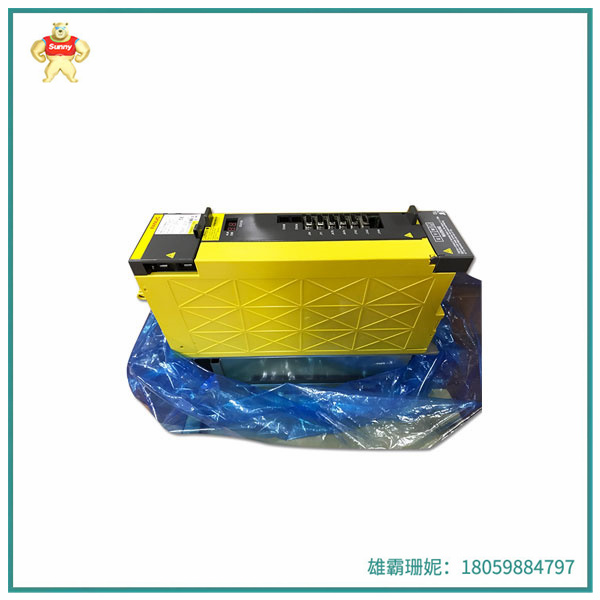

A06B-6111-H030#H570  Fanuc 主轴放大器模块 驱动器

Fanuc A06B-6111-H030 现在有库存。ALPHA i aiSP-30 主轴放大器模块可换货，可立即发货。这款 200VAC 放大器使用 1 类接口（两种接口类型的简化版本）。作为额定输出功率为 35kW 的 ai 型号 30，可驱动具有标准 ALPHA i 传感器反馈的 ai22 型或高速 ai 主轴电机。驱动器具有以下内部板;电源PCB A16B-2203-0687和控制卡A20B-2100-080x或更高版本A20B-2101-03xx。没有一个板是单独可用的;因此，我们只提供完整的 H030 放大器。但是，在库存允许的情况下，我们会提供晶体管模块、保险丝、电池和风扇。

请让我们知道此驱动器的哪些版本，因为这些版本由于功能的增加或减少而彼此不兼容。A06B-6111-H030#H550、A06B-6111-H030#H553 或 A06B-6111-H030#H570;因此，我们可以基于

该主轴模块宽 150 毫米，具有内部和外部冷却风扇以及外部散热器。该驱动器还具有一个双七段 LED 显示屏，当驱动器通电时会显示并显示放大器的各种状态。请访问我们的 aiSP 主轴模块警报页面，了解您的放大器上列出的警报、代码和错误的含义。

如果需要，可提供 A06B-6111-H030 测试和维修服务。CNC 提供内部所有工作，不外包任何维修，或在集团外测试您或任何 ALPHA SPM-30i （I） 主轴模块。

主轴放大器模块是一个电子装置，它能够将来自信号源的电信号放大，然后驱动主轴电机旋转，从而控制主轴的转速、扭矩等参数。主轴放大器模块通常由电源模块、控制模块、驱动模块等组成，其中电源模块负责提供电力，控制模块负责发送控制信号，驱动模块负责将控制信号转换为能够驱动主轴电机的电流或电压信号。

关于发货:默认顺丰，一般货物包邮，除特殊产品外。如有特别需求可按客户物流、快递发货。发货时间晚为当天下午17点之前!

关于产品:本公司所售商品均为库存/货期依据所需要的数量、询价时的库存情况!

店铺所有产品的标价均不是实价。具体以客服所做的为准!

未与客服核实清楚的产品型号、拍下的，均不发货!

A06B-6111-H030#H570  Fanuc 主轴放大器模块 驱动器

Fanuc A06B-6111-H030 is now in stock. The ALPHA i aiSP-30 spindle amplifier module is replaceable and ready for immediate shipment. This 200VAC amplifier uses a Class 1 interface (a simplified version of both interface types). As an ai Model 30 with a rated output power of 35kW, it can drive ai22 or high-speed ai spindle motors with standard ALPHA i sensor feedback. The driver has the following internal plates; Power supply PCB A16B-2203-0687 and control card A20B-2100-080x or later A20B-2101-03xx. No board is available alone; Therefore, we only offer the full H030 amplifier. However, we will supply transistor modules, fuses, batteries and fans as stock permits.

Please let us know which versions of this drive, as these versions are incompatible with each other due to increased or decreased functionality. A06B-6111-H030#H550, A06B-6111-H030#H553 or A06B-6111-H030#H570; Therefore, we can be based on

The spindle module is 150 mm wide and has internal and external cooling fans as well as an external radiator. The driver also has a dual seven-segment LED display that displays and displays the various states of the amplifier when the driver is powered on. Please visit our aiSP Spindle Module Alerts page to learn what the alerts, codes and errors listed on your amplifier mean.

A06B-6111-H030 test and repair services are available if required. CNC does all the work in-house and does not outsource any repairs or test you or any ALPHA SPM-30i (I) spindle modules outside the group.

The spindle amplifier module is an electronic device that amplifies the electrical signal from the signal source and then drives the spindle motor to rotate, thereby controlling the spindle speed, torque and other parameters. The spindle amplifier module is usually composed of a power module, a control module, a drive module, etc. The power module is responsible for providing power, the control module is responsible for sending the control signal, and the drive module is responsible for converting the control signal into a current or voltage signal that can drive the spindle motor.
