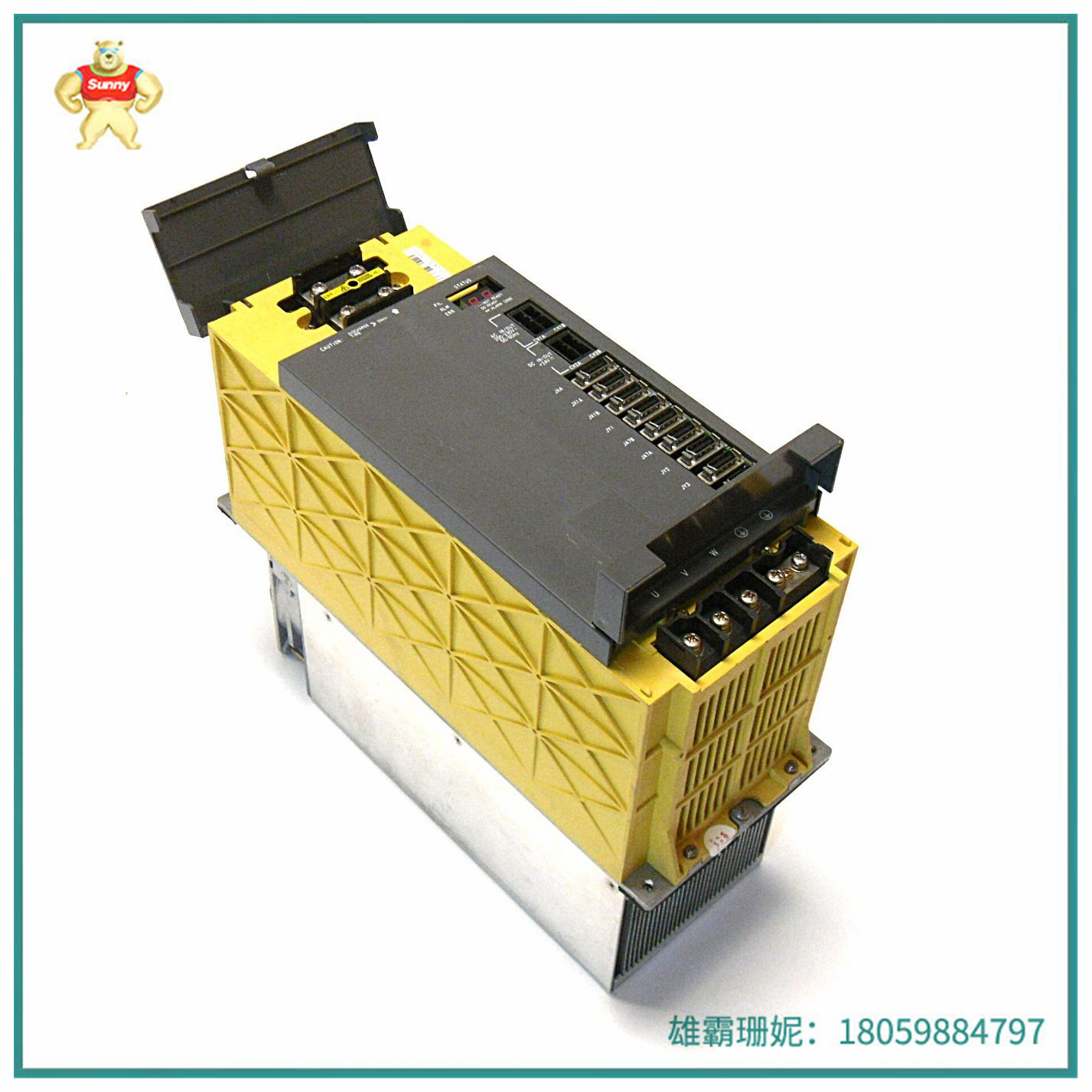

A06B-6088-H222#H508 FANUC 主轴放大器模块 主轴驱动器

FANUC A06B-6088-H222 交流主轴放大器模块

Fanuc A06B-6088-H222 主轴放大器模块。CNC 库存 ALPHA SPM-22 主轴驱动器可换货，可立即发货。该放大器使用 1 类接口（四种接口类型中最简单的）。作为 22 型的额定输出功率为 25.2kW，通常用于驱动 A22、AP40 型或带有标准 ALPHA 传感器反馈的高速交流主轴电机。驱动器具有以下内部板;电源PCB A20B-1006-0481或A20B-1006-0487，烧火板A20B-2902-0390和控制卡A16B-2202-043x或A16B-2203-033x。没有一个板是单独可用的;因此，我们只提供完整的 H222 放大器。但是，在库存允许的情况下，我们会提供晶体管模块、保险丝、电池和风扇。

请注意，这些 SPM-22有一个 #H50x 后缀，表示不同的软件：即 #H500、#H501 和 #H508;列举如下：

货号：A06B-6088-H222#H500

编号：A06B-6088-H222#H501

货号：A06B-6088-H222#H508

请让我们知道此驱动器的哪些版本，因为这些版本由于功能的增加或减少而彼此不兼容。该主轴模块宽 150 毫米，具有内部和外部冷却风扇以及外部散热器。该驱动器还具有一个双七段 LED 显示屏，当驱动器通电时会显示并显示放大器的各种状态。

A06B-6088-H222#H508

主轴放大器模块是一个电子装置，它能够将来自信号源的电信号放大，然后驱动主轴电机旋转，从而控制主轴的转速、扭矩等参数。主轴放大器模块通常由电源模块、控制模块、驱动模块等组成，其中电源模块负责提供电力，控制模块负责发送控制信号，驱动模块负责将控制信号转换为能够驱动主轴电机的电流或电压信号。

常问问题

1.保修怎么样?

所有产品均享有1年保修。2.什么是交货时间?

通常1-3个工作日

3.其他供应商的价格比您好吗?

“为客户创造利益是我们的信念。如果您有更好的价格，请告诉我们。我们会尽力满足您的价格并支持您

4 .发货怎么样?

我们可以安排发货以具有竞争力的价格，例如顺丰，德邦等

A06B-6088-H222#H508 FANUC 主轴放大器模块 主轴驱动器

FANUC A06B-6088-H222 AC spindle amplifier module

Fanuc A06B-6088-H222 spindle amplifier module. CNC Stock ALPHA SPM-22 spindle drivers are replaceable and available for immediate shipment. The amplifier uses a Class 1 interface (the simplest of the four interface types). The rated output power as a Type 22 is 25.2kW and is typically used to drive A22, AP40 or high-speed AC spindle motors with standard ALPHA sensor feedback. The driver has the following internal plates; Power supply PCB A20B-1006-0481 or A20B-1006-0487, fire board A20B-2902-0390 and control card A16B-2202-043x or A16B-2203-033x. No board is available alone; Therefore, we only offer the full H222 amplifier. However, we will supply transistor modules, fuses, batteries and fans as stock permits.

Note that these SPM-22s have a #H50x suffix for different software: i.e. #H500, #H501, and #H508; Here are some examples:

Item number: A06B-6088-H222#H500

Number: A06B-6088-H222#H501

Item number: A06B-6088-H222#H508

Please let us know which versions of this drive, as these versions are incompatible with each other due to increased or decreased functionality. The spindle module is 150 mm wide and has internal and external cooling fans as well as an external radiator. The driver also has a dual seven-segment LED display that displays and displays the various states of the amplifier when the driver is powered on.

A06B-6088-H222#H508

The spindle amplifier module is an electronic device that amplifies the electrical signal from the signal source and then drives the spindle motor to rotate, thereby controlling the spindle speed, torque and other parameters. The spindle amplifier module is usually composed of a power module, a control module, a drive module, etc. The power module is responsible for providing power, the control module is responsible for sending the control signal, and the drive module is responsible for converting the control signal into a current or voltage signal that can drive the spindle motor.

Frequently asked question

1. What about the warranty?

All products are guaranteed for 1 year. 2. What is delivery time?

Usually 1-3 working days

3. What are the prices of other suppliers?

"Creating benefits for our customers is our belief. If you have a better price, please let us know. We will do our best to meet your price and support you

4. How about delivery?

We can arrange shipments at competitive prices, e.g. Sf Express, Deppon, etc
