5069-L310ERS2 Rockwell I/O模块控制器 连接24个以太网/IP网络节点

品牌：Rockwell

型号：5069-L310ERS2

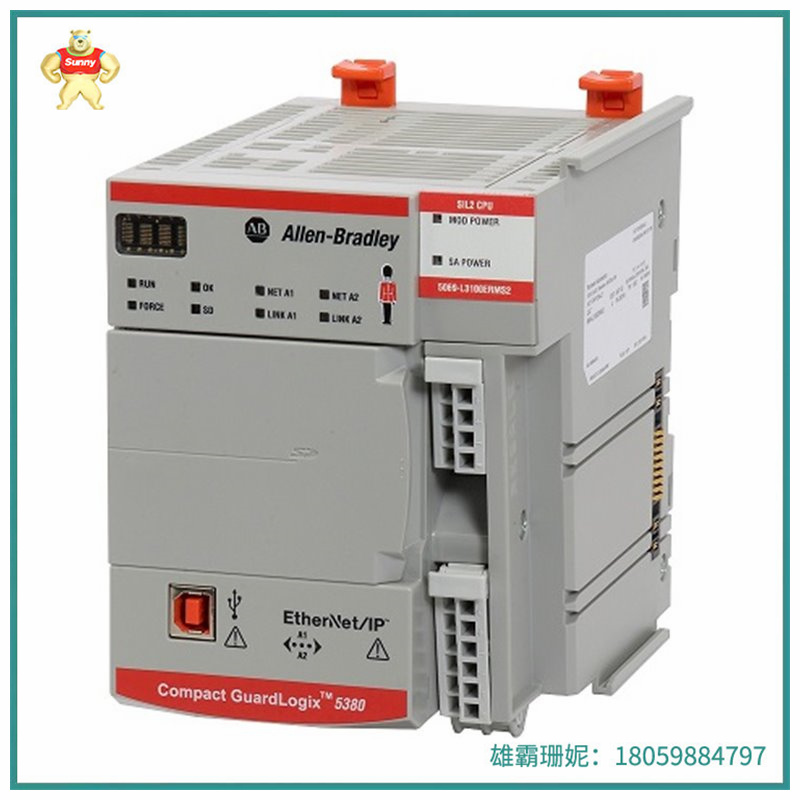

CompactLogix 5380采用5069总线，控制器具有如下通用特征：

具有MOD和SA两种电源接口；

集成1个USB 2.0接口，最大传输速率12MB/s，可用于编程、配置及固件升级；

集成两个以太网接口，支持10M/100M/1000M全双工传输；

支持线形、星形及环型拓扑结构；

5069-L310ERS2控制器本身不集成IO点通道，可扩展Compact 5000 IO模块；使用Studio 5000进行软件编程，支持梯形图（Ladder Diagram，LD）、结构化文本（Structured Text,ST）、功能块图（Fuction Bloack Diagram,FBD）和顺序功能图（Sequenctial Function Chart,SFC）；

5069-L310ERS2是一款具有集成安全功能的可编程自动化控制器（PAC），基于GuardsLogix平台开发，专门设计用于满足严格的安全标准。它具有紧凑型设计，适用于DIN导轨安装，并支持水平安装。

5069-L310ERS2该控制器具有多种特性，包括1MB的标准用户内存、0.5MB的安全内存以及由控制器附带的1784-SD2安全数字（SD）卡提供的嵌入式2GB内存。它还配备了一个USB端口，支持总共32个任务，其中31个可被指定为标准任务，1个可被指定为安全任务。

此外，5069-L310ERS2控制器可以连接多达24个以太网/IP网络节点，并可以同时托管8个本地I/O模块，这些本地I/O模块与连接到控制器右侧的Allen-Bradley I/O模块兼容。

在控制电路设计方面，主电路提供控制信号的回路包括频率、电压的运算电路，主电路的电压、电流检测电路，电动机的速度检测电路，将运算电路的控制信号进行放大的驱动电路，以及逆变器和电动机的保护电路。

总的来说，5069-L310ERS2控制器是一款功能强大且安全的可编程自动化控制器，适用于各种需要高精度、高稳定性、高可靠性和严格安全标准的工业自动化应用场景。

控制器， Compact GuardLogix， 5380， SIL2/PLd， 1.0MB 标准和 0.5MB 安全存储器， 24 节点， 8 I/O

我们的 CompactLogix 和 Compact GuardLogix™ 5380 控制器提供更高的性能、更大的容量、更高的生产力和增强的安全性，有助于满足制造业对智能机器和设备日益增长的需求。所有标准和安全控制器都使用现代化的编程环境 Studio 5000 Logix Designer® 应用程序，允许用户协作设计和维护他们的系统。这种通用环境优化了效率，缩短了调试时间，并通过 EtherNet/IP™ 管理集成运动控制，适用于高速运动应用和高达 SIL 3/PLe 的安全解决方案。这些控制器非常适合需要高性能通信、I/O 和多达 32 轴运动控制的应用。

5069-L310ERS2 Rockwell I/O模块控制器 连接24个以太网/IP网络节点

Brand: Rockwell

Model: 5069-L310ERS2

The CompactLogix 5380 uses the 5069 bus, and the controller has the following common characteristics:

With MOD and SA two power interfaces;

Integrated 1 USB 2.0 interface, maximum transfer rate of 12MB/s, can be used for programming, configuration and firmware upgrade;

Integrate two Ethernet interfaces, support 10M/100M/1000M full-duplex transmission;

Support line, star and ring topology;

5069-L310ERS2 controller itself does not integrate I/O channel, can expand the Compact 5000 I/O module; Software programming with Studio 5000, Ladder Diagram, LD), Structured Text (ST), Fuction Bloack Diagram (FBD), and Sequenctial Function Chart (SFC);

The 5069-L310ERS2 is a programmable automation controller (PAC) with integrated safety features, developed on the GuardsLogix platform and specifically designed to meet stringent safety standards. It has a compact design for DIN rail mounting and supports horizontal mounting.

5069-L310ERS2 The controller has a variety of features, including 1MB of standard user memory, 0.5MB of secure memory, and an embedded 2GB of memory provided by the 1784-SD2 secure digital (SD) card that comes with the controller. It also comes with a USB port that supports a total of 32 tasks, 31 of which can be designated as standard and one as secure.

In addition, the 5069-L310ERS2 controller can connect up to 24 Ethernet /IP network nodes and can simultaneously host eight local I/O modules that are compatible with the Allen-Bradley I/O module connected to the right side of the controller.

In terms of control circuit design, the circuit that provides the control signal includes the frequency and voltage operation circuit, the voltage and current detection circuit of the main circuit, the speed detection circuit of the motor, the drive circuit that amplifies the control signal of the operation circuit, and the protection circuit of the inverter and the motor.

Overall, the 5069-L310ERS2 controller is a powerful and safe programmable automation controller for a wide range of industrial automation applications requiring high precision, high stability, high reliability and stringent safety standards.

Controller, Compact GuardLogix, 5380, SIL2/PLd, 1.0MB standard and 0.5MB secure memory, 24 nodes, 8 I/O

Our CompactLogix and Compact GuardLogix™ 5380 controllers offer increased performance, increased capacity, increased productivity and enhanced security to help meet the growing demand for smart machines and devices in the manufacturing industry. All standard and security controllers use the Studio 5000 Logix Designer® application, a modern programming environment that allows users to collaboratively design and maintain their systems. This common environment optimizes efficiency, reduces commissioning time, and integrates motion control via EtherNet/IP™ management for high-speed motion applications and safety solutions up to SIL 3/PLe. These controllers are ideal for applications requiring high-performance communications, I/O, and motion control up to 32 axes.
