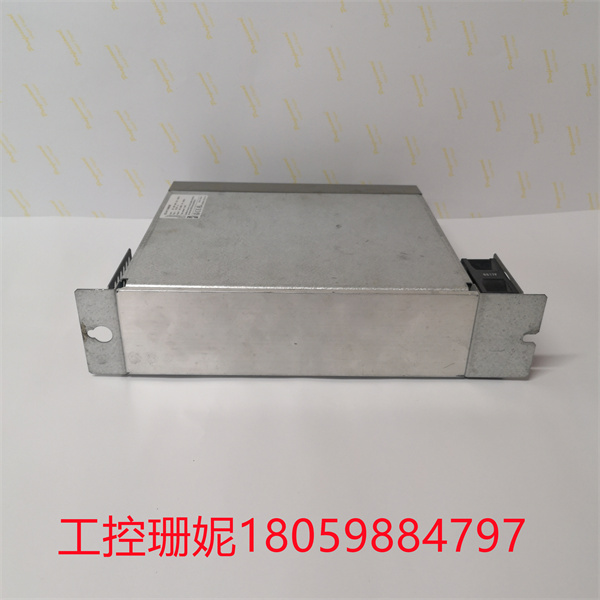

ELAU MC-41110400 ELAU 伺服驱动器 实现高精度的传动系统定位

产品信息

品牌 ELAU

产品名称 MC-4/11/10/400

类别 驱动

描述 SERVODRIVE

重量 7kg

长度 310mm

宽度 70mm

高度 250mm

德国ELAU公司在业界率先开发了伺服电机/驱动装置，将控制器、数字式伺服驱动器、智能电机以及人机界面等有机地整合到一起，使电动机自动参数化，主要产品有:ELAU直流电机控制器，ELAU调速器，ELAU直流伺服电机驱动器;ELAU交流伺服电机控制器，ELAU直流无刷调速器，ELAU直流无刷伺服驱动器等各类电机控制器驱动器。ELAU每个伺服驱动和伺服电机能够由一个控制器通过网络精确地同步进行，一台PacDrive 控制器最多可控制99台伺服电动机/驱动装置，通过—个中心参数即可完成全部数据存取，极大地方便了用户使用，大大降低了能耗。全球有超过25000套ELAU伺服驱动系统在运行。

ELAU MC-4/11/10/400是一款高性能的伺服驱动器，专为各种工业应用而设计。它能够控制功率高达400W的无刷伺服电机，非常适合在苛刻的环境中使用。

该产品的输入电压为3×400vac±10%，输出电压为3×0~400vac，最大输出电流为11a，输出功率为4kw。它采用转矩、速度、位置控制方式，并具有CANopen通信接口。工作温度范围为0-45℃。

总之，ELAU MC-4/11/10/400是一款高性能、适用于各种工业环境的伺服驱动器。

伺服驱动器又称为“伺服控制器”、“伺服放大器”，是用来控制伺服电机的一种控制器，其作用类似于变频器作用于普通交流马达，属于伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的高端产品。

ELAU MC-4/11/10/400伺服驱动器是由电路板、微芯片、电线和连接器制成的电子设备。它们连接到电机上，以控制电机的旋转。它们可以使电机加速、减速、停止，甚至随时倒退。这是通过控制和引导电机电线的电流来实现的。如果没有伺服驱动器，电机可能无法控制地旋转或根本不旋转。

ELAU MC-41110400 ELAU 伺服驱动器 实现高精度的传动系统定位

Product information

Brand ELAU

Product name MC-4/11/10/400

class-driven

Description SERVODRIVE

Weight 7kg

The length is 310mm

Width 70mm

Height 250mm

Germany ELAU company in the industry to take the lead in the development of servo motor/drive device, the controller, digital servo drive, intelligent motor and human-machine interface organic integration together, so that the motor automatic parameterization, the main products are :ELAU DC motor controller, ELAU governor, ELAU DC servo motor driver; ELAU AC servo motor controller, ELAU DC brushless governor, ELAU DC brushless servo driver and other motor controller drivers. ELAU each servo drive and servo motor can be precisely synchronized by a controller through the network, a PacDrive controller can control up to 99 servo motors/drives, through a central parameter can complete all data access, greatly convenient for users, greatly reducing energy consumption. There are more than 25,000 ELAU servo-drive systems in operation worldwide.

The ELAU MC-4/11/10/400 is a high performance servo drive designed for a variety of industrial applications. Capable of controlling brushless servo motors up to 400W, it is ideal for use in demanding environments.

The input voltage of the product is 3×400vac±10%, the output voltage is 3×0~400vac, the maximum output current is 11a, the output power is 4kw. It adopts torque, speed and position control mode, and has CANopen communication interface. Operating temperature range is 0-45℃.

In summary, the ELAU MC-4/11/10/400 is a high performance servo drive suitable for various industrial environments.

Servo driver is also known as "servo controller", "servo amplifier", is used to control the servo motor of a controller, its role is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.

ELAU MC-4/11/10/400 Servo drivers are electronic devices made of circuit boards, microchips, wires and connectors. They are attached to the motor to control its rotation. They can make the motor speed up, slow down, stop, and even go backwards at any time. This is achieved by controlling and directing the current of the motor wires. Without a servo drive, the motor may spin uncontrollably or not at all.
