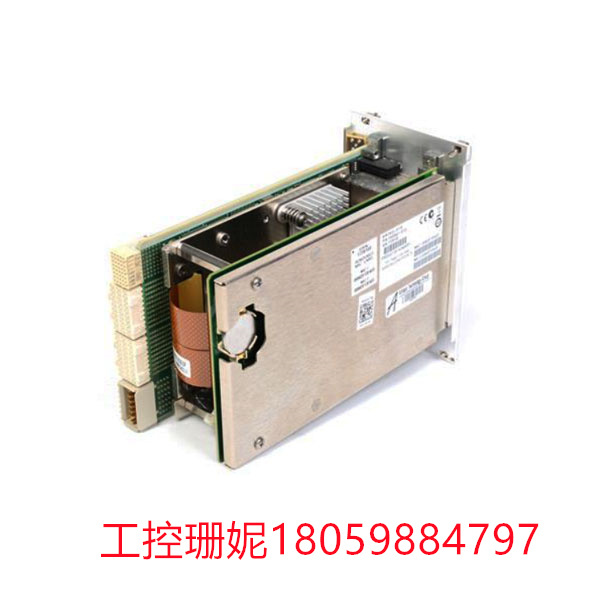

PXIE-8115 PXIe 控制器 访问测量和控制模块

NIPXIle-115(部件号:781729-04和781729-33)控制器可与PIExpress兼容机箱(如PXle1082)结合使用，并可与PC兼容的计算机结合使用。该控制器具有双核Intel Corei5-2510处理器、25DGB硬盘、常规V/O、基于PCI的GPIB控制器、ExpressCard/4扩展括槽、并行端口、两个千兆以太网、一个RS-232串行端口和各种其他有用的功能。NIPXIe8115控制器的板板尺寸为四宽3U尺寸PKIExpress模块。此控制器重2.91磅，有一个系统插槽和三个控制器扩展插槽。由于集成了许多V/0己口，因此机箱中的每个活动插槽都可以访问测量和控制模块。NI PXle8115的结构可减少集成问题，并消除了子板上复杂布线的必要性。

PXKle8115控制器具有多种数据存储功能，包括:支持软驱的USB存储、大容量存储设备、USB CD/DVD-HROM和2.5英寸SATA笔记本电脑内置硬盘。SO-DIMM模块需要一个64位DOR3 SORAM插槽，最多可容纳8GB内存。控制器前面板上还有一个用于ExpressCard的括槽。当NIPXIe8115控制器开启时，可以插入ExpressCcard模块控制器将检测该卡。ExpressCard通常有一个标记，用于指示将哪─端安装到括槽中。卡已接线以阻止不准确的插入。插入ExpressCard后，驱动程序将加载。

PXIe-8115维护状态已由National Instruments公布，但Apex Waves仍可购买和维修C控制器。

ABB:

1)AC800M系列控制器I/O模块2)AC800F系列控制器模块3)AC31系列控制器模块4)800xA系列模块5)Bailey lNFl 90模块6) DSQC机器人模块备件7)Advant OCS系统备件8)H&B Freelance。

Bentley Nevada:

1) Bently 3500监控系统，2) Bently 3300监控系统，

莫迪康:

1) Quantum 140系列: Modicon M340

2)Modicon Premium: CPU处理器模块、通信模块等

PXIE-8115 PXIe 控制器 访问测量和控制模块

The NIPXIle-115(Part number :781729-04 and 781729-33) controller can be used in combination with PIExpress compatible chassis such as PXle1082 and can be used in combination with PC-compatible computers. The controller features a dual-core Intel Corei5-2510 processor, 25DGB hard drive, regular V/O, PCI-based GPIB controller, ExpressCard/4 expansion spout, parallel ports, two Gigabit Ethernet, an RS-232 serial port, and various other useful features. The board size of the NIPXIe8115 controller is a four-wide 3U PKIExpress module. This controller weighs 2.91 pounds and has one system slot and three controller expansion slots. Due to the integration of many V/0 ports, each movable slot in the chassis has access to the measurement and control modules. The NI PXle8115's structure reduces integration issues and eliminates the need for complex wiring on the daughter board.

The PXKle8115 controller features a variety of data storage capabilities, including: USB storage with floppy drive support, mass storage devices, USB CD/DVD-HROM, and 2.5-inch SATA laptop built-in hard drives. The SO-DIMM module requires a 64-bit DOR3 SORAM slot that can hold up to 8GB of memory. There is also a bracket for ExpressCard on the controller front panel. When the NIPXIe8115 controller is enabled, an ExpressCcard module can be inserted and the controller detects the card. ExpressCard usually has a mark indicating which end to install into the bracket. The card is wired to prevent inaccurate insertion. After inserting ExpressCard, the driver will load.

The PXIe-8115 maintenance status has been published by National Instruments, but Apex Waves can still purchase and service the C controller.

ABB:

1)AC800M Series controller I/O module 2)AC800F Series controller module 3)AC31 Series controller module 4)800xA series module 5)Bailey lNFl 90 module 6) DSQC robot module spare parts 7)Advant OCS system spare parts 8)H&B Freelance.

Bentley Nevada:

1) Bently 3500 monitoring system, 2) Bently 3300 monitoring system,

Modecon:

1) Quantum 140 Series: Modicon M340

2)Modicon Premium: CPU processor module, communication module, etc
