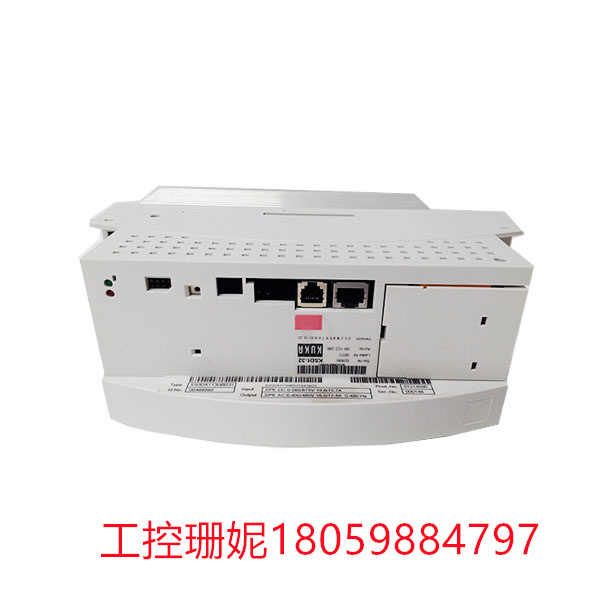

KSD1-32-E93DA113I4B531 KUKA 伺服控制器模块

品牌：KUKA

产地：美国

品名：模块

可售卖地：全国、国外

订货号：E93DA11314B531

保修期：—年

产品详情:

KSD1-32E93DA1134B531由于磁路结构的不同，转子永磁体产生的背电位波形也不同，正弦波的背电位称为KSD1-32E593DA1134B531，梯形波的背电位称为永磁无刷直流电动机。KSD1-32 E93DA11314B531的主要优点和原因如下:(1）效率高:

永磁无刷电机效率高的主要原因是转子永磁励磁不产生铜损和励磁损耗。同时，无刷结构也大大减少了摩擦损失。

(2)体积、重量经:对于通用电机来说，绕组线圈的重量在电机重量中占比很高。因此，在无刷电机中用高能星密度的永磁体代替励磁回路，必然会减小电机的体积和重量。

E93DA11314B531伺服控制器模块是应用于伺服系统中的控制装置，它可以将输入的模拟信号或数字信号转化为电机的转速和转矩，从而实现电机的精确控制。伺服控制器模块通常包括控制电路、驱动电路、编码器接口和通讯接口等部分。根据不同的应用场景和需求，伺服控制器模块的规格和功能也会有所不同。常见的伺服控制器模块有直流伺服控制器模块、交流伺服控制器模块和步进伺服控制器模块等。

E93DA11314B531伺服驱动器的工作原理和内部结构如下：

工作原理。在控制信号作用下，驱动执行电机。伺服驱动器相当于大脑，执行电机相当于手脚。伺服驱动器在伺服控制系统中作用是调节电机的转速，是一个自动调速系统。

内部结构。内部由电源电路、继电器板电路、主控板电路、驱动板电路及功率变换电路组成。电源电路作用是，将外部输入的直流电转换为大小不同的直流电输出，为后续的继电器板、驱动板、功率变换电路提供直流电源。继电器板作用是，提供直流电完成控制信号、检测信号传递。

KSD1-32-E93DA113I4B531 KUKA 伺服控制器模块

Brand: KUKA

Origin: USA

Product name: Module

Available for sale: the whole country, abroad

Order number: E93DA11314B531

Warranty period: - year

Product Details:

KSD1-32E93DA1134B531 Due to the different structure of the magnetic circuit, the back potential waveform generated by the rotor permanent magnet is also different, the back potential of the sine wave is called KSD1-32E593DA1134B531, and the back potential of the trapezoidal wave is called the permanent magnet brushless DC motor. The main advantages and reasons of KSD1-32 E93DA11314B531 are as follows :(1) High efficiency:

The main reason for the high efficiency of permanent magnet brushless motor is that the rotor permanent magnet excitation does not produce copper loss and excitation loss. At the same time, the brushless structure also greatly reduces the friction loss.

(2) Volume and weight: For general motors, the weight of the winding coil accounts for a high proportion of the weight of the motor. Therefore, replacing the excitation circuit with a high-energy star-density permanent magnet in a brushless motor will inevitably reduce the volume and weight of the motor.

The E93DA11314B531 servo controller module is a control device applied to the servo system, which can convert the input analog signal or digital signal into the speed and torque of the motor, so as to achieve the precise control of the motor. Servo controller module usually includes control circuit, drive circuit, encoder interface and communication interface. According to different application scenarios and requirements, the specifications and functions of the servo controller module will be different. Common servo controller modules include DC servo controller module, AC servo controller module and step servo controller module.

The working principle and internal structure of the E93DA11314B531 servo drive are as follows:

How it works. Under the action of the control signal, the executive motor is driven. The servo drive is the brain, the execution motor is the hands and feet. The function of the servo driver in the servo control system is to adjust the speed of the motor, which is an automatic speed regulation system.

The internal structure. It is composed of power supply circuit, relay board circuit, main control board circuit, drive board circuit and power conversion circuit. The role of the power supply circuit is to convert the external input direct current into direct current output of different sizes, and provide DC power for the subsequent relay board, drive board, and power conversion circuit. The function of the relay board is to provide direct current to complete the transmission of control signals and detection signals.
