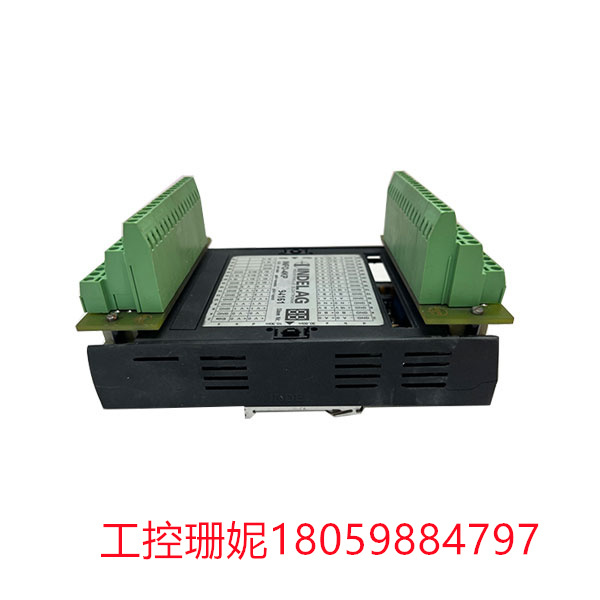

INFO-4KP-94161 INDEL 定位板 控制伺服控制器

品牌：INDEL

型号：  INFO-4KP-94161

INDELAGINFO-4KP-94161是的现场总线节点高精度和非常快速的定位和控制任务。该板包含四个完整、独立的通道。定位板是纯外围板，即控制算法需要大量计算能力的是由INFOMaster中的固件执行。固件还执行增星到度数的转换，米或毫米，并确保参考精确到一个增量。具有PowerPC RISC-CPU控制除此之外，最多64个轴执行整个机器控制功能。

该板适合于控制伺服控制器、变频器或用于读取手轮。在..上电路板是一个用于分解器和接近开关的DC/DC转换器。

INDEL AG INFO-4KP-94161机床的位置控制软件信息电源PC主机独立同时控制多达64个轴。该软件可以在任何位置进行控制必需的编程语言。轴参数（控制权重，标准系数、预选值等）通过INCO-DLL写入现场总线主机。预选值以用户特定的单位表例如度、米或毫米。INFO-PPCINDEL AG INFO-4KP-94161主控台控制和监按整个坡道和恒定运行，制动至以下位置的增量精度:所需的点，并维持此点指向下一个运行命令。在里面此外，编码器的分辨率是通过四象限法将软件功能扩展到32-一点每500us对每个轴进行采样，控制间隔为4、2、1或0.5ms，取决于轴的数星。运行过程中的速度变化，多次轴轨迹运行（拉动模式)仅为尽可能提前终止或紧急关闭。当然也是在任何可能的时间读取电流位置。

INFO-4KP-94161 INDEL AG INFO-4KP-94161

INDEL AGINFO-4KP 94161当导管必须耦合在一起时，交流驱动器不需要功率因数补偿。但是，如果要将变频器连接到已经安装了补偿电容器的系统，请注意以下限制。不需要连续的波纹铝铠装电缆或屏蔽电缆。始终需要专用的接地电缆。

提供周到的服务和完整的零件

(1)在24小时内及时回复您;

(2)100%质量保证，1年保修;

(3)很好的服务，合理的价格;

(4)已行至多年，有良好的信誉;

(5)我们将在付款后3个工作日内发货;

(6)所有货物在装运前都要经过检测;

(7)包装在专业防静电袋中;

(8)）我们可以通过DHL / UPS /EMS/联邦快递运送给您...请直接与我们联系，我们将根据您的要求发货。

INFO-4KP-94161 INDEL 定位板 控制伺服控制器

Brand: INDEL

Model: AG INFO-4KP-94161

The INDELAGINFO-4KP-94161 is a fieldbus node with high accuracy and very fast positioning and control tasks. The board consists of four complete, independent channels. The positioning board is a pure peripheral board, i.e. the control algorithms that require a lot of computing power are executed by the firmware in INFOMaster. The firmware also performs star to degree conversion, meters or millimeters, and ensures that the reference is accurate to an increment. With PowerPC RISC-CPU control in addition to this, up to 64 axes perform the entire machine control function.

The board is suitable for controlling servo controllers, frequency converters or for reading handwheels. At... The upper board is a DC/DC converter for the resolver and proximity switch.

Position control software information for the INDEL AG INFO-4KP-94161 machine tool Power PC host independently controls up to 64 axes simultaneously. The software can control the necessary programming language in any location. Axis parameters (control weights, standard coefficients, preselected values, etc.) are written to the fieldbus host via INCO-DLL. Preselected values are expressed in user-specific units such as degrees, meters, or millimeters. The INFO-PPCINDEL AG INFO-4KP-94161 master console controls and monitors the entire ramp and runs constant, braking to the following position with incremental accuracy: the desired point and maintaining this point pointing to the next run command. In addition, the resolution of the encoder is extended to 32 points by the four-quadrant method to sample each axis every 500us, with control intervals of 4, 2, 1 or 0.5ms, depending on the number of stars of the axis. Speed changes during operation, multiple axis trajectory operation (pull mode) is only terminated as early as possible or emergency shutdown. And of course read the current position at any possible time.

INFO-4KP-94161 INDEL AG INFO-4KP-94161

INDEL AGINFO-4KP 94161 AC drivers do not require power factor compensation when the conduits must be coupled together. However, if you want to connect the inverter to a system that already has a compensation capacitor installed, be aware of the following limitations. No continuous corrugated aluminum armored cable or shielded cable is required. A dedicated ground cable is always required.

Provide attentive service and complete parts

(1) Reply to you within 24 hours;

(2)100% quality guarantee, 1 year warranty;

(3) Good service, reasonable price;

(4) has been in business for many years and has a good reputation;

(5) We will deliver the goods within 3 working days after payment;

(6) All goods are tested before shipment;

(7) Packed in professional anti-static bag;

(8)) We can ship to you via DHL/UPS /EMS/ fedex... Please contact us directly and we will deliver the goods according to your requirements.
