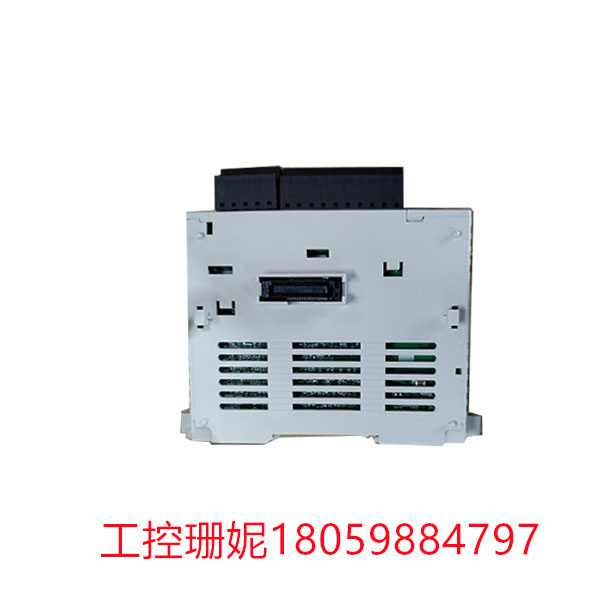

FX3U-4DA-ADP Mitsubishi 模拟量输出适配器

FX3U-4DA-ADP型模拟量输出适配器

产品特点

1)FX3U-4DA-ADP分辨率为12位二进制的高精度模拟量输出适配器。

2)FX3U-4DA-ADP可进行4通道的电压输出(DCO~10V)、或者电流输出(DC4 ~ 20mA) o

3)FX3U-4DA-ADP可对各通道分别指定电压或者电流输出。

4)无需程序(无需专用指令)即可传送数据。

系列

MELSEC-F系列

类型：FX3U的

电源(V)：24

电流类型：直流

集成模拟输出：4

输出电压范围(v)：0-10

输出电流范围(mA)：4-20

最低环境温度(°C)：0

最高环境温度(c)：55

产品尺寸和重量

宽度(mm)：17,6

高度(mm)：90

深度(mm)：89,5

重量(kg)：0,1

隔离方式：模拟量输出部分和PLC间采用光耦隔离驱动电源和模拟量输出部分间采用DCIDC转换器隔离(各通道间不隔离)

电源：DC5V 15mA(PLC内部供电）)DC24V+20%-15% 150mA/DC24V(通过端子外部供电)

输入输

出占用：0点(与PLC的最大输入输出点数无关。)

点数适用PLC的PFXsu、FX3UC(Ver1.20开始对应)PLC需要功能扩展板

模拟量输出适配器的作用是将PLC的数字信号转换为模拟信号，以便与外部设备进行通信。

常见的模拟量输出适配器型号有FX3U-4DA-ADP，FX5-4DA-ADP等。FX3U-4DA-ADP是三菱PLC的一个型号，可以将PLC的数字信号转换为模拟信号，用于驱动电机等外部设备。

厦门雄霸电子商务有限公司成立于2014年，是一家全球工业自动化供应商，在业内以维护强大的预认证库存和定期解决物流挑战而闻名，通过机器停机情况为客户提供更高的交付速度。厦门雄霸电子商务有限公司专门从事GE通用电气涡轮机和励磁控制、GE多林继电器、GE驱动器、信实电驱动和

PLC、Pro-face HMI、康耐视视觉系统和伍德沃德发电，厦门雄霸电子商务有限公司以不同于我们的许多竞争对手的方式进入市场，培养了一项使命，即了解相当多的产品线，而不是通过追求成为所有人的—切而平庸。

FX3U-4DA-ADP Mitsubishi 模拟量输出适配器

FX3U-4DA-ADP analog output adapter

Product characteristics

1)FX3U-4DA-ADP high precision analog output adapter with 12-bit binary resolution.

2)FX3U-4DA-ADP can perform 4-channel voltage output (DCO~10V) or current output (DC4 ~ 20mA) o

3)FX3U-4DA-ADP can specify voltage or current output for each channel.

4) Data can be transmitted without procedures (without special instructions).

series

MELSEC-F series

Type: FX3U

Power Supply (V) : 24

Current type: DC

Integrated analog output: 4

Output voltage range (v) : 0-10

Output current range (mA) : 4-20

Minimum ambient temperature (°C) : 0

Maximum ambient temperature (c) : 55

Product size and weight

Width (mm) : 17,6

Height (mm) : 90

Depth (mm) : 89,5

Weight (kg) : 0,1

Isolation mode: optocoupler isolation between analog output part and PLC driver power and analog output part using DCIDC converter isolation (no isolation between channels)

Power Supply: DC5V 15mA(PLC internal power supply))DC24V+20%-15% 150mA/DC24V(external power supply through the terminal)

Input/output

Output occupancy: 0 points (independent of PLC's maximum input and output points)

Points for PLC PFXsu, FX3UC(corresponding to Ver1.20)PLC need function expansion board

The function of the analog output adapter is to convert the digital signal of the PLC into an analog signal for communication with external devices.

Common analog output adapter models are FX3U-4DA-ADP, FX5-4DA-ADP and so on. The FX3U-4DA-ADP is a Mitsubishi PLC model that converts the PLC's digital signals to analog signals for use in driving external devices such as motors.

Founded in 2014, Xiamen Xiongba E-commerce Co., Ltd. is a global industrial automation supplier known in the industry for maintaining strong pre-certified inventory and regularly solving logistics challenges to provide customers with higher delivery speeds through machine downtime situations. Xiamen Xiongba E-commerce Co., Ltd. specializes in GE GE turbine and excitation control, GE Dolin relays, GE drives, Reliance electric drives and

PLC, Pro-face HMI, Cognex Vision Systems and Woodwood Power Generation, Xiamen Xiongba E-commerce Co., Ltd. entered the market in a different way than many of our competitors, cultivating a mission to understand quite a few product lines, rather than being mediocre by striving to be all of them.
