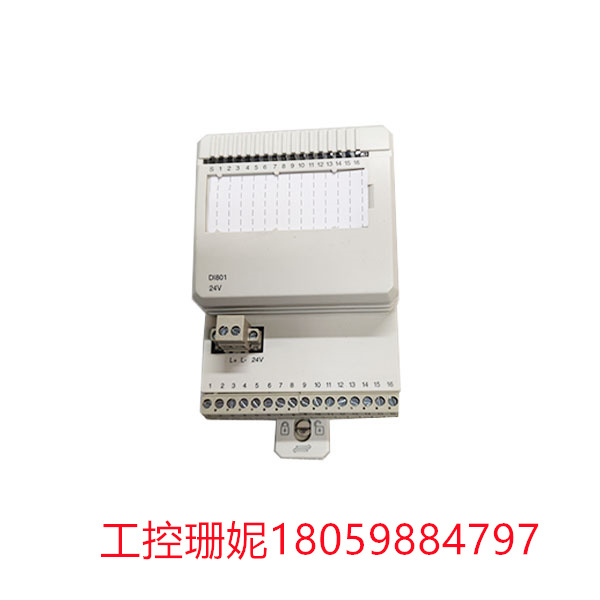

DI801 ABB 16通道24V数字量输入模块

DI801是—款用于S800 l/O的16通道24V数字量输入模块。该模块有16个数字输入。输入电压范围为18至30伏直流电,输入电流为6 mA (24V时)。输入位于—个具有16个通道的隔离组中,第16个通道可用于该组中的电压监控输入。每个输入通道均由限流器件、EMC保护器件、输入状态指示LED和光电隔离栅组成。


联系电话:18059884797

产品详情

DI801 ABB 16通道24V数字量输入模块


编号:3BSEO20508R1

ABB型号名称:DI801型

目录说明:DI801数字输入24V 16 ch

详细描述:电流吸收。

类别

产品”控制系统产品”l/O产品”S800I/O 》s8001/o-模块》DI801数字量输入》DI801数字量输入产品”控制系统”8OOxA 》1/Os " s8o0 1/o " s800 l/O 4.0 》l/O Modules

产品”控制系统”8O0xA l/Os " s8001/o ” s80o 1/O 4.1》l/O Modules产品”控制系统.”80oxA > l/Os ” s800 I/o w s800 l/o 5.0 》I/OModules产品”控制系统”80OxAl/Os ” s800 1/o  s800 1/O 5.1 》 l/O Modules显示全部....

附加信息介质描述:电流吸收。

产品类型:l-O_Module

订购

海关编码:853890--适合单独或主要与品目85.35、85.36或85.37的设备一起使用的部件。

海关税则号:85389o99


尺寸

产品净深度/长度:58.5毫米

产品净高:102毫米

产品净宽:86.1毫米

产品净重:0.24干克

专门的

通道类型:地

输入通道数:16

输出通道数:不适用

环境的

RoHS状态:

遵循欧盟指令2011/65/EU

wWEEE类别:5.小型设备(外部尺寸不超过50厘米)

电池数量:0

DI801是—款用于S800 l/O的16通道24V数字量输入模块。该模块有16个数字输入。输入电压范围为18至30伏直流电,输入电流为6 mA (24V时)。输入位于—个具有16个通道的隔离组中,第16个通道可用于该组中的电压监控输入。每个输入通道均由限流器件、EMC保护器件、输入状态指示LED和光电隔离栅组成。


常见问题

无论您对库存,价格,故障排除还是其他方面有任何疑问,我们都能满足您的需求。请致电我们,填写我们的表格,或向我们发送电子邮件–任何适合您的方式。期待您的回音!

问:你们的商品是新的和原创的吗?

答:是的,它们是新的和原创的问:您的交货时间如何?

答:我们有很多库存商品,3-5天您将收到它。问:你们提供保修吗?

答:是的,我们为所有剩余的部件提供1年保修。问:你们提供保修吗?

答:是的,我们为所有剩余的部件提供1年保修。问:您可以接受哪些付款方式?

答:通常我们在中国大陆接受T/T和人民币转账

DI801 ABB 16通道24V数字量输入模块


Number :3BSEO20508R1

ABB model name :DI801

DI801 Digital input 24V 16 ch

Detailed description: Current absorption.

category

Product "Control System Product" l/ o Product "S800I/O" s8001/ O-Module "DI801 digital input" DI801 digital input product "Control System" 8OOxA "1/Os" s8o0 1/o "s800 l/O 4.0" l/O Modules

Product Control System 8O0xA l/Os s8001/o s80o 1/O 4.1 l/O Modules 80oxA > l/Os "s800 I/o w s800 l/o 5.0" I/OModules "Control System" 80OxAl/Os "s800 1/o s800 1/O 5.1" l/O Modules All....

Additional information Medium description: Current absorption.

Product type :l-O_Module

order

Customs Code :853890- Parts suitable for use alone or mainly with equipment of heading 85.35, 85.36 or 85.37.

Customs Code :85389o99


dimension

Net depth/length :58.5 mm

Product height :102 mm

Product width :86.1 mm

Net weight: 0.24g

technical

Channel type: ground

Input channels :16

Number of output channels: not applicable

environmental

RoHS Status:

Compliance with EU Directive 2011/65/EU

wWEEE Category :5. Small equipment (external size not exceeding 50 cm)

Battery number :0

The DI801 is a 16-channel 24V digital input module for the S800 l/O. The module has 16 digital inputs. The input voltage range is 18 to 30 volts DC, and the input current is 6 mA (at 24V). The inputs are in an isolated group with 16 channels, and the 16th channel can be used for voltage monitoring inputs in the group. Each input channel consists of a current limiting device, an EMC protection device, an input status indicator LED, and an optoelectronic isolation gate.


Q&A

Whether you have any questions about inventory, pricing, troubleshooting or anything else, we can meet your needs. Please call us, fill out our form, or send us an email - whatever works for you. Looking forward to hearing from you!

Q: Are your products new and original?

A: Yes, they are new and original Q: What is your lead time?

A: We have many items in stock and you will receive it in 3-5 days. Q: Do you offer a warranty?

A: Yes, we offer a 1 year warranty on all remaining parts. Q: Do you offer a warranty?

A: Yes, we offer a 1 year warranty on all remaining parts. Q: What payment methods do you accept?
