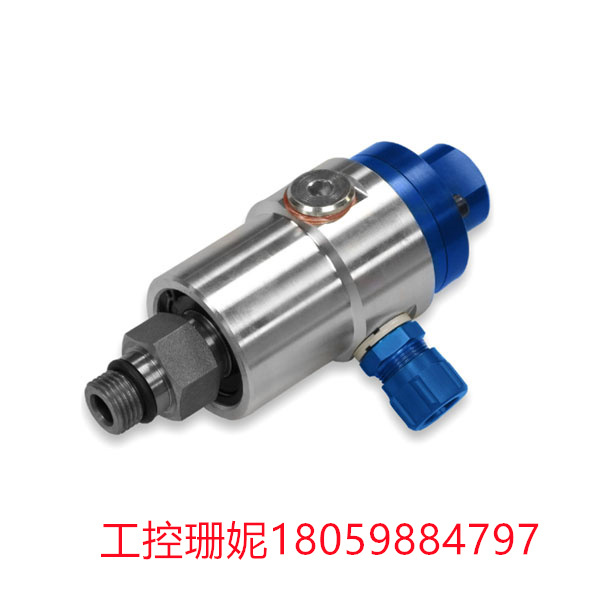

DEUBLIN-904-120-188 DEUBLIN 无填料旋转阀 气体控制

DEUBLIN 904-120-188是一种旋转阀,它是一种无填料旋转阀,具有气密性好、寿命长、调节范围大等优点。

旋转阀是一种广泛应用于各种工业领域的阀门,其优点包括操作简单、结构紧凑、密封性能好等。DEUBLIN 904-120-188旋转阀作为一种无填料旋转阀,具有更高的气密性和更长的使用寿命,特别适合用于高精度气体控制和液体输送的场合。此外,其调节范围广,可以满足不同流量和压力的需求。


联系电话:18059884797

产品详情

DEUBLIN-904-120-188 DEUBLIN 无填料旋转阀 气体控制


订货号:904-120-188

品牌:杜t博林DEUBLIN

材质:不锈钢

型号:904-120-188

接管口径:10 ( mm)

耐压:1 ( MPa)

媒体:MQL、冷却液、空气

转子连接:M16x1.5 LH,17.993毫米飞行员

外壳连接:接线端子G 3/8"-19

空气最大流量:2040升/分钟

空气最大压力:10巴

空气最高温度:71摄氏度

冷却剂最大流量:82升/分钟

冷却剂最大压力:103.4巴

冷却剂最高温度:71摄氏度

MQL型最大流量:2040升/分钟

MQL型最大压力:10巴

MQL型最高温度:71摄氏度


904-120-188

●冷却液和干燥空气的单通道

·获得专利的AutoSenseTM技术可根据介质类型在封闭密封和受控泄漏操作之间自动切换●螺纹转子,安装方便

●全流式设计没有障碍物来捕获切屑或碎屑·迷宫式系统和大型通风口,用于保护滚珠轴承

·由碳化硅制成的平衡机械密封,即使在恶劣的工作条件下也能保持长寿命·阳极氧化铝外壳耐腐蚀

DEUBLIN 904-120-188是一种旋转阀,它是一种无填料旋转阀,具有气密性好、寿命长、调节范围大等优点。

旋转阀是一种广泛应用于各种工业领域的阀门,其优点包括操作简单、结构紧凑、密封性能好等。DEUBLIN 904-120-188旋转阀作为一种无填料旋转阀,具有更高的气密性和更长的使用寿命,特别适合用于高精度气体控制和液体输送的场合。此外,其调节范围广,可以满足不同流量和压力的需求。


作为工业自动化供应商,为多元化的国际客户提供自动化零件和服务。

我们是可靠的工业自动化供应商选择,在客户关系方面表现出色。

如果您在使用网站或我们的产品时遇到任何问题,请写下您的意见或建议,我们会尽快回答您的问题!

感谢您的关注!


Order number: 904-120-188

Brand: Du t Bolin DEUBLIN

Material: Stainless steel

Model: 904-120-188

Nozzle diameter: 10 (mm)

Withstand pressure: 1 (MPa)

Media: MQL, coolant, air

Rotor connection: M16x1.5 LH, 17.993mm pilot

Shell connection: Terminal G 3/8"-19

Maximum air flow: 2040 L/min

Maximum air pressure: 10 bar

Maximum air temperature :71 degrees Celsius

Maximum coolant flow rate :82 L/min

Maximum coolant pressure :103.4 bar

Maximum coolant temperature :71 degrees Celsius

MQL Maximum flow :2040 L/min

MQL type maximum pressure :10 bar

MQL maximum temperature :71 degrees Celsius


904-120-188

● Single channel for coolant and dry air

Patented AutoSenseTM technology automatically switches between closed seals and controlled leakage operation depending on the type of media. Threaded rotor for easy installation

● Full-flow design with no obstacles to trap chips or debris · Labyrinth system and large vents for protecting ball bearings

· Balanced mechanical seal made of silicon carbide for long life even under harsh operating conditions · Anodized aluminum housing is resistant to corrosion

DEUBLIN 904-120-188 is a rotary valve, it is a non-packing rotary valve, with good air tightness, long life, large adjustment range and other advantages.

Rotary valve is a kind of valve widely used in various industrial fields, its advantages include simple operation, compact structure, good sealing performance and so on. The DEUBLIN 904-120-188 rotary valve is a packless rotary valve with higher air tightness and longer service life, especially suitable for high-precision gas control and liquid transfer applications. In addition, its wide adjustment range can meet the needs of different flows and pressures.
