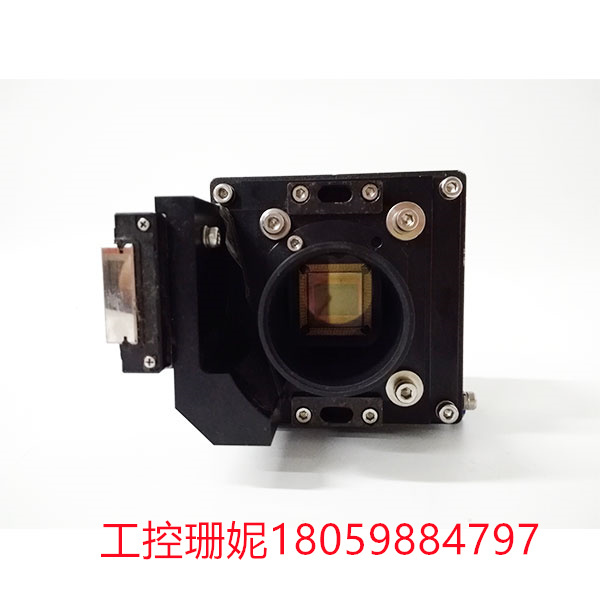

A404k BASLER 工业相机 精确的图像分析

BASLER A404K是德国BASLER公司生产的工业相机，通常用于各种工业视觉和图像处理应用。这些相机专门设计用于高性能、高分辨率和精确的图像捕捉和分析任务。以下是—些可能与BASLER A404K工业相机相关的信息:

1.型号和规格:A404K是该工业相机的型号，通常有特定的规格和配置，如分辨率、帧速率、接口等。

2.分辨率:这种类型的工业相机通常提供不同的分辨率选项，以满足不同应用的需求。高分辨率相机通常用于需要精确图像分析的应用。

3.帧速率:帧速率表示相机每秒捕捉图像的数量。高帧速率的相机适用于需要实时图像捕捉的应用，如机器视觉和运动控制。

4.接口:工业相机通常提供各种接口选项，如GigE Vision、USB3 Vision、CameraLink 等，以便与不同的图像采集系统和计算机连接。

5.图像传感器:这些相机通常使用不同类型的图像传感器，如CCD(电荷耦合器件)或 CMOS(互补金属氧化物半导体)传感器，根据应用需求选择。

6.光学适配:相机通常需要与适当的镜头和光源组合使用，以确保图像质量和适应特定场景。

7.工业视觉应用:BASLERA404K工业相机可以用于机器视觉、质量控制、自动化生产、医学成像、科学研究等各种应用领域。

8.可编程性:—些工业相机具有可编程功能，以便用户可以自定义图像处理和分析算法，以满足特定应用需求。

产品详情:A404K Basler A400系列工业相机提供一个高性能满足摄像机

A400系列的目标是提供一个高性能满足摄像机中最严格的要求分辨率、速度和图像质量。这个目标实现了通过使用一个先进的四百万像素传感器和一个独特的相机后端，一个组合，提供了辉煌的图像质量和快速预处理的可能性。确保可靠、一致质量，A40O变种是100%质量检查和校准。所有的这使得A400相机非常灵活和可靠的工具许多应用程序。

所有A400相机都包含一个高质量的CMOS传感器2352X1726活动像素。而最常见的CCD的速度传感器限制为15 fps, A400变体提供了更好的最大帧率:

·A402k/kc - 24 fps全分辨率·A403k/kc -全分辨率48帧/秒·A404k/kc - 96 fps全分辨率

·A405k/kc -167fps在2320x 1726·A406k/kc - 209fps在2320 x 1726

A400系列以卓越的性能树立了新的标崔以及与CCD相机相媲美的图像质星。非凡的图像质星来自先进的CMOS传感器的使用以及精密的电子设计。三个不同的图像增强功能可以进—步提高图像质量:

·柱阴影校正，消除固定模式噪音

·DSNU阴影校正，消除暗信号不均匀性·PRNU阴影影校正消除照片响应。

A404k BASLER 工业相机 精确的图像分析

The BASLER A404K is an industrial camera produced by the German company BASLER that is commonly used in a variety of industrial vision and image processing applications. These cameras are specifically designed for high-performance, high-resolution and precise image capture and analysis tasks. Here is some information that may be relevant to the BASLER A404K industrial camera:

1. Model and specifications :A404K is the model of this industrial camera, which usually has specific specifications and configurations, such as resolution, frame rate, interface, etc.

2. Resolution: This type of industrial camera usually offers different resolution options to meet the needs of different applications. High-resolution cameras are often used for applications that require accurate image analysis.

3. Frame rate: Frame rate represents the number of images captured by the camera per second. Cameras with high frame rates are suitable for applications that require real-time image capture, such as machine vision and motion control.

4. Interface: Industrial cameras usually provide various interface options, such as GigE Vision, USB3 Vision, CameraLink, etc., in order to connect with different image acquisition systems and computers.

5. Image sensors: These cameras usually use different types of image sensors, such as CCD(charge coupled device) or CMOS(complementary metal oxide semiconductor) sensors, selected according to the application needs.

6. Optical adaptation: Cameras usually need to be used in combination with the appropriate lens and light source to ensure image quality and adapt to the specific scene.

7. Industrial vision applications :BASLERA404K industrial cameras can be used in various application fields such as machine vision, quality control, automated production, medical imaging, scientific research, etc.

8. Programmability: - Some industrial cameras have programmable features so that users can customize image processing and analysis algorithms to meet specific application needs.

Product Details :A404K Basler A400 Series Industrial cameras offer a high performance meet the camera

The A400 series aims to deliver a high performance camera that meets the most stringent requirements for resolution, speed and image quality. This goal was achieved by using an advanced four-megapixel sensor and a unique camera backend, a combination that offers brilliant image quality and the possibility of fast preprocessing. To ensure reliable, consistent quality, the A40O variant is 100% quality checked and calibrated. All of this makes the A400 camera a very flexible and reliable tool for many applications.

All A400 cameras include a high quality CMOS sensor with 2352X1726 active pixels. While the speed sensor of the most common CCDS is limited to 15 fps, the A400 variant offers a better maximum frame rate:

·A402k/ kc-24 fps Full resolution ·A403k/ KC-48 fps Full resolution ·A404k/ kc-96 FPS full resolution

·A405k/ kc-167fps at 2320x 1726·A406k/ kc-209fps at 2320x 1726

The A400 series sets the new standard with outstanding performance and image quality comparable to CCD cameras. The extraordinary image quality comes from the use of advanced CMOS sensors and sophisticated electronic design. Three different image enhancement features can further improve image quality:

· Column shadow correction to eliminate fixed mode noise

·DSNU shadow correction to eliminate dark signal unevenness ·PRNU shadow correction to eliminate photo response.
