产品描述

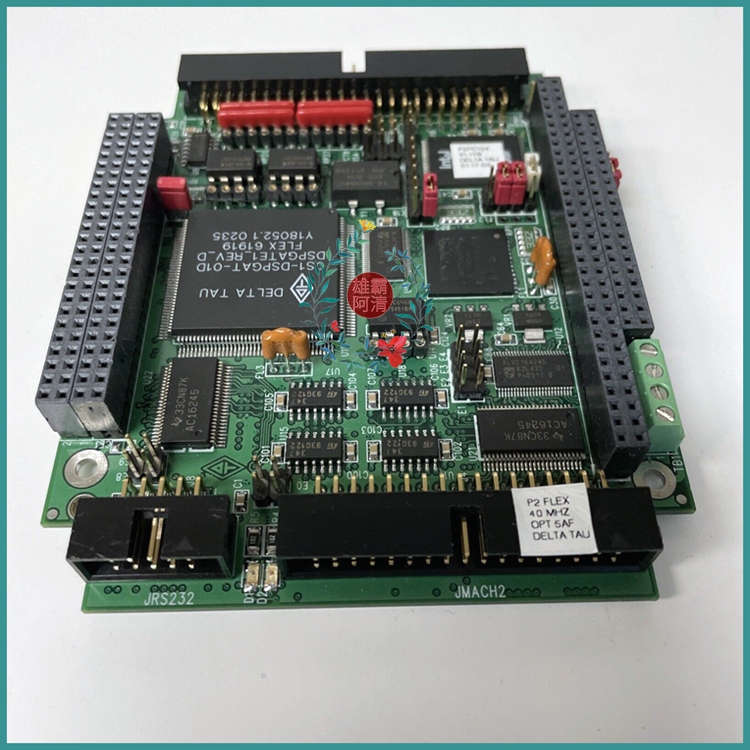

603674-102是由Delta Tau开发的插补器附件板。 该板旨在与 PMAC 2 系列的 PMAC 104 A-PC/2 接口。 该单元是正弦波输入插值器，可将控制PMAC系统与模拟正交编码器连接。两个输入馈送正弦编码器，正弦编码器转换为PMAC可消化的位置数据。它能够在单个正弦波周期内产生 4，096 个步长。 正弦周期输入能够支持1.4 MHz的频率，提供每秒5.73亿步的系统速度。 该附件安装在 PMAC 2A-PC/104 顶部或附加附件板上。

制造商提供了应遵守的安全和安装参数的完整列表，以防止设备损坏。 电路板的电路很敏感，在处理附件时需要小心。只有经过安装此类机器培训的人员才应被允许操作此板。在安装603674-102此板之前，请务必释放手上的所有静态能量。603674-102的电路如果与这种电接触，可能会被腐蚀。安装此板时，应将其安装在安全的外壳中。电气柜和计算机是PMAC系统的安全安装地点。操作设施中的条件会影响系统的输出，应进行监控。

603674-102 is an interpolator accessory board developed by Delta Tau. This board is designed to interface with the PMAC 104 A-PC/2 of the PMAC 2 series. This unit is a sine wave input interpolator that can connect the control PMAC system with an analog orthogonal encoder. Two inputs feed the sine encoder, which converts it into PMAC digestible position data. It can generate 4096 steps in a single sine wave cycle. The sine cycle input can support a frequency of 1.4 MHz, providing a system speed of 573 million steps per second. This accessory is installed on the top of PMAC 2A-PC/104 or on an additional accessory board.

The manufacturer provides a complete list of safety and installation parameters to be followed to prevent equipment damage. The circuit board's circuit is very sensitive and requires caution when handling accessories. Only personnel trained to install such machines should be allowed to operate this board. Before installing the 603674-102 board, be sure to release all static energy on your hand. If the circuit of 603674-102 is in contact with this type of electricity, it may be corroded. When installing this board, it should be installed in a safe enclosure. Electrical cabinets and computers are safe installation locations for PMAC systems. The conditions in the operating facilities can affect the output of the system and should be monitored.
