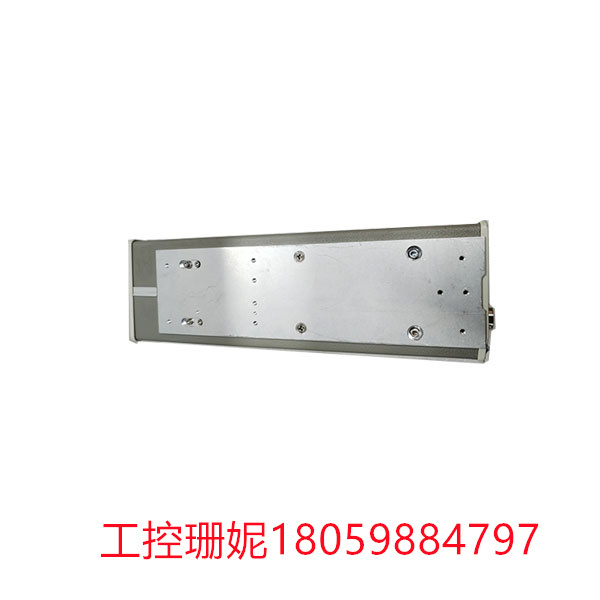

5517B Keysight 气体激光器

型号：5517B

品牌：Keysight

线性光学元件的最大速度:500 mm/s

·参考频率:1.9至2.4 MHz;选件H10:2.2至2.4 MHz·重量:3.4千克(7.5磅)

预热时间:90分钟

激光束

·直径:6毫米

·最小输出功率:120 uw·最大输出功率:1 mw·光束高度:79.5±1.0 mm

输入功率要求

+15 v士o.3 v，最大值为3.0 A-15 V士 o.3 v，最大值为0.3A

Keysight 5517B的主要用途包括基于VME和PC的激光干涉仪系统，这些系统运动速度较慢，

是德科技的5517B是一款功率为180 uW至1 mW、波长为633 nm、输出功率(CW) 180 pW至1 mW、工作温度为0至40°℃的激光器。

配置:带控制单元的激光头(集成)

类型:激光系统

科技:气体激光

操作模式:连续激光

权力:180 uw至1 mw

波长:633纳米

可调谐:不

光纤耦合:不

激光颜色:红

输出功率(连续波):180 uW 至1 mw

增益介质型:气体激光

预热时间:10分钟

激光腔材料:氢氖

激光增益介质:中性原子气体激光器

应用行业:科学研究，医学

激光类:第⒉类

电源:-15至0.3V(最大值为2.5A), -15至0.3V至0.02A最大值

激光器按工作物质可分为4种。①固体激光器:它的工作物质是固体。常用的有红宝石激光器、掺钦的记铝石榴石激光器(即YAG激光器)和铵玻璃激光器等。它们的结构大致相同，特点是小而坚固、功率高，钦玻璃激光器是脉冲输出功率最高的器件，已达到数十兆瓦。②气体激光器:它的工作物质为气体。现已有各种气体原子、离子、金属蒸气、气体分子激光器。常用的有二氧化碳激光器、氦氖激光器和一氧化碳激光器，其形状如普通放电管，特点是输出稳定，单色性好,寿命长,但功率较小，转换效率较低。③液体激光器:它又可分为螫合物激光器、无机液体激光器和有机染料激光器，其中最重要的是有机染料激光器，它的最大特点是波长连续可调。④半导体激光器:它是较年轻的一种激光器，其中较成熟的是砷化家激光器。特点是效率高、体积小、重量轻、结构简单，适宜于在飞机、军舰、坦克上以及步兵随身携带。可制成测距仪和瞄准器。但输出功率较小、定向性较差、受环境温度影响较大。

提供周到的服务和完整的零件

(1)在24小时内及时回复您;

(2)100%质量保证，1年保修;

(3)很好的服务，合理的价格;

(4)已行至多年，有良好的信誉;

(5)我们将在付款后3个工作日内发货;

(6)所有货物在装运前都要经过检测;

(7)包装在专业防静电袋中;

(8)我们可以通过DHL / UPS / EMS/联邦快递运送给您...请直接与我们联系，我们将根据您的要求发货。

5517B Keysight 气体激光器

Model: 5517B

Brand: Keysight

Maximum speed of linear optical components :500 mm/s

· Reference frequency: 1.9-2.4mhz; Optional H10:2.2 to 2.4 MHz· Weight :3.4 kg (7.5 lb)

Preheating time :90 minutes

Laser beam

· Diameter :6 mm

· Minimum output power :120 uw· Maximum output power :1 mw· Beam height :79.5± 1.0mm

Input power requirement

+15 v Oz.3 v with A maximum value of 3.0 A-15 V Oz.3 v with a maximum value of 0.3A

The main uses of 5517B Keysight include VME and PC-based laser interferometer systems that move at slower speeds,

Keysight's 5517B is a laser with a power of 180 uW to 1 mW, a wavelength of 633 nm, an output power (CW) of 180 pW to 1 mW, and an operating temperature of 0 to 40° C.

Configuration: Laser head with control unit (integrated)

Type: Laser system

Technology: Gas laser

Operation mode: continuous laser

Power :180 uw to 1 mw

Wavelength :633 nm

Tunable: No

Fiber coupling: No

Laser color: Red

Output power (CW):180 uW to 1 mw

Gain medium type: gas laser

Preheating time :10 minutes

Laser cavity material: hydrogen neon

Laser gain medium: neutral atomic gas laser

Applied industries: Scientific research, Medicine

Laser class: The ⒉ class

Power supply :-15 to 0.3V(Max. 2.5A), -15 to 0.3V to 0.02A Max

Lasers can be divided into four types according to the working substance. ① Solid state laser: its working substance is solid. Commonly used ruby lasers, doped aluminum garnet lasers (that is, YAG lasers) and ammonium glass lasers. Their structure is roughly the same, characterized by small and strong, high power, chin glass laser is the highest pulse output power of the device, has reached tens of megawatts. ② Gas laser: its working substance is gas. Now there are all kinds of gas atoms, ions, metal vapor, gas molecule laser. Commonly used carbon dioxide laser, helium neon laser and carbon monoxide laser, its shape such as ordinary discharge tube, is characterized by stable output, good monochromatism, long life, but the power is small, low conversion efficiency. Liquid laser: it can be divided into chelate laser, inorganic liquid laser and organic dye laser, of which the most important is the organic dye laser, its biggest feature is the continuous adjustable wavelength. Semiconductor laser: it is a younger kind of laser, of which the more mature is the arsenide laser. It is characterized by high efficiency, small size, light weight and simple structure, and is suitable for carrying on aircraft, warships, tanks and infantry. Can be made into rangefinder and sight. However, the output power is small, the orientation is poor, and the ambient temperature is greatly affected.

Provide attentive service and complete parts

(1) Reply to you within 24 hours;

(2)100% quality guarantee, 1 year warranty;

(3) Good service, reasonable price;

(4) has been in business for many years and has a good reputation;

(5) We will deliver the goods within 3 working days after payment;

(6) All goods are tested before shipment;

(7) Packed in professional anti-static bag;

(8) We can ship to you via DHL/UPS/EMS/ fedex... Please contact us directly and we will deliver the goods according to your requirements.
