1336-BDB-SP30C Rockwell 额定驱动器备件

描述:1336-BDB-SP30C备件套件是艾伦-布拉德利备件套件,其中包含栅极驱动PCB。它是100马力额定驱动器的备件,可在460伏交流输入电压下运行。1336-BDB-SP30C备件套件已过时,已被1336-BDB-SP30D备件套件取代。具体来说,1336-BDB-SP30C备件套件与Allen-Bradley'100 PLUS、PLUS ⅡI、Force和IMPACT驱动器系列的1336马力框架D驱动器兼容。



联系电话:18059884797

产品详情

1336-BDB-SP30C Rockwell  额定驱动器备件


产品参数

型号:1336-BDB-SP30C AB电源电压:380-460V AC额定功率:30KW

最大输出电流:60A最大输出频率:400Hz控制方式:矢量控制



描述:1336-BDB-SP30C备件套件是艾伦-布拉德利备件套件,其中包含栅极驱动

PCB。它是100马力额定驱动器的备件,可在460伏交流输入电压下运行。1336-BDB-SP30C备件套件已过时,已被1336-BDB-SP30D备件套件取代。具体来说,1336-BDB-SP30C备件套件与Allen-Bradley'100 PLUS、PLUS ⅡI、Force和IMPACT驱动器系列的1336马力框架D驱动器兼容。

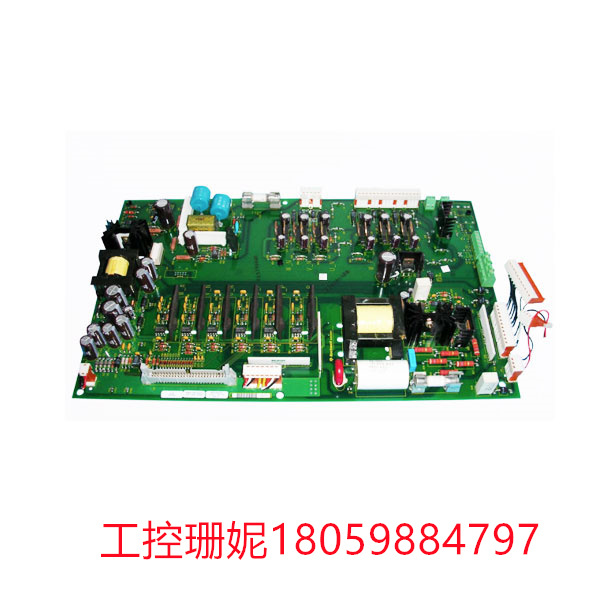

1336-BDB-SP3C栅极驱动PCB(印刷电路板)是Alen-Bradley'1336变频驱动器的备件模块。PCB也由Allen-Bradley设计和制造。它与1336 Pluis、力、冲击和其他驱动器系列完全兼容。PCB易于安装,尺寸紧凑PC日的额定电压为460伏交流电,额定功率为15马力.此栅极驱动PCB放置在主机136驱动器的主控制板附近。1336变频器提供扭矩和速度调节功能。该驱动器具有电机控制算法,可在低速时提供出色的扭矩调节。该驱动器配备了使用再生能星的IGBT制动系统,无需昂贵的斩波器电路即可运行。1336-BDB-SP3C PCB可用作主机驱动器的功率放大单元。它将低功率输入转换为高功率输入,可以传输到驱动器的不同组件。

1336-BDB-SP3C PCB符合满足EMC标准所需的所有规格。该PC日的最低和最高工作温度分别为0和50摄氏度这种高性佳能电源模块可以使用胱线连接器进行连接。PCB

具有连接到SCR栅极的不同逻辑电平。1336-BDB-SP3C PCB用作功率放大器单元。在更换PCB的过程中,操作员必须使用接地腕带。应避免静电放电,以保护栅极驱动PCB的敏感部分.


质量保证

我们的大量库存包含当前和过时的产品。对于所有过时和遗留的自动化,我们的内部团队在发货前测试每个部件,销售的所有零件实际上都在库存,这使得紧

急运输成为解决紧急停机情况的简单解决方案。

1336-BDB-SP30C Rockwell  额定驱动器备件


Product parameter

Model :1336-BDB-SP30C AB Power Supply voltage :380-460V AC Rated power :30KW

Maximum output current :60A Maximum output frequency :400Hz Control mode: vector control



Description: The 1336-BDB-SP30C spare parts Kit is an Allen-Bradley spare parts kit that includes a gate drive

The PCB. It is a spare for a 100 HP rated drive that can operate at 460 volts AC input. The 1336-BDB-SP30C spare parts kit is obsolete and has been replaced by the 1336-BDB-SP30D spare parts kit. Specifically, the 1336-BDB-SP30C spare parts kit is compatible with 1336 HP frame D drives from the Allen-Bradley'100 PLUS, Plusⅱi, Force and IMPACT drive families.


The 1336-BDB-SP3C gate Drive PCB(printed circuit board) is a spare part module for the Alen-Bradley'1336 variable frequency driver. PCBS are also designed and manufactured by Allen-Bradley. It is fully compatible with the 1336 Pluis, Force, impact and other drive families. The PCB is easy to install and compact in size. The rated voltage is 460 volts AC and the rated power is 15 HP. This gate drive PCB is placed near the main control board of the host 136 driver. The 1336 inverter provides torque and speed regulation. The drive has a motor control algorithm that provides excellent torque regulation at low speeds. The driver is equipped with an IGBT braking system using regenerative energy stars and can operate without expensive chopper circuitry. The 1336-BDB-SP3C PCB can be used as a power amplification unit for host drivers. It converts low power inputs into high power inputs that can be transmitted to different components of the drive.

The 1336-BDB-SP3C PCB meets all specifications required to meet EMC standards. The PC daily minimum and maximum operating temperatures are 0 and 50 degrees Celsius, respectively. This high performance Canon power module can be connected using a cysteine connector. PCB

Has different logic levels connected to the SCR gate. 1336-BDB-SP3C PCB is used as a power amplifier unit. During the PCB replacement process, the operator must use a grounding wrist strap. Electrostatic discharge should be avoided to protect sensitive parts of the gate drive PCB.


Quality assurance

Our extensive inventory consists of current and outdated products. For all obsolete and legacy automation, our in-house team tests every part before shipping, and all parts sold are actually in stock, which makes it tight

Urgent transportation becomes a simple solution to solve the emergency shutdown situation.
