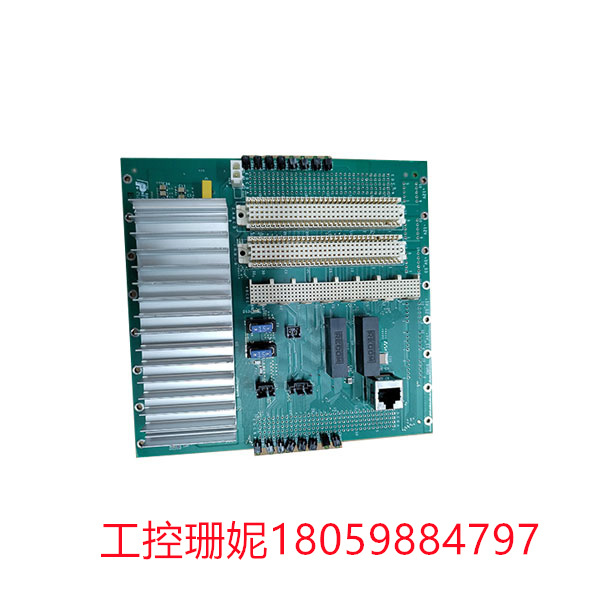

810-800081-022 LAM 电路板卡

型号：810-800081-022

品牌： LAM

810-800081-022VME总线是一种通用的计算机总线，结合了Motorola公司Versa总线的电气标准和在欧洲建立的Eurocard标准的机械形状因子，是一种。它定义了一个在紧密耦合(closely coupled）)硬件构架中可进行互连数据处理、数据存储和连接外围控制器件的系统。经过多年的改造升级，VME系统已经发展的非常完善，围绕其开发的产品遍及了工业控制、军用系统、航空航天、交通运输和医疗等领域。

810-800081-022VME的数据传输机制是异步的，有多个总线周期，地址宽度是16、24、32、40或54位，数据线路的宽度是8、16、24、32、64位，系统可以动态的选择它们。它的数据传输方式为异步方式，因此只受制于信号交换协议，而不依赖于系统时钟;其数据传输速率为0~5QOMb/s;此外，还有UnalignedData传输能力，误差纠正能力和自我诊断能力，用户可以定义/O端口;其配有21个插卡插槽和多个背板，在军事应用中可以使用传导冷却模块。

因为是两种标准的结合，那么VME系统也可以被看作是两个部分。一个部分是它的机械构架，此部分决定着VMEbus.系统背板、前置面板和嵌入板的尺寸大小;而令—部分则是功能构架，它定义了系统的运转流程。

810-800081-022RAM是一种高密度、低功耗的半导体存储器，可用锂电池作为备用电源，一旦断电就可通过锂电池供电，保持RAM中的内容。

输入输出接口是PLC与工业现场控制或检测元件和执行元件连接的接口电路。PLC的输入接口有直流输入、交流输入、交直流输入等类型;输出接口有晶体管输出、晶闸管输出和继电器输出等类型。晶体管和晶闸管输出为无触点输出型电路，晶体管输出型用于高频小功率负载、晶闸管输出型用于高频大功率负载;继电器输出为有触点输出型电路，用于低频负载。罗克韦尔自动化近日推出Allen-Bradley@ HiLINE 80OTM智能低压动力中心。可为客户提供出厂即用、节能高效和高性价比的电机控制及低压配电解决方案，满足企业各类应用需求。作为智能制造的引领者，罗克韦尔自动化将SEEE(安全、节能、环保、高效）可持续发展观全面贯彻于智能制造，聚焦企业管理、服务、设备和底层硬件及基础数据，以IT/OT融合创新的数字化解决方案为各行业深度赋能，推动中国制造业高质量发展。针对中国市场需求创新推出的智能运维Rocki解决方案以工业物联网、人工智能、AR/VR等创新技术为支撑，面向未来的数字化转型平台全面覆盖云服务的SaaS、PaaS.laaS三层架构，具备开放兼容、可持续拓展的特性，支持企业自主控制和开发，实现持续改善。全新智能低压动力中心HiLINE 80OTM作为laaS层重要组成部分全面支持动力系统操控、数据采集及监视、能效管理及高效运维。

810-800081-022 LAM 电路板卡

Model: 810-800081-022

Brand: LAM

The 810-800081-022VME bus is a general-purpose computer bus that combines the electrical standard of Motorola's Versa bus with the mechanical form factor of the Eurocard standard established in Europe. It defines a system for interconnecting data processing, data storage, and peripheral control devices in a closely coupled hardware architecture. After years of transformation and upgrading, the VME system has developed very well, and the products developed around it have covered the fields of industrial control, military systems, aerospace, transportation and medical treatment.

The 810-800081-022VME data transmission mechanism is asynchronous, has multiple bus cycles, the address width is 16, 24, 32, 40 or 54 bits, the data line width is 8, 16, 24, 32, 64 bits, the system can dynamically select them. Its data transmission mode is asynchronous, so it is only subject to the signal exchange protocol, and does not depend on the system clock. Its data transmission rate is 0~5QOMb/s; In addition, there is UnalignedData transmission ability, error correction ability, and self-diagnosis ability, users can define /O ports; It is equipped with 21 card slots and multiple backplanes to enable the use of conductive cooling modules in military applications.

Since it is a combination of the two standards, the VME system can also be seen as two parts. One part is its mechanical frame, which determines the size of the backplane, front panel and insert plate of the VMEbus system; The order - part is the functional architecture, which defines the operation flow of the system.

810-800081-022RAM is a high-density, low-power semiconductor memory that uses a lithium battery as a backup power source and can be powered by the lithium battery in case of power failure to maintain the contents of the RAM.

The input/output interface is the interface circuit connecting the PLC with the industrial field control or detection components and executive components. PLC input interface has DC input, AC input, AC-DC input and other types; The output interface includes transistor output, thyristor output and relay output. Transistor and thyristor outputs are contactless output circuits, transistor output is used for high frequency low power load, and thyristor output is used for high frequency high power load. The relay output is a contact output circuit for low frequency loads. Rockwell Automation recently introduced the Allen-Bradle@Hiline 80OTM Smart Low-voltage Power Center. It can provide customers with out-of-factory, energy-saving, efficient and cost-effective motor control and low-voltage power distribution solutions to meet the needs of various applications. As a leader in intelligent manufacturing, Rockwell Automation fully implements the sustainable development concept of SEEE(safety, energy saving, environmental protection, and efficiency) in intelligent manufacturing, focusing on enterprise management, services, equipment and underlying hardware and basic data, deeply empowering various industries with IT/OT integrated and innovative digital solutions, and promoting the high-quality development of China's manufacturing industry. The intelligent operation and maintenance Rocki solution launched in response to the demand of the Chinese market is supported by innovative technologies such as industrial Internet of Things, artificial intelligence, AR/VR, and the future-oriented digital transformation platform fully covers the three-layer architecture of SaaS and PaaS.laaS cloud services, with the characteristics of open, compatible and sustainable expansion, supporting the independent control and development of enterprises. Achieve continuous improvement. The new intelligent low-voltage power center HiLINE 80OTM is an important part of the laaS layer to fully support power system control, data acquisition and monitoring, energy efficiency management and efficient operation and maintenance.
