57C431 RELIANCE 处理器模块

部件号:57C431

制造商:信实电气

货号:57C431RE

系列:自动最大PLC

信实电气将57C431创建为处理器模块。该处理器很有可能是由Baldor Reliance和Asea Brown Boveri出售的，具体取决于其生产年份。在AX Control，我们尽e-切努力保持此商品的库存，即使原始制造商不再维护它。

57C431的面板上有几个重要的东西。它有两个RS-232母连接端口。它们标记为 PROGRAMMER/PORT B和PORTA。还有两种不同类型的LED警告灯标记为故障代码。一组是标记为 BATOK和OK的绿色LED。另一组是一对标记为7st和1nd的2段式LED。这些是警告指示器，当检测到任何类型的设备故障时，它们将读取不同的错误代码。

此模块通常分配给特定的AutoMax存储机架。它可以使用母卡插槽连接到机架的底板。插入后，您可以使用机架和模块上的螺钉和支架将其固定。

此模块对它可以

放置在存储架中的位置有限制。它只能进入插槽0-4。如果机架上安装了多个处理器，则处理器必须占用插槽1，否则必须保持打开状态。没有其他东西可以进入那个插槽。此外，如果使用多个处理器，则不能将此模块放置在插槽0中。该插槽保留给必要的通用内存模块。

57C431的最新软件是什么?

57C431使用ReSource AutoMax编程执行软件。57C431的最新软件是软件型号57C397。

处理器模块是计算机中央处理器的简称，是指安装于基板上的处理器芯片。

处理器模块按外形尺寸可分为：657723mm、15.10x15.40x4.60mm、15.80x15.90x8.40mm等。

处理器模块按品牌可分为：西门子、基恩士、通用电气、ge、施耐德等。

CPU的工作原理是接收指令、解码指令、执行指令、结果输出。

CPU是计算机的核心部件，它的主要功能是按照程序给出的指令，控制计算机各部件协调工作，从而完成各种不同的任务。CPU的内部结构主要由寄存器、控制器、运算器和时钟组成。寄存器用来存储数据；运算器进行算术运算和逻辑运算；控制器控制机器各个部件协调工作；时钟提供时钟脉冲。CPU主要由核心部件组成，包括运算器和寄存器等。

57C431 RELIANCE 处理器模块

Part number :57C431

Manufacturer: Reliance Electric

Item number :57C431RE

Series: Automatic maximum PLC

Reliance Electric created the 57C431 as a processor module. The processor was most likely sold by Baldor Reliance and Asea Brown Boveri, depending on its year of production. At AX Control, we make every effort to keep this item in stock, even if the original manufacturer no longer maintains it.

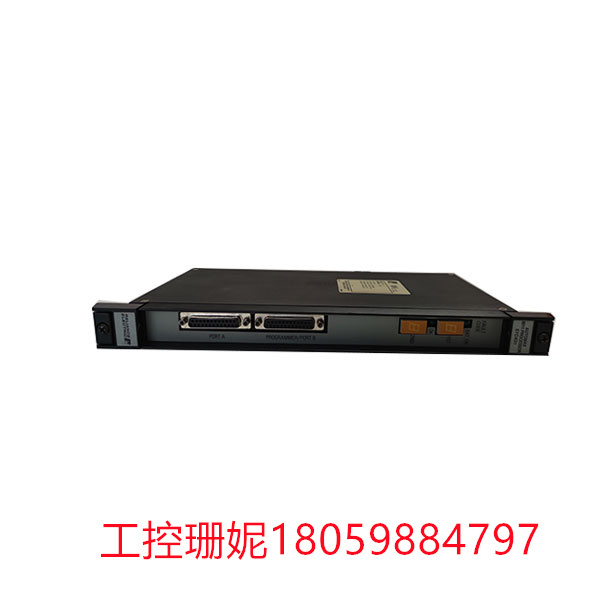

There are several important things on the 57C431 panel. It has two RS-232 female connection ports. They are labeled PROGRAMMER/PORT B and PORTA. There are also two different types of LED warning lights labeled with fault codes. One set is green leds labeled BATOK and OK. The other group is a pair of 2-segment leds labeled 7st and 1nd. These are warning indicators that will read different error codes when any type of device failure is detected.

This module is typically assigned to a specific AutoMax storage rack. It can be connected to the chassis using a female card slot. Once inserted, you can secure it using screws and brackets on the rack and module

This module works on it

There is a limit to where you can place it in the shelf. It can only go into slots 0-4. If more than one processor is installed on the rack, the processor must occupy slot 1, otherwise it must remain open. Nothing else can go into that slot. Also, if you are using multiple processors, you cannot place this module in slot 0. This slot is reserved for the necessary general-purpose memory modules.

What is the latest software for 57C431?

57C431 uses ReSource AutoMax programming to execute software. The latest software for 57C431 is software model 57C397.

The processor module is the abbreviation of the computer central processing unit, which refers to the processor chip installed on the substrate.

The processor module can be divided into 657723mm, 15.10x15.40x4.60mm, 15.80x15.90x8.40mm and so on.

Processor modules can be divided into: Siemens, Keyens, General Electric, ge, Schneider and so on.

The working principle of the CPU is to receive instructions, decode instructions, execute instructions, and output results.

CPU is the core component of the computer, its main function is to control the coordination of the computer components in accordance with the instructions given by the program, so as to complete a variety of different tasks. The internal structure of CPU is mainly composed of register, controller, arithmetic and clock. Registers are used to store data; Arithmetic and logic operations; The controller controls the coordination of all parts of the machine; Clock provides clock pulses. The CPU is mainly composed of core components, including arithmetic and registers.
