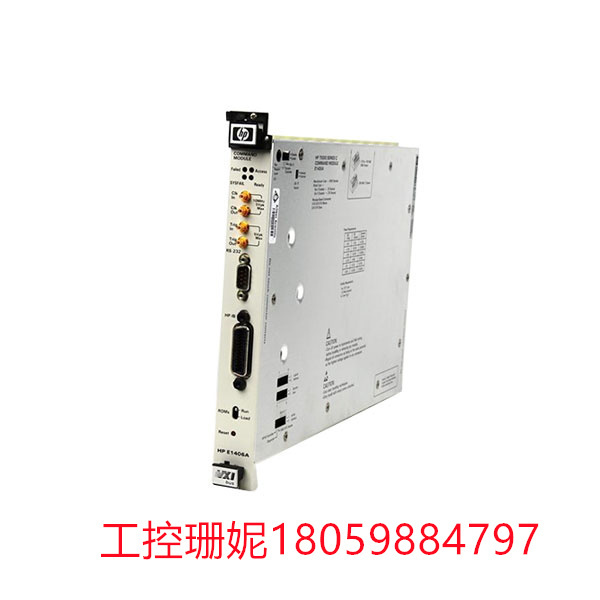

E1406A Keysight 资源管理器

型号：E1406A

品牌：Keysight

·1插槽、C型、基于消息的控制器

.GPIB、RS-232、插槽О和资源管理器。高达2MB RAM

·MXIbus协议支持提供高吞吐量

. Keysight Vlc、VXI安装顾问-快速、简单的设置。基于消息的仪器可支持简单编程

Keysight E1406A命令模块是C型、1插槽、基于消息的VXI控制器，可提供插槽О和资源管理器功能。它可作为VMEbus 系统控制器和GPIB(IEE-488)至VXIbus接口器件使用，轻松地与其它制造商生产的甚于消息的VXI模块进行通信。E14O6A命令模块为可下载的驱动程序提供闪存，可让您借助高级SCPI编程语言对使用寄存器的是德器件进行编程。它还为使用寄存器的仪器转换SCPI命令，从而使VXI器件编程与基于消息的仪器一样简单。

该命令模块还包括用于VXbus扩展的 MXbus资源管理器，可让您在多个主机系统中保持高吞吐量性能。借助模块的灵活触发和时钟连接，您可使VX背板10 MHz时钟与外部 TTL信号同步。

1.多通道控制:E1406A模块支持多通道控制，可以同时控制多个外部设备或执行多个

测试任务。

2高速数据采集:该模块具备高速的数据采集能力，可以实时采集和处理大量的测试数

据。

3.灵活的接口:E1406A模块具备多种接口，包括模拟输入、模拟输出、数字输入/输出和触发信号接口，以满足不同测试需求。

4.可编程性:该模块支持编程控制，可以通过编程接口（如GPIB、LAN、USB等)与计算机或控制系统进行通信和控制。

5.高精度和稳定性:E1406A模块具备高精度的信号采集和控制能力，并具备良好的稳定性和可靠性。

6.易于集成和使用:该模块适用于多种测试平台和系统，并与Keysight的测试和测量软件兼容，可以方便地与其他设备和软件集成和使用。

E1406A Keysight 资源管理器

Model: E1406A

Brand: Keysight

1 slot, type C, message-based controller

GPIB, RS-232, slot controllers, and Resource managers. Up to 2MB RAM

·MXIbus protocol supports high throughput

.Keysight Vlc, VXI Installation Consultant - quick and easy setup. Message-based instruments support simple programming

The Keysight E1406A command module is a Type C, 1-slot, message-based VXI controller that provides slot plugs and resource manager functions. It can be used as a VMEbus system controller and GPIB(IEE-488) to VXIbus interface device, easily communicating with message-more than VXI modules from other manufacturers. The E14O6A command module provides flash memory for downloadable drivers, allowing you to program register-using devices with the help of the advanced SCPI programming language. It also converts SCPI commands for register-using instruments, making VXI device programming as simple as message-based instruments.

The command module also includes the MXbus Explorer for VXbus extension, allowing you to maintain high throughput performance across multiple host systems. With the module's flexible trigger and clock connection, you can synchronize the VX backplane 10 MHz clock with the external TTL signal.

1. Multi-channel control: The E1406A module supports multi-channel control and can control or execute multiple external devices at the same time

Test the task.

2 High-speed data acquisition: The module has high-speed data acquisition capability, which can collect and process a large number of tests in real time

Please.

3. Flexible interface :E1406A module has a variety of interfaces, including analog input, analog output, digital input/output and trigger signal interface, to meet different test needs.

4. Programmability: The module supports programming control, and can communicate and control with the computer or control system through programming interfaces (such as GPIB, LAN, USB, etc.).

5. High precision and stability :E1406A module has high precision signal acquisition and control capabilities, and has good stability and reliability.

6. Easy integration and use: The module is suitable for a variety of test platforms and systems, and is compatible with Keysight's test and measurement software, and can be easily integrated and used with other equipment and software.
