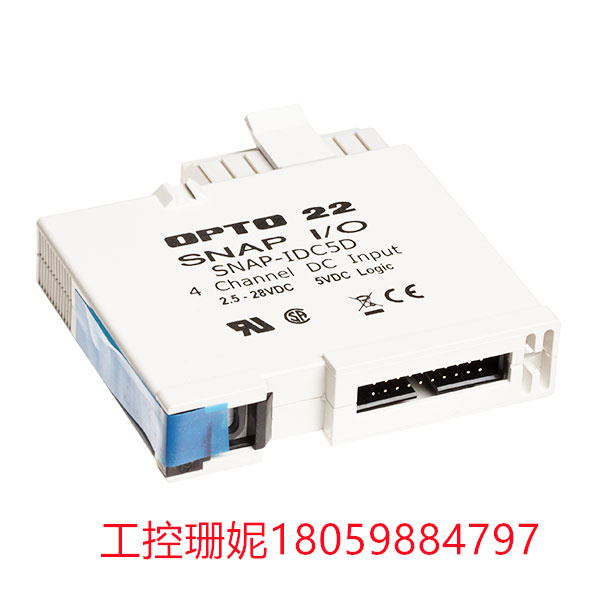

SNAP-IDC5D 输入/输出模块, 4输入按钮或辅助触点等源

制造商： OPTO 22

制造商产品编号: SNAP-IDC5D

库存编号 1335037

SNAP-IDC5D 提供四个 2.5-28 VDC 数字输入通道。每个 来自接近开关、按钮或辅助触点等源的直流电压的开/关状态。该模块具有可拆卸的顶部安装连接器，便于访问现场接线，以及通道特定的 LED，便于故障排除。

作为 SNAP PAC 系统的一部分，该模块安装在带有 SNAP PAC 大脑或机架安装控制器的 SNAP PAC 机架上。模拟、数字和串行 I/O 模块都可以位于同一机架上。这种I/O单元也非常适合基于PC的控制或用作Allen-Bradley Logix PLC系统的智能远程I/O，如ControlLogix，MicroLogix或CompactLogix。

如果您需要工厂互助批准的模块，请参阅 SNAP-IDC5FM。

有关更简单、更快速的接线，请参阅 SNAP TEX 电缆和分线板。

在 SNAP I/O 配置器中构建您的系统。

Opto 22 SNAP I/O数字输入模块SNAP PAC系统的一部分。光学

这些模块的隔离提供4000

瞬态电压(4000v, 1ms)保护敏感的控制电子设备

从工业现场信号。数字输入模块可以感应交流或直流信号。

所有SNAP数字模块均可拆卸顶部安装的连接器提供方便

进入现场布线，所有操作在5VDC控制逻辑。每个数字模块

具有集成通道特定的led方便的故障排除和维护。各模块出厂

经过两次测试，并通过UL和CE认证。在另外，以FM结尾的零件号是

工厂互助批准。SNAP输入模块用于感应

交流或直流电压的开或关状态如接近开关、推等源

按钮或辅助触点。SNAPIDC5G是检测48 VDC的理想选择电信应用程序。的SNAP-IDC5-HT

是专为具有高泄漏电流。

SNAP-IDC5-SW和SNAP-IDC5-SWNC模块对外供电

干接点开关和感测开关

关闭(SNAP-IDC5-SW)或打开

(SNAP-IDC5-SW-NC)。

SNAP-IAC5MA和SNAP-IDC5MA功能

手册/手动关/自动

开关，测试控制的理想选择

应用程序。开关覆盖输入

SNAP-IDC5D 输入/输出模块, 4输入按钮或辅助触点等源

Manufacturer: OPTO 22

Manufacturer's Product number: SNAP-IDC5D

Stock number 1335037

The SNAP-IDC5D offers four 2.5-28 VDC digital input channels. Each channel detects the on/off state of the DC voltage from sources such as proximity switches, buttons, or auxiliary contacts. The module features removable top-mount connectors for easy access to field wiring, as well as channel-specific leds for easy troubleshooting.

As part of the SNAP PAC system, the module is mounted on a SNAP PAC rack with a SNAP PAC brain or rack-mount controller. Analog, digital, and serial I/O modules can all be located on the same rack. This I/O unit is also ideal for PC-based control or as an intelligent remote I/O for Allen-Bradley Logix PLC systems, such as ControlLogix, MicroLogix or CompactLogix.

If you need a factory Mutual approved module, see SNAP-IDC5FM.

For simpler, faster wiring, see SNAP TEX Cables and splitters.

Build your system in the SNAP I/O configurator.

Opto 22 SNAP I/O digital input module

Part of the SNAP PAC system. optics

The isolation of these modules provides 4000

Transient voltage (4000v, 1ms)

Protect sensitive control electronics

Signals from industrial sites. Digital input

The module can sense AC or DC signals.

All SNAP digital modules are removable

Top-mounted connectors for convenience

Enter the field wiring, all operation in 5

VDC control logic. Each digital module

Specific led with integrated channel

Convenient troubleshooting and

Maintenance. Each module is delivered

It has been tested twice and is UL and CE certified. in

Also, the part number ending in FM is

Factory mutual approval.

SNAP input module is used for sensing

On or off state of AC or DC voltage

Such as access switch, push and other sources

Button or auxiliary contact. The SNAPIDC5G is ideal for detecting up to 48 VDC

Telecommunications applications. The SNAP-IDC5-HT

Is designed for having high

Leakage current.

SNAP-IDC5-SW and SNAP-IDC5-SW The NC module provides power for external devices

Dry contact switch and sensing switch

Close (SNAP-IDC5-SW) or open

(SNAP-IDC5-SW-NC).

SNAP-IAC5MA and SNAP-IDC5MA functions

Manual/Manual off/Automatic

Switches, ideal for test control

The application. Switch overlay input
