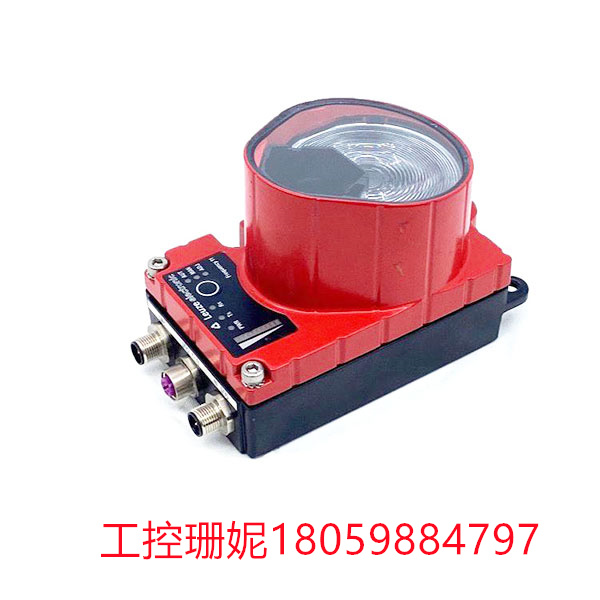

LEUZE-DDLS-200-200.2-50-M12-50125768 光学数据传输器

概述：

LEUZE光学数据传输器

DDLS 200/200.2-60-M12技术参数：

光学数据

工作范围200 ... 200,000 mm

光源LED, 红外线

发射器有效开口角度1 °

电气数据

性能数据

供电电压18 ... 30 V, DC

输入端

数字开关量输入数1 光束

输出

数字开关量输出数1 光束

接口

类型以太网

以太网

传输速度100 Mbit/s Tx, 2 Mbit/s Fx

连接

连接数量2 光束

连接1

类型接头

螺纹规格M12

类型插座

引脚数4 个引脚

编码D-编码

LEUZE光学数据传输器优点：

*，光器件允许通过的光频率高、范围大，也就是所谓的带宽非常大，传输和处理的信息量极大。两束光要发生干涉，必须频率相同，振动方向*和有不变的初始相位差。因此，同一根光导纤维中能并行地传输很多波长不同或波长相同但振动方向不同的光波，它们之间不会发生干涉。有人计算每边长1.5厘米左右的三棱镜，信息通过能力比全世界现有的全部电话电缆的通过能力还大好多倍。

第二，信息传输中畸变和失真小，信息运算速度高。光和电在介质中传播速度都极快，但光和电不同，光计算机是“无”导线计算机，光在光介质中传输不存在寄生电阻、电容和电感问题，光器件又无接地电位差，因此，传输所造成的信息畸变和失真极小，光器件的开关速度比电子器件快得多。光计算机的运算速度在理论上可达每秒千亿次以上，其信息处理速度比电子计算机要快数百万倍。

第三，光传输和转换时，能量消耗极低。尽管集成电路中的电流十分微弱，但由于集成度的提高，功耗仍然是个大问题，对于巨型计算机，问题更为严重。光计算机却不同，除了激光源需要一定的能量以外。光在传输和转换时，能量消耗却极低。

LEUZE-DDLS-200-200.2-50-M12-50125768 光学数据传输器

LEUZE Optical Data Transmitter DDLS 200/200.2-60-M12 Technical parameters:

Optical data

Work range 200... 200,000 mm

Light source LED, infrared

The effective opening Angle of the transmitter is 1 °

Electrical data

Performance data

Supply voltage 18... 30 V, DC

Input end

Digital switching quantity input number 1 beam

exportation

Digital switching quantity output number 1 beam

port

Type Ethernet

Ethernet

The transmission speed is 100 Mbit/s Tx and 2 Mbit/s Fx

join

Connect number 2 beams

Connection 1

Type joint

Thread size M12

Type socket

Pin Number Four pins

Code D- Code

LEUZE Optical Data Transmitter Benefits:

*, the optical device allows a high frequency of light and a large range, that is, the so-called bandwidth is very large, and the amount of information transmitted and processed is very large. For the two beams to interfere, the frequency must be the same, the vibration direction * and there must be a constant initial phase difference. Therefore, the same optical fiber can transmit many light waves with different wavelengths or the same wavelength but different vibration directions in parallel, and there will be no interference between them. It has been calculated that a prism with a length of about 1.5 centimeters on each side can transmit information many times more than all the existing telephone cables in the world.

Second, the distortion and distortion in information transmission are small, and the information operation speed is high. Light and electricity in the medium propagation speed are very fast, but light and electricity are different, optical computer is "no" wire computer, light transmission in the optical medium there is no parasitic resistance, capacitance and inductance problems, optical devices and no ground potential difference, therefore, the transmission caused by information distortion and distortion is very small, optical devices switching speed is much faster than electronic devices. The speed of optical computers can theoretically reach more than 100 billion times per second, and their information processing speed is millions of times faster than that of electronic computers.

Third, the energy consumption is extremely low during light transmission and conversion. Although the current in integrated circuits is very weak, power consumption is still a big problem because of the increase in integration, and the problem is even more serious for supercomputers. Optical computers are different, except that the laser source requires a certain amount of energy. When light is transmitted and converted, the energy consumption is extremely low.

LEUZE-DDLS-200-200.2-50-M12-50125768 光学数据传输器

内容来自www.xbaqingplc.com转载请标注

保修期：12个月！

包装：原包装用纸箱。

交货时间：付款后3天内发货
